Fiber Optic Splitter Box
Created with Pixso. IP65 Aerial Mount Optical Fiber Splice Enclosure for PLC splitter, 16 fibras Caja de terminales
IP65 Aerial Mount Optical Fiber Splice Enclosure for PLC splitter, 16 fibras Caja de terminales
  • Name
  • Name
  • Name
  • Name
  • Name

IP65 Aerial Mount Optical Fiber Splice Enclosure for PLC splitter, 16 fibras Caja de terminales

Brand Name: YINGDA
Model Number: GJS-2022
MOQ: 100pcs
Price: 1.0USD-18.6USD
Payment Terms: Western Union, T/T, L/C, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO, ROHS,SGS
Material:
PP+GF
Size(L*W*H):
290*190*110mm
Max. Capacity:
24 Cores
Max. Splice Tray:
1 Pcs 24 Fiber Tray
Max. Spliter:
Micro Plc Splitter 1:16 Or 2pcs 1:8 Splitter
Cable Port:
4 Round Ports, 16pcs Drop Cable Ports
Cable Diameter:
4round:Φ7-φ18mm, 16pcs: 2*3mm
Waterproof Grade:
IP65
Application:
Wall Mount, Aerial Mount Or Pole Mount
Function:
Splitting, Distribution, Fusion
Packaging Details:
1pc/ inner box, 6pcs/ carton box
Supply Ability:
100000pcs per month
Highlight:

optical distribution box

,

splitter distribution box

Product Description

IP65 Aerial Mount Optical Fiber Splice Enclosure for PLC splitter, 16 fibras Caja de terminales





This splice closure integrates distribution and splitting in one, can realize the direct fusion and branching of the optical cable, and is suitable for the wiring connection in the optical communication equipment. Through the adapter and jumper to bring in the signal to realize optical distribution function, it is also suitable for fiber optic cables and pigtail protective connection; the unique three-tier design of the box body can be used as a fiber splitter or splice box; the flip board can be flipped≥180°,it is more convenient to install the box or maintenance. If remove the board, it can bed as a splice closure to meet different choices.





IP65 Aerial Mount Optical Fiber Splice Enclosure for PLC splitter, 16 fibras Caja de terminales 0  IP65 Aerial Mount Optical Fiber Splice Enclosure for PLC splitter, 16 fibras Caja de terminales 1

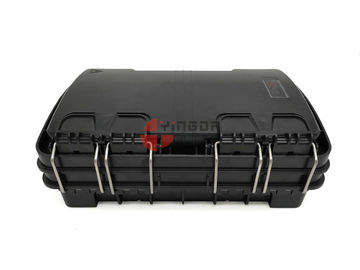

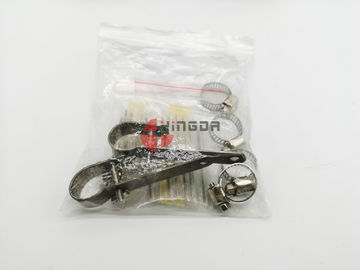

              BOX+ACCESSORIES                                          FLIIP BOARD+ SPLICE TRAY+KEY



IP65 Aerial Mount Optical Fiber Splice Enclosure for PLC splitter, 16 fibras Caja de terminales 2  IP65 Aerial Mount Optical Fiber Splice Enclosure for PLC splitter, 16 fibras Caja de terminales 3

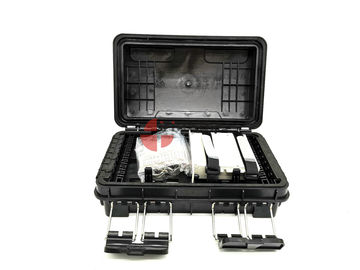

          FLIP BOARD: 90 degreee rorate                            splitter cassette / module for SC adapter



IP65 Aerial Mount Optical Fiber Splice Enclosure for PLC splitter, 16 fibras Caja de terminales 4  IP65 Aerial Mount Optical Fiber Splice Enclosure for PLC splitter, 16 fibras Caja de terminales 5

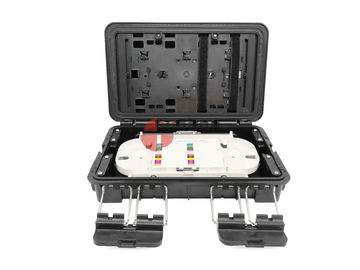

   splice tray with metal sheet fix on the bottom                      2pcs buckle to close the box



IP65 Aerial Mount Optical Fiber Splice Enclosure for PLC splitter, 16 fibras Caja de terminales 6  IP65 Aerial Mount Optical Fiber Splice Enclosure for PLC splitter, 16 fibras Caja de terminales 7

   cable ports: 4round+16pcs drop cable ports; rubber seal for whole box, waterproof, and plastic fix slots for drop cable; metal sheet fix rods for feeder cable.



Specification

Model GJS-2022-S GJS-2022-F
Dimension (mm) 290*190*110 290*190*90
Cable diameter (mm) Φ7-φ18 Φ7-φ18
Cable port 4pcs round ports, 16pcs 2*3mm drop cable ports 2in 2 out
Max. Split ratio 2pcs 1x8 mini splitter /
Max. Splice tray 1pc 3pcs
Max. Fusion splice 24 cores 72 cores




Features

  1. The product is made of high-quality impact resistant plastic and has a standard user interface that can be re-opened.
  2. Can accommodate two 1x8 PLC splitter LGX module or steel tube type;
  3. Anti-ultraviolet,anti- impact and waterproof function;
  4. Unique flip board, flip angle ≥ 180 °, fusion area and distribution area is more obvious, reducing the cable crossing;
  5. Fiber optic cable can go in and out of the box without cut the cable.

Packing list



Main body 1 set
L=400mm bare fiber buffer tube 2 pcs
Hoop / clamp 2 pcs
3x100 nylon tie 26 pcs
Heat shrinkable tube L=60mm 2-72 pcs (configuration on demand)
User manual 1pc




Tags:

splitter distribution box

optical distribution box

fiber optic closure
