Indoor FTTH CPE Optical Fiber Cable Junction Box with 1:8 Splitter SC G657A2 Corning LSZH
This plastic terminal box is indoor use only, mainly for distribution vertical cable from patch cord to end customer. It is placed on the wall or bottom of the floor cabinet niche by screws.

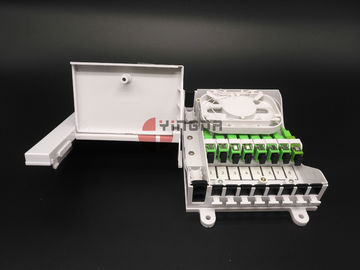

The cover of the box is fixed with screws into the bottom, and the front lid of the outputs to adapter is hinged with the upper parts, and it is fixed with screws to the bottom. Opening of the lid will not affect the movement of the other parts of the box, this unique design makes the box more safe, nice and humanity when installation on site and afterwards possible maintenance.
|Cable ports||2 in, 8 out|
|Cable dimeter||In:12 mm, out: 2*3.0 mm|
|Installation||Wall mounted indoor|
|Max. Fusion Capacity||4cores (bunchy fiber)|
|Splice tray||1 piece|
|Max. Splitter||1x2,1x4,1x8, 2x2, 2x4 steel tube PLC splitter|
8 pieces SC simplex coupler, without falange
max. 8SC adapters, 1x8 steel tube splitter, 1tray for 8 fibers fusion.
body and cover is seprated, wall mount design, compact size, multi-function, best mini box for CPE project.

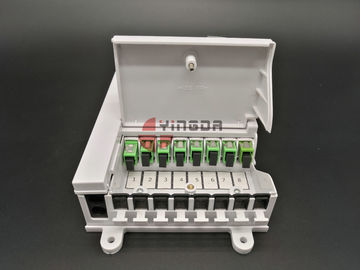

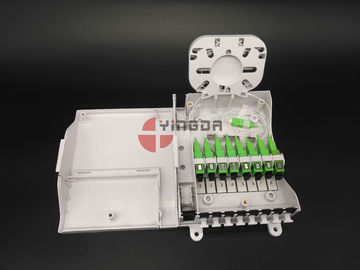

Box is flip cover, and tray is flip deisn with hinge. seperate area for distirubtion, fusion, splitting and management.
all box is white color, unique design, seperated cover to prevent disturb of different constrution work.
cable ports: 2 cable port from front to back, go throught the box witout cutting off the cable.
8 outputs for ftth fiber optic cable for indoor use, with rubber to prevent dust, wet, etc.

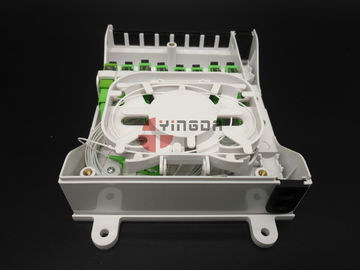

Splitter tube and redundant fiber will store down the splice tray, now we design a clip to fix the splitter tube on the bottom for better use.

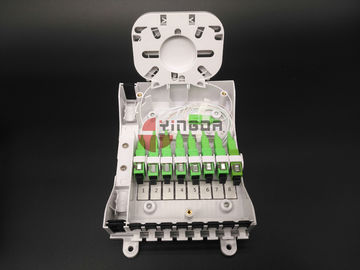

The adapter holder is not a panel, all is seperated, can be rorate 360 degree for better use. SC adapter flangeless is available.
can use number 12345678 mark the outputs. If need details, pls send us mail at: firstname.lastname@example.org
old tray is for 2cores, if 2way, can be 4cores fusion; the new one is for 8cores. please contact with sales for new.
The box is provide closed and will come equipped with all the elements, material consumable and tools necessary for the mounting and connection.
Accessories like below:
