2 Port Socket Panel for SC Fiber Adapter Fiber Optic Terminal Box White ABS FTTH Wall Mount

Place of Origin CHINA
Brand Name YINGDA
Certification ISO
Model Number FTB-86C
Minimum Order Quantity 500pcs
Price negotiable
Packaging Details 20pcs/box,200pcs/carton box
Delivery Time 5days
Payment Terms T/T, Western Union
Supply Ability 10000k pcs per month
Product Details
Material ABS Dimension 86*86*27mm
Fusion Capacity 2cores Installation Wall Mounting
Adapter 2pcs SC Cable Ports 2pcs + 1 CATV
High Light

fiber optic terminal box

,

fiber optic junction box

Leave a Message
Product Description

CATV Indoor Wall Mount Faceplate Socket 2 Ports SC, 2 Cores Fiber Access Terminal ABS





Fiber Socket panel is used in the end termination of residential buildings and villas, to fix and splice with pigtails. Can be installed on the wall; May adapt variety of optical connection styles; Optical fiber can be managed effectively; It is suitable in home or office and it is able to provide end users with optical access or data access.



Feature



Small size, slide cover, easy to open and operate

Can use SC,LC duplex adaptor

40mm, 45mm,60mm sleeve can be used

Mechanical connector or indoor cable can be used for consistency.

Indoor wall mount



Specifications



Item FTB86C
Size(H*W*D)mm 86*86*27
Cable diameter(mm) Ф7~Ф14
Cable ports 2 Ports
Max capacity of splice 2 cores
Material ABS



2 Port Socket Panel for SC Fiber Adapter Fiber Optic Terminal Box White ABS FTTH Wall Mount 02 Port Socket Panel for SC Fiber Adapter Fiber Optic Terminal Box White ABS FTTH Wall Mount 1

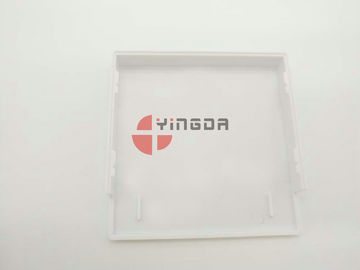

                    Empty box with cover                                    Empty box bottom view





2 Port Socket Panel for SC Fiber Adapter Fiber Optic Terminal Box White ABS FTTH Wall Mount 22 Port Socket Panel for SC Fiber Adapter Fiber Optic Terminal Box White ABS FTTH Wall Mount 3

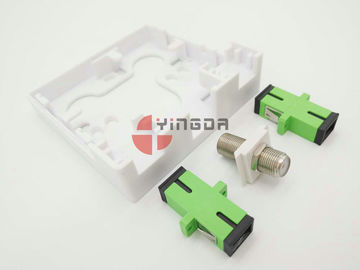

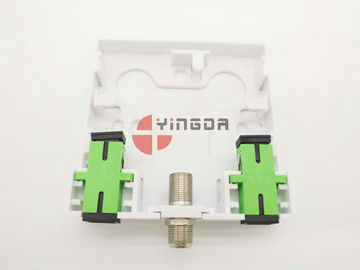

 Load with SC/APC adapter and 1 CATV module                         Internal view with modules



2 Port Socket Panel for SC Fiber Adapter Fiber Optic Terminal Box White ABS FTTH Wall Mount 42 Port Socket Panel for SC Fiber Adapter Fiber Optic Terminal Box White ABS FTTH Wall Mount 5

       Box slide design, and buckle positions                  Fusion splice Heatshrink tube position
