2 Port Socket Panel for SC Fiber Adapter Fiber Optic Terminal Box White ABS FTTH Wall Mount

2 Port Socket Panel for SC Fiber Adapter Fiber Optic Terminal Box White ABS FTTH Wall Mount

  • High Light

    fiber optic terminal box

    ,

    fiber optic junction box

  • Material
    ABS
  • Dimension
    86*86*27mm
  • Fusion Capacity
    2cores
  • Installation
    Wall Mounting
  • Adapter
    2pcs SC
  • Cable Ports
    2pcs + 1 CATV
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FTB-86C
  • Minimum Order Quantity
    500pcs
  • Price
    negotiable
  • Packaging Details
    20pcs/box,200pcs/carton box
  • Delivery Time
    5days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    10000k pcs per month

2 Port Socket Panel for SC Fiber Adapter Fiber Optic Terminal Box White ABS FTTH Wall Mount

CATV Indoor Wall Mount Faceplate Socket 2 Ports SC, 2 Cores Fiber Access Terminal ABS





Fiber Socket panel is used in the end termination of residential buildings and villas, to fix and splice with pigtails. Can be installed on the wall; May adapt variety of optical connection styles; Optical fiber can be managed effectively; It is suitable in home or office and it is able to provide end users with optical access or data access.



Feature



Small size, slide cover, easy to open and operate

Can use SC,LC duplex adaptor

40mm, 45mm,60mm sleeve can be used

Mechanical connector or indoor cable can be used for consistency.

Indoor wall mount



Specifications



Item FTB86C
Size(H*W*D)mm 86*86*27
Cable diameter(mm) Ф7~Ф14
Cable ports 2 Ports
Max capacity of splice 2 cores
Material ABS



2 Port Socket Panel for SC Fiber Adapter Fiber Optic Terminal Box White ABS FTTH Wall Mount 02 Port Socket Panel for SC Fiber Adapter Fiber Optic Terminal Box White ABS FTTH Wall Mount 1

                    Empty box with cover                                    Empty box bottom view





2 Port Socket Panel for SC Fiber Adapter Fiber Optic Terminal Box White ABS FTTH Wall Mount 22 Port Socket Panel for SC Fiber Adapter Fiber Optic Terminal Box White ABS FTTH Wall Mount 3

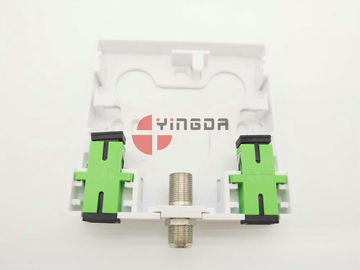

 Load with SC/APC adapter and 1 CATV module                         Internal view with modules



2 Port Socket Panel for SC Fiber Adapter Fiber Optic Terminal Box White ABS FTTH Wall Mount 42 Port Socket Panel for SC Fiber Adapter Fiber Optic Terminal Box White ABS FTTH Wall Mount 5

       Box slide design, and buckle positions                  Fusion splice Heatshrink tube position
