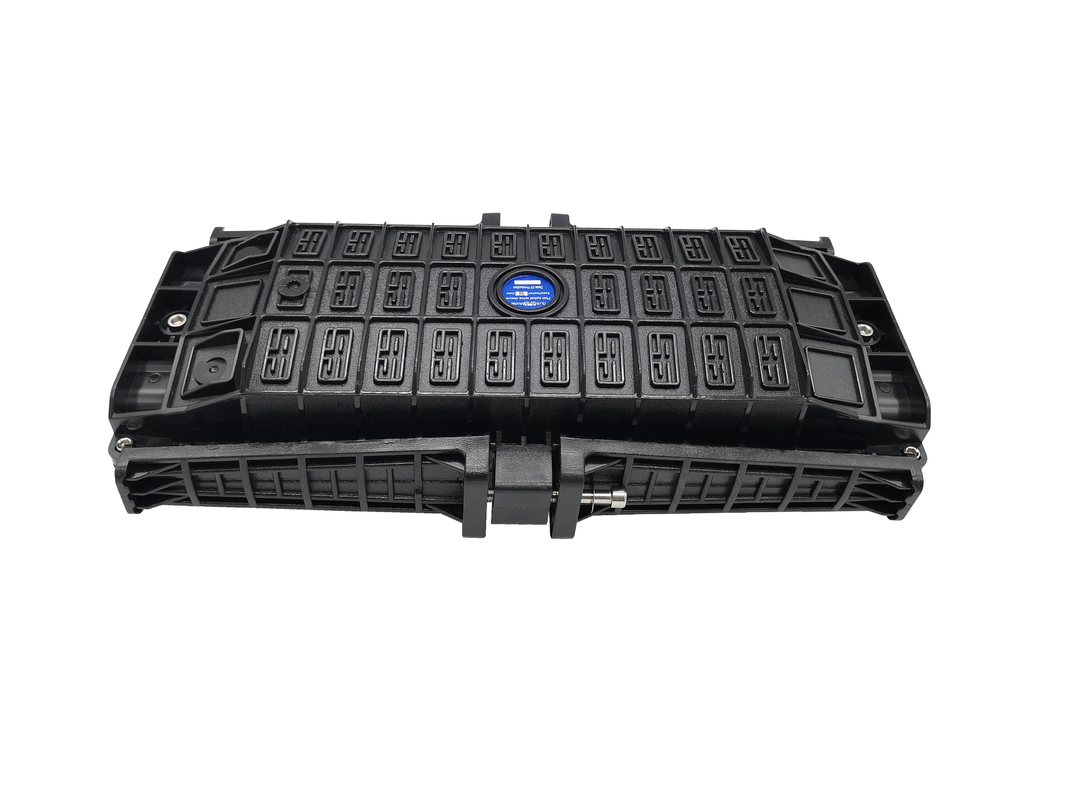

Inline Horizontal Fiber Optic Splice Closure 96 Cores 3M 3 in 3 Out PC Telecom Outdoor

Inline Horizontal Fiber Optic Splice Closure 96 Cores 3M  3 in 3 Out PC Telecom Outdoor
Inline Horizontal Fiber Optic Splice Closure 96 Cores 3M  3 in 3 Out PC Telecom Outdoor
Inline Horizontal Fiber Optic Splice Closure 96 Cores 3M  3 in 3 Out PC Telecom Outdoor Inline Horizontal Fiber Optic Splice Closure 96 Cores 3M  3 in 3 Out PC Telecom Outdoor Inline Horizontal Fiber Optic Splice Closure 96 Cores 3M  3 in 3 Out PC Telecom Outdoor Inline Horizontal Fiber Optic Splice Closure 96 Cores 3M  3 in 3 Out PC Telecom Outdoor Inline Horizontal Fiber Optic Splice Closure 96 Cores 3M  3 in 3 Out PC Telecom Outdoor Inline Horizontal Fiber Optic Splice Closure 96 Cores 3M  3 in 3 Out PC Telecom Outdoor

Large Image :  Inline Horizontal Fiber Optic Splice Closure 96 Cores 3M 3 in 3 Out PC Telecom Outdoor

Product Details:
Place of Origin: china
Brand Name: YINGDA
Certification: ISO
Model Number: GJS-H004
Payment & Shipping Terms:
Minimum Order Quantity: 100 units
Price: Negotiable
Packaging Details: 1pc / box, 10 pcs / carton box
Delivery Time: 7days after get payment
Payment Terms: T/T, Money Gram, Western Union

Inline Horizontal Fiber Optic Splice Closure 96 Cores 3M 3 in 3 Out PC Telecom Outdoor

Description
Dimension: 450x220x110mm Cable Ports: 3 In 3 Out Splice Closure
Max Capacity: 96 Core Bunchy Fiber Splice Box Cable Diameter: 8-23mm
Quantity Of Splice Tray: 4 Pcs Capacity Of Splice Tray: 24 Fibers / 54 Fibers (ribbon)
Net Weight: 3.2kg Product Name: Inline Splice Closure
Product Features: Horizontal Splice Closure
High Light:

fiber optic splice enclosure

,

fiber optic joint closure

Inline Horizontal Fiber Optic Splice Closure 96 Cores 3M 3 in 3 Out PC Telecom Outdoor





Features

  • Advanced internal structure design
  • Easy to re-enter, it never requires re-entry tool it
  • The closure is spacious enough for winding and storing fibers

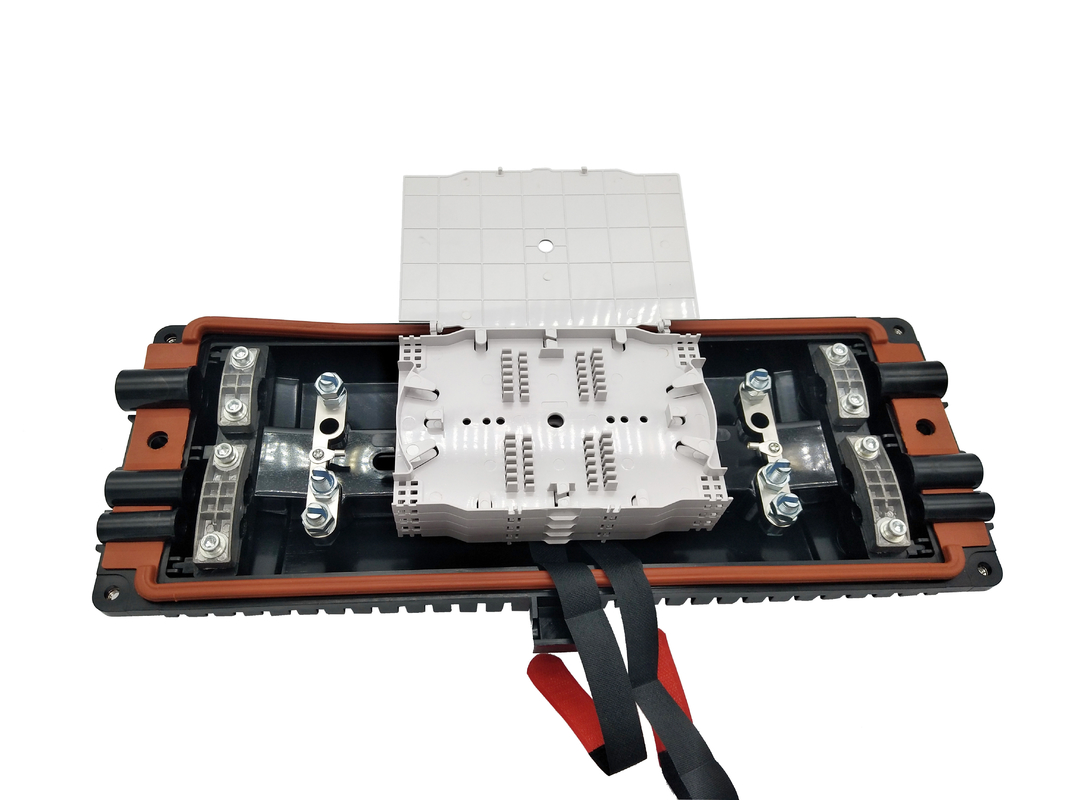

  • Fiber Optic Splice Trays(FOSTs) are design in SLIDE-IN LOCK and its opening angle is about 90°
  • The curved diameter meets with international standard
  • Easy and fast to increase and reduce FOSTs
  • Straight-through for uncutting and branching for cutting the fibers

Specification

Outside dimension (LxWxH) 450x220x110 (mm)
Weight (excluding outside box) 2750g-3200g

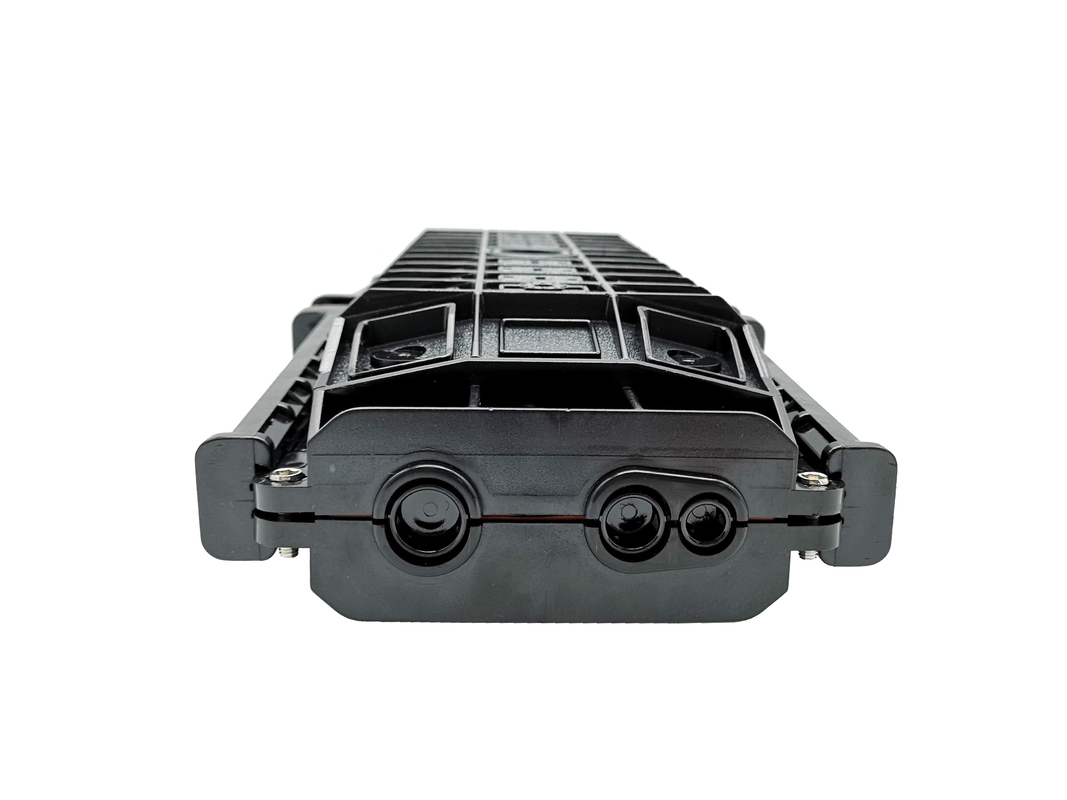

Number of inlet/outlet ports 3in, 3 out
Diameter of fiber cable Φ8—Φ23 (mm)
Capacity of FOSC

Bunchy: 6—96 (Cores)
Ribbon: max. 216 (Cores)

ambient temperature -40 to 65℃.



Inline Horizontal Fiber Optic Splice Closure 96 Cores 3M  3 in 3 Out PC Telecom Outdoor 0

-----------------------------------------------------------------------------------------------------------------------------------------------------

Inline Horizontal Fiber Optic Splice Closure 96 Cores 3M  3 in 3 Out PC Telecom Outdoor 1

-----------------------------------------------------------------------------------------------------------------------------------------------------

Inline Horizontal Fiber Optic Splice Closure 96 Cores 3M  3 in 3 Out PC Telecom Outdoor 2

-----------------------------------------------------------------------------------------------------------------------------------------------------Inline Horizontal Fiber Optic Splice Closure 96 Cores 3M  3 in 3 Out PC Telecom Outdoor 3

-----------------------------------------------------------------------------------------------------------------------------------------------------

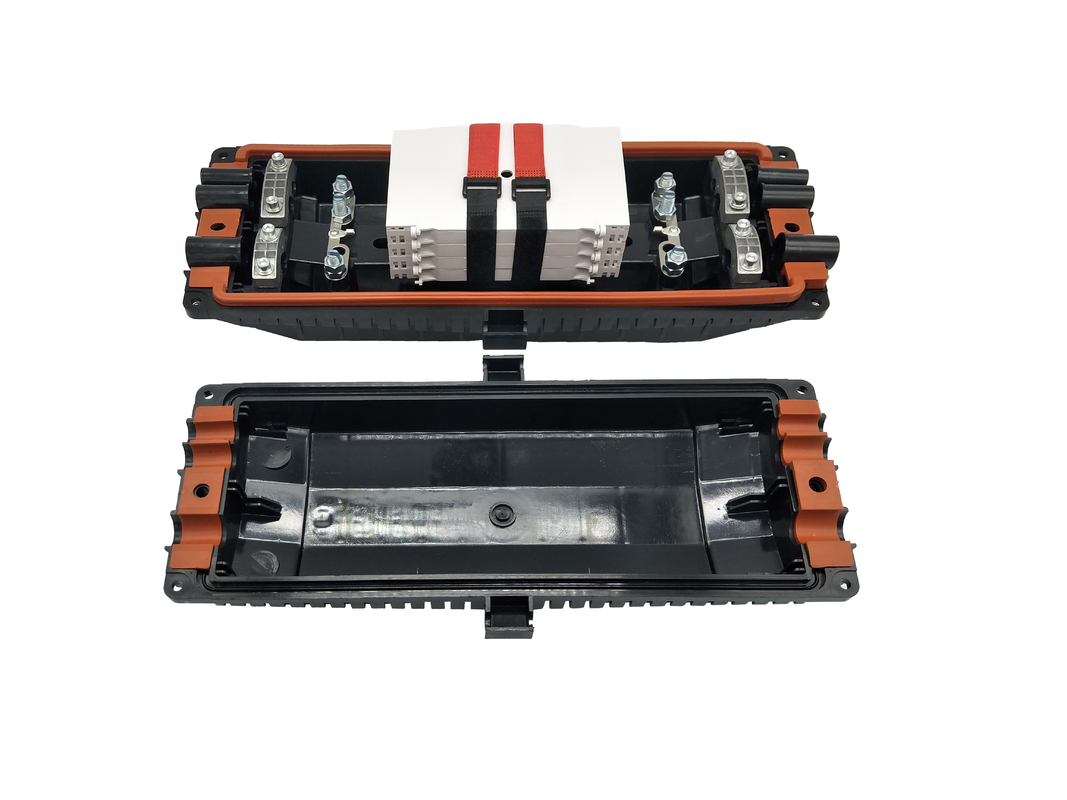

Main component

No. Name of components Quantity Usage Remarks
1 Housing 1 set Protecting fiber cable splices in whole

Internal diameter:
378x136 (mm)

2 Insert plate 2 pairs Fixing the housing 175x56x30(mm)
3

Fiber optic splice tray
(FOST)

Max 4 pieces (either bunchy or ribbon) Fixing heat shrinkable protective sleeve and holding fibers

Suitable for:
Bunchy:6,12,24(cores) Ribbon:3,6 (pieces)

4 Foundation 1 set Fixing reinforced core of fiber- cable and FOST
5 Seal fitting 1 set Sealing between FOSC cover and FOSC bottom
6 Port plug 6 pieces Sealing empty ports
7

Pressure
testing valve

1 set After injecting air, it is used for pressure testing and sealing testing Configuration as per requirement
8 Earthing deriving device 1 set Deriving metallic components of fiber cable in FOSC for earthing connection Configuration as per requirement

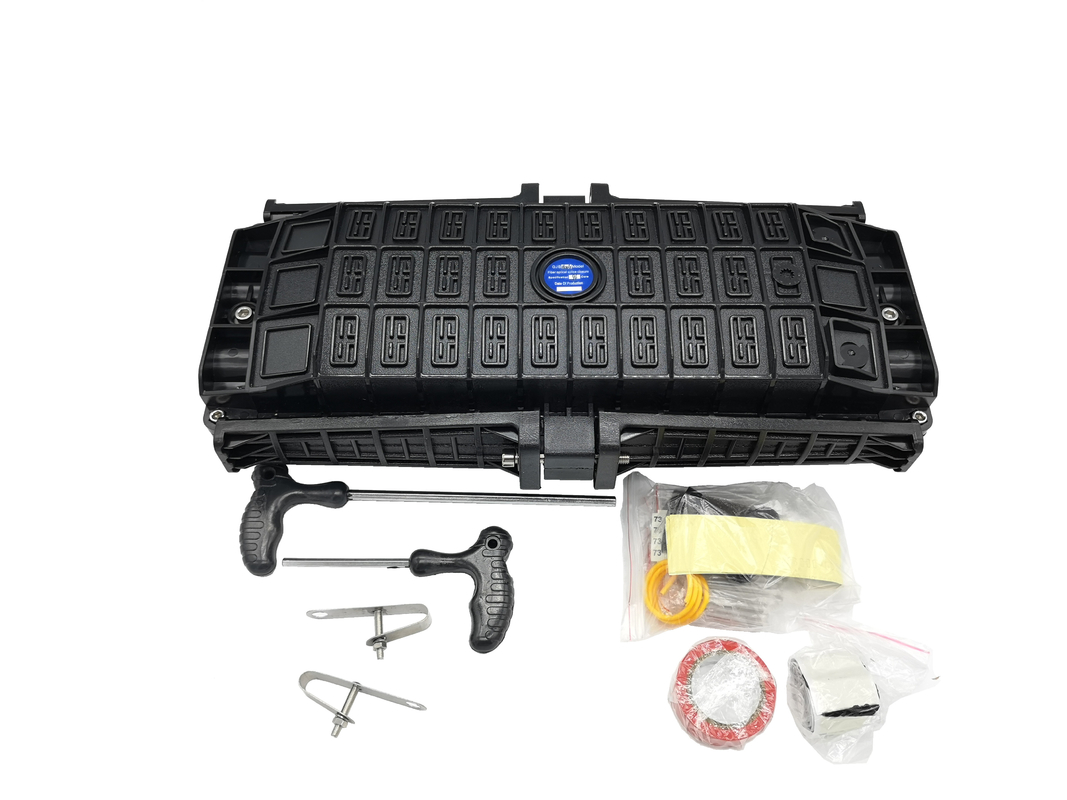

Main accessories and special tools

Inline Horizontal Fiber Optic Splice Closure 96 Cores 3M  3 in 3 Out PC Telecom Outdoor 4

No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable protective sleeve   Protecting fiber splices Configuration as per capacity
2 Nylon tie   Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Earthing wire 1 piece Putting through between earthing devices
7 Abrasive cloth 1 piece Scratching fiber cable
8 Labeling paper 1 piece Labeling fiber
9 Special wrench 3 pieces Fixing bolts, tightening nut of reinforced core
10 Measuring paper 1 piece To measure circle, of which its diameter is enlarged with seal tape
11

Buffer tube


To be decided by customers Hitched to fibers and fixed with FOST, managing buffer Configuration as per requirement
12 Desiccant 1 bag Put into FOSC before sealing for desiccating air.




Application

  • Aerial, underground, pipeline, handhole.
