Orizontal Fiber Optic Splice Closure , UnderGround Fiber Joint Closure 96 Core
  • name
  • name
  • name
  • name

Orizontal Fiber Optic Splice Closure , UnderGround Fiber Joint Closure 96 Core

MOQ: 100 units
Price: Negotiable
Standard Packaging: 1pc / box, 10 pcs / carton box
Delivery Period: 7days after get payment
Payment Method: T/T, MoneyGram, Western Union
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
GJS-H010
Material:
PC
Cable Ports:
3in 3out
Max Capacity:
96 Core Bunchy Fiber, 144cores For Ribbon Fiber
Cable Diameter:
8-20mm
Dimension:
430x180x125 Mm
Quantity Of Splice Tray:
4 Pcs
Capacity Of Splice Tray:
24fibers / 36 Fibers (ribbon)
Customer Logo:
Ok
Sample:
Ok
Highlight:

fiber optic splice enclosure

,

fiber optic joint closure

Product Description

Horizontal Fiber Optic Splice Enclosure Under Ground Fiber Joint Closure 96 Core

Horizontal 3 In 3 Out Fiber Optic Splice Closure, Under Ground Fiber Joint Closure 96 Core





Model: GJS-H010



Application: aerial, underground, wall-mounting, duct-mounting, handhole-mounting.

The ambient temperature ranges from -40℃ to +65℃.





Fiber Splicing Box sStructure

Orizontal Fiber Optic Splice Closure , UnderGround Fiber Joint Closure 96 Core 0



Specifications

Outside dimension (LxWxH) 430x180x125 (mm)
Weight (excluding outside box) 2500g-2825g
Number of inlet/outlet ports 3 (pieces) on each side (total 6 pieces)
Diameter of fiber cable Φ8—Φ20 (mm)
Capacity of FOSC

Bunchy: 12—96 (Cores)

Ribbon: max. 144(Cores)
Internal diameter 320x120x100(mm)
Splice tray capacity Bunchy:12, 24(cores); Ribbon:3 (pieces)



Main components



No. Name of components Quantity Usage Remarks
1 Housing 1 set Protecting fiber cable splices in whole




2

Fiber optic splice tray

(FOST)

max. 6 pcs (bunchy)

max. 4pcs (ribbon)

 Fixing heat shrinkable protective sleeve and holding fibers
3 Foundation 1 set Fixing reinforced core of fiber- cable and FOST
4 Seal fitting 1 set Sealing between FOSC cover and FOSC bottom
5 Port plug 6 pieces Sealing empty ports
6

Pressure

testing valve

 1 set After injecting air, it is used for pressure testing and sealing testing Configuration as per requirement
7 Earthing deriving device 1 set Deriving metallic components of fiber cable in FOSC for earthing connection Configuration as per requirement



Main accessories and special tools

Orizontal Fiber Optic Splice Closure , UnderGround Fiber Joint Closure 96 Core 1Orizontal Fiber Optic Splice Closure , UnderGround Fiber Joint Closure 96 Core 2

No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable protective sleeve   Protecting fiber splices Configuration as per capacity
2 Nylon tie   Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Earthing wire 1 piece Putting through between earthing devices
7 Abrasive cloth 1 piece Scratching fiber cable
8 Labeling paper 1 piece Labeling fiber
9 Special wrench 3 pieces Fixing bolts, tightening nut of reinforced core
10 Measuring paper 1 piece To measure circle, of which its diameter is enlarged with seal tape
11

Buffer tube



 to be decided by customers Hitched to fibers and fixed with FOST, managing buffer Configuration as per requirement
12 Desiccant 1 bag Put into FOSC before sealing for desiccating air.



Orizontal Fiber Optic Splice Closure , UnderGround Fiber Joint Closure 96 Core 3Orizontal Fiber Optic Splice Closure , UnderGround Fiber Joint Closure 96 Core 4

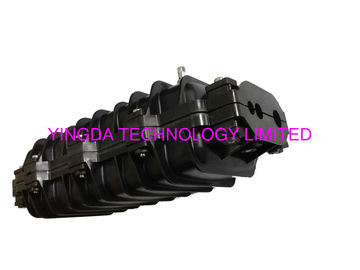

                            figure 1                                                                    figure 2

           fiber splice box inline type top                           fibre splice box horizontal type side



  • box is made of high strength engineering plastic PC material, perfect handworks. (figure 1&2)
  • the closure is with stainless steel blots to open and close the box, standard equipped with special wrench tool.  (figure 1&2)

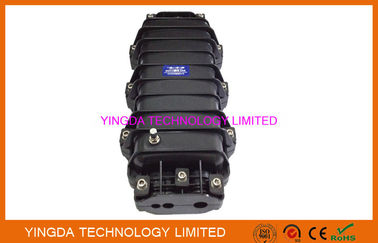

Orizontal Fiber Optic Splice Closure , UnderGround Fiber Joint Closure 96 Core 5Orizontal Fiber Optic Splice Closure , UnderGround Fiber Joint Closure 96 Core 6

                             figure 3                                                               figure 4



  • there is a label on the top of the fiber junction box, the content mainly include: product name, model, capacity, production date. see figure 3
  • the inside is total sealed with red rubber circle, waterproof, dustproof. can be used outside harsh environment , underground,manhole, wall mount, pole mounted,aerial,etc. see figure 4

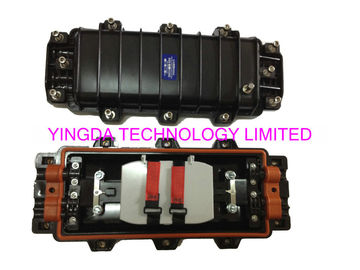

Orizontal Fiber Optic Splice Closure , UnderGround Fiber Joint Closure 96 Core 7Orizontal Fiber Optic Splice Closure , UnderGround Fiber Joint Closure 96 Core 8

                                        figure 5                                                         figure 6



  • the cable ports is: 3 inport, 3 outports. cable diameter seperately is: 8-20mm, 8-16mm, 8-13mm,like figure 5 &6
  • the air valve is optional when order. if customer need, will equipped with it, like figure 6.

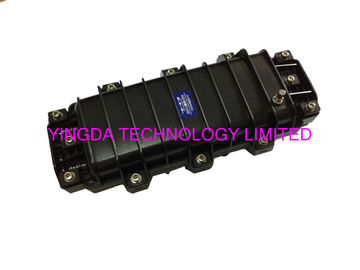

Orizontal Fiber Optic Splice Closure , UnderGround Fiber Joint Closure 96 Core 9Orizontal Fiber Optic Splice Closure , UnderGround Fiber Joint Closure 96 Core 10



                             figure 7                                                                     figure 8



fiber splice closure can install maximum 4 pcs 24 fibers trays, each tray with plastic sleeve holders. see figure 7.

all the splice tray is overlap with each other, and fix on the closure with screws, so it will not broken on long transportation. see sigure 8.
