Home Inline  Fiber Cable Joint Box 36 Fibers Single Fusion PC Wall - Mounted

Home Inline Fiber Cable Joint Box 36 Fibers Single Fusion PC Wall - Mounted

  • High Light

    fiber optic junction box

    ,

    fiber optic cable junction box

  • Material
    PC
  • Seal
    Mechanical Sealing
  • Adapter
    SC Max. 8pcs
  • Cable Ports
    2 Ports For Cable, 8 Port For Drop Cable
  • Customer Logo
    Ok
  • Cable Diameter
    1ports: 8-20mm; 1port: 8-13mm, 8 Ports: 2x3mm
  • Dimension
    217*200*89mm
  • Plc Splitter
    1x8, 1x4, 1x2 Bare PLC Optical Splitter
  • Sample
    Ok
  • Max Capacity
    36 Fibers Single Fusion
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    GJS-5019
  • Minimum Order Quantity
    50 units
  • Price
    Negotiable
  • Packaging Details
    1pc / box, 10 pcs / carton box
  • Delivery Time
    7days after get payment
  • Payment Terms
    T/T, MoneyGram, Western Union

Home Inline Fiber Cable Joint Box 36 Fibers Single Fusion PC Wall - Mounted



Multi Function Fiber Cable Joint Box 36 Fibers Single Fusion mechanical sealing

Fiber To Home Mimi Inline Fiber Optic Splitter Cloure PC Wall-mounted, 1 to 8 Splitter Distribution Box





Model: GJS-5019 fiber optic splitter enclosures



5 Series for Multi-function fiber optical splice closures can be used both for the protection of various straight-through and branching, and for the construction of fiber-optic network to achieve the wiring of fiber to the home (FTTH). Also, the connectors can be used for the splicing of some main optical cables and branching optical cables, and the splicing of some main optical cables and tail fibers or pigtail optical cables, and they can be connected to the optical switching devices through patch cords. Therefore, the splicing unit within the network box, wiring unit, part material of the network box housing, optical cables connected to the network box from the closures and the whole operation process can be excluded.



Features

  1. Advanced internal structure design
  2. Easy and fast to increase and reduce FOSTs
  3. Easy to re-enter, it never requires re-entry tool it
  4. The curved diameter meets with international standard
  5. Good sealing structure with sealing ring and sealing tape
  6. The closure is spacious enough for winding and storing fibers
  7. 3layers, 1 for splice, 1 for distribution, 1 for splitting, each have enough space for fiber storage
  8. Fiber Optic Splice Trays(FOSTs) are design in SLIDE-IN-LOCK and its opening angle is about 90°
  9. It is made of high-strength engineering plastic (PC), suit for temperature of -40 ~ +65℃



Applications

  • FTTH optical fiber distribution
  • Suitable for bunchy fibers
  • Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting



Specifications



Model GJS-5019
Dimension 217*200*89mm
Material PC
Max capacity 36 fibers (3x12F)
Cable ports 10pcs
Cable diameter 1port: 8-20mm; 1ports:8-13mm, 8ports: 2x3mm
Splice Tray Capacity 3 pcs (12F per tray)

Splitter Tray

(Bare/Blockless PLC Splitter)

1x 1:8
Max capacity of adaptors 8 pcs SC



Home Inline  Fiber Cable Joint Box 36 Fibers Single Fusion PC Wall - Mounted 0

Home Inline  Fiber Cable Joint Box 36 Fibers Single Fusion PC Wall - Mounted 1

More pictures and descriptions in details:

Home Inline  Fiber Cable Joint Box 36 Fibers Single Fusion PC Wall - Mounted 2Home Inline  Fiber Cable Joint Box 36 Fibers Single Fusion PC Wall - Mounted 3

1 piece  per box,  each box with its accessories may need, instruction manual included, all is brand new.



Home Inline  Fiber Cable Joint Box 36 Fibers Single Fusion PC Wall - Mounted 4Home Inline  Fiber Cable Joint Box 36 Fibers Single Fusion PC Wall - Mounted 5

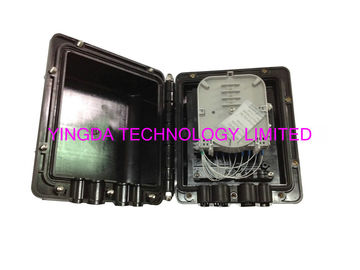

           fiber optic splice enclosure side                                   fiber optic splitter box side

Home Inline  Fiber Cable Joint Box 36 Fibers Single Fusion PC Wall - Mounted 6Home Inline  Fiber Cable Joint Box 36 Fibers Single Fusion PC Wall - Mounted 7

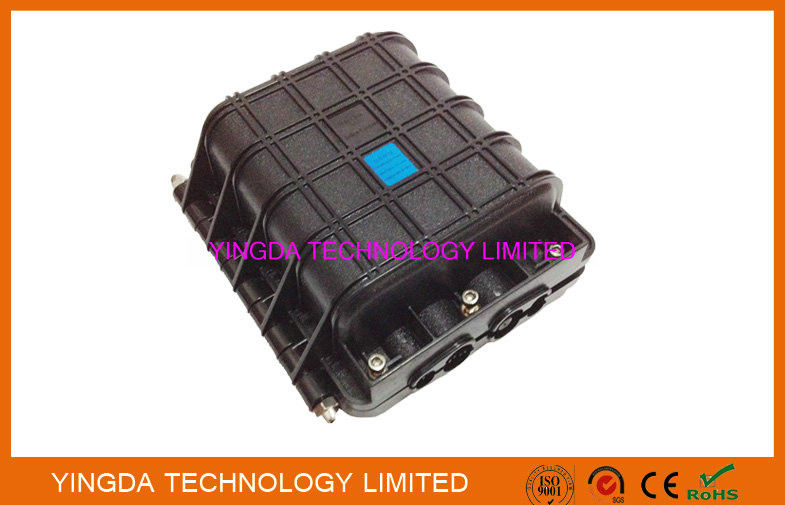

                 fiber splice box front                                                 fibre splicing box back



Home Inline  Fiber Cable Joint Box 36 Fibers Single Fusion PC Wall - Mounted 8Home Inline  Fiber Cable Joint Box 36 Fibers Single Fusion PC Wall - Mounted 9

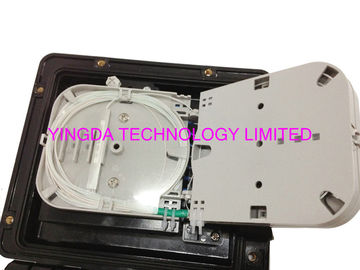

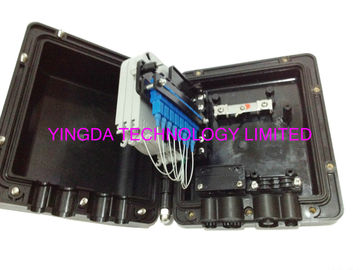

fiber optic splitter cloure inside overview

  1. it is with 3 pieces splice tray, each tray 12 fibers, the top layer is for splicing, with desiccant. the splice tray is overlap with each other, and fix in the closure with palstic screws.
  2. the splice closure with 10ports, each diameter is like this:
  •              1ports: 8-20mm
  •              1ports:8-13mm
  •              8ports: FTTH drop cable 2x3mm


     3.   the adapter panel part it maximum can install 8 pieces of SC adapters in total. this part can be taken off by hand.  it is easy to handle and installation.

Home Inline  Fiber Cable Joint Box 36 Fibers Single Fusion PC Wall - Mounted 10Home Inline  Fiber Cable Joint Box 36 Fibers Single Fusion PC Wall - Mounted 11



  1. the 2nd layer of splice tray with 1 pcs SC connector, which is the input side of the plc splitter. we use glue to stick and fix it.
  2. the 3rd layer of splice tray with the PLC splitter output side of cables, and also with the PLC splitter steel tube. and there is speical place to fix it.
