Brand Name: | YINGDA |
Model Number: | FDB0224G |
MOQ: | 200pcs |
Price: | negotiable |
Delivery Time: | 1week |
Payment Terms: | T/T, Western Union |

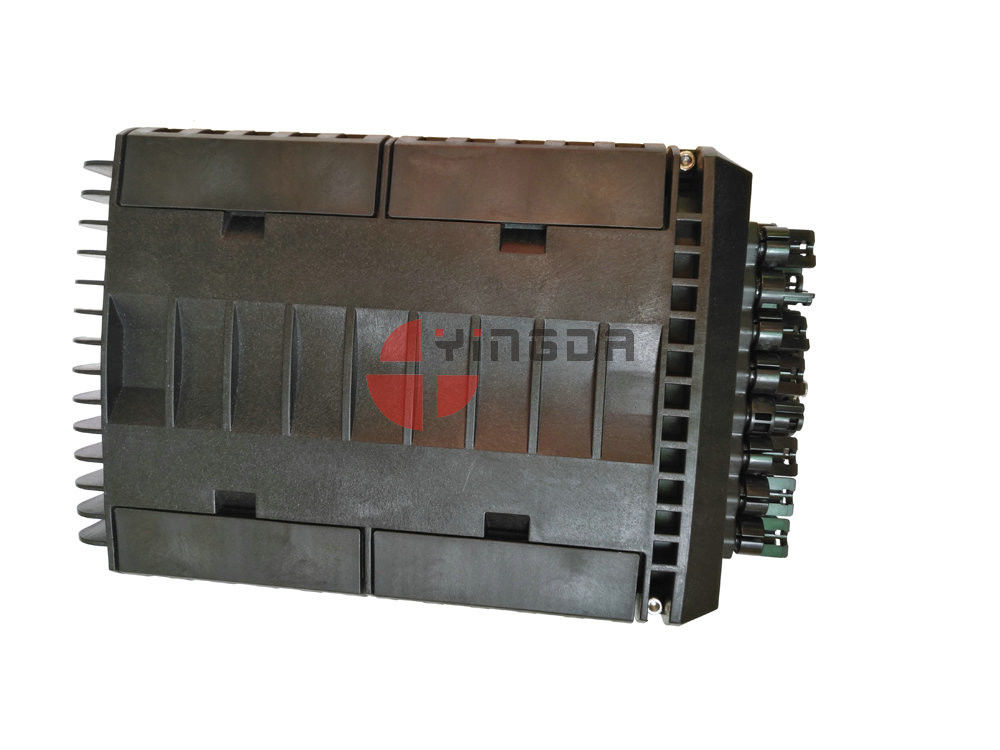

1x8 Fiber Optic Splitter Box, SC 24 Ports Fiber Optic Splitter Closure PP IP68 Grade Black
FTTH drop cable type fiber optic splice & splitter closure features with ruggedness, which is ested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design helps user get better experience and safer operating environment.
Total closed with buckles, ip68 1Uncut port to support midspan termination, 24ports for drop cable compatible for HUAWEI OptiTap SC/APC connecctors

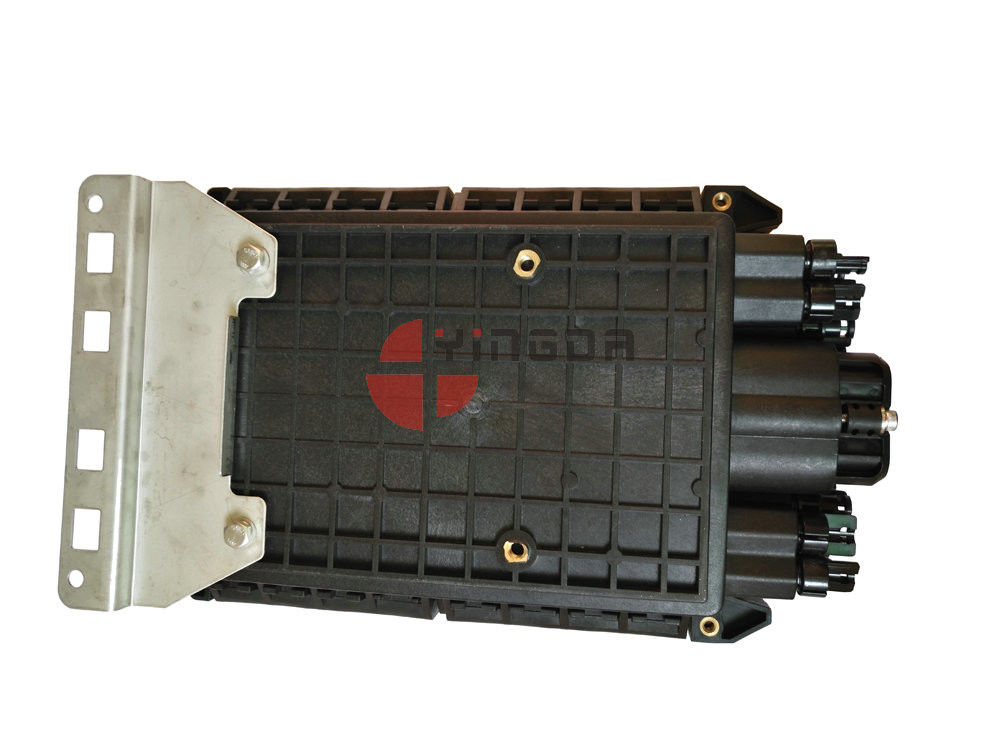

bottom with wall mount or pole mount stainless Dis-mountable adaptor panel 4way, each 6 SC
steel plate for cable management, fix by screws couplers

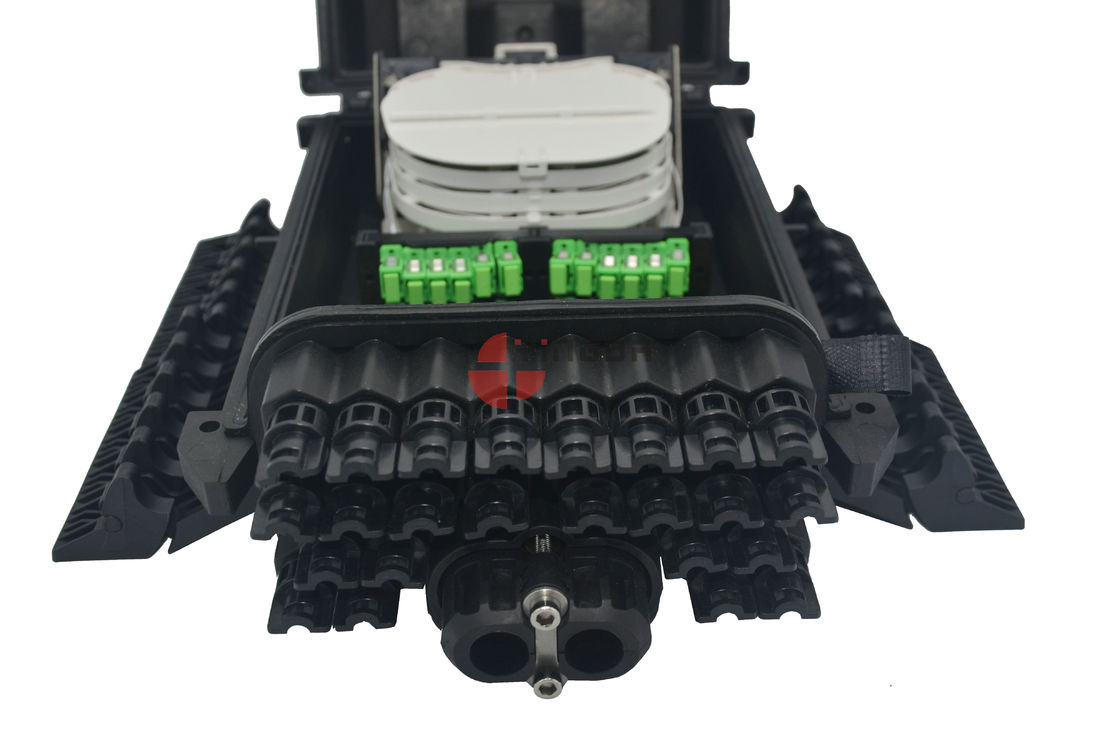

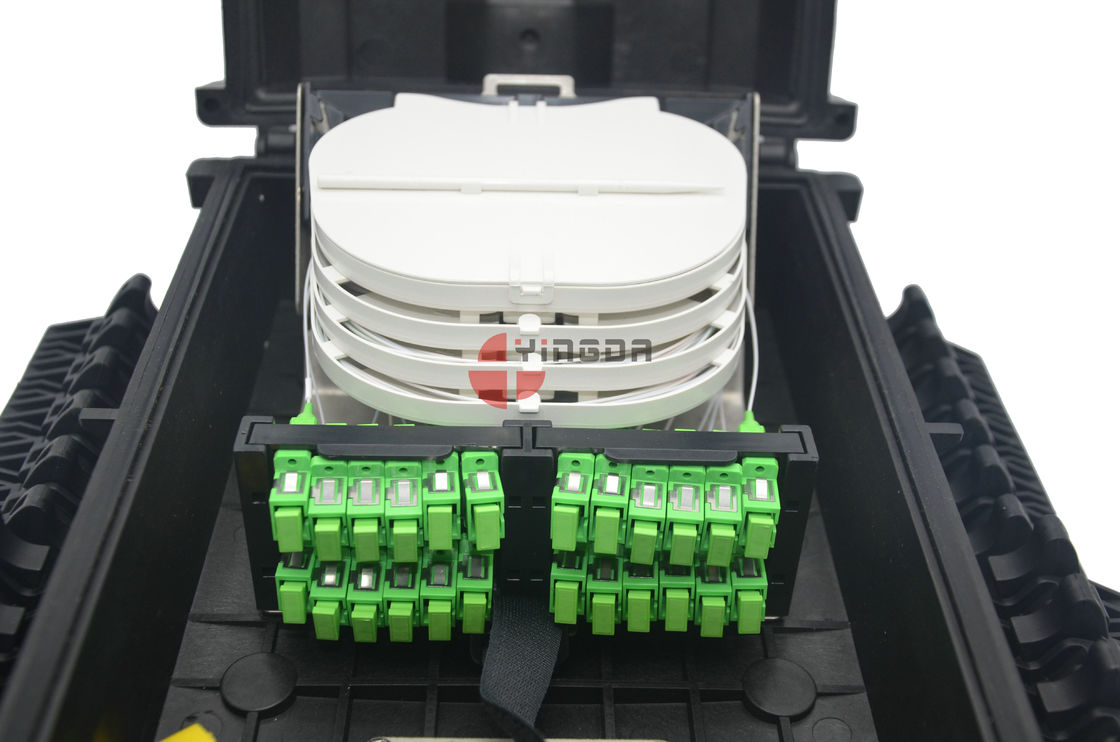

Rotatable and dis-mountable splice tray for easy splicing splitter tool for the ftth drop cable ports
ABS material of tray, each 12cores single fiber fusion it can be taken by hand
there is tray cover and steel tube plc splitter groove
Specification
Model | FDB0224G |
Adapter | 24pcs of SC |
Cable ports | 1 uncut port |
Applicable cable diameter | Uncut port: 10-17.5mm |
Drop cable ports | 24ports |
Applicable cable diameter | 2*3mm FTTH drop cable, 2*5mm figure 8 FTTH drop cable |
Dimension | 385*245*130mm |
Material | Modified polymer plastic |
Sealing structure | Mechanical sealing |
Color | Black |
Maximum splicing capacity | 96fibers (4trays, 24fibers/ tray) |
Applicable spliter | 1pc of 1*16 plc splitter or 2pcs 1*8 plc splitters |
Sealing | Ip68 |
Impact test | IK10 |
Pull test | 100N |
Midspan entry | Yes |
Storage (tube/micro cable) | Yes |
Net weight | 4kg |
Gross weight | 5kg |
Packing | 540*410*375mm (4pcs per carton) |
Standard parts
S/N | Description | Quantity | Note |
17 | Wall mounting kit | 1 | For wall mounting |
18 | Expansion anchor bolt | 2 | Parts of the wall mounting kit |
19 | Hexagon bolt | 2 | Parts of the wall mounting kit |
20 | Nylon tie(3*120mm) | 12 | Fixing cable |
21 | Fusion sleeve(Φ1.0*60mm) | According to the fiber cores. | Cable splicing |
22 | 0.2m coil tube | 1 | Protect the fiber |
23 | Insulation tape | 1 | Accessorial fixation |
24 | 0.5m EVA tube | 1 | Protect fiber |
25 | Drier | 1 | |
26 | M6 internal hexagonal wrench | 1 | Tool to open the box |
27 | 14# grommet | 2 | For cable dia. From 12-17.5mm |
28 | 41# grommet | 2 | For cable dia. From 8-12mm |
29 | Plastic plug | 4 | Seal the cable port |
30 | Iron spanner | 1 | Tool |
