1 x 32 PLC Spliter Fiber Optic Cable Joint Box 36 Fibers For Outdoor FTTH Splitting

1 x 32 PLC Spliter Fiber Optic Cable Joint Box 36 Fibers For Outdoor FTTH Splitting

  • High Light

    fiber optic cable junction box

    ,

    fiber optic cable joint box

  • Material
    PP
  • Max Capacity
    48 Fibers (single Fusion)
  • Cable Ports
    1 Oval Port, 4 Round Ports
  • Cable Diameter
    24mm, 17.5mm
  • PLC Splitter
    Max. 2.x32 Splitter - 1pc, 2x16 Splitter - 2pcs
  • SC Adapter
    36 Pcs
  • SC Pigtails
    32pcs
  • Dimension
    450*230mm
  • Customer Logo
    On The Package Box With Label
  • Applicable
    Outdoor FTTH Splitting And Distribution
  • Sealing
    Mechanical Or Heatshrink Sealing
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    GJS-306
  • Minimum Order Quantity
    100pcs
  • Price
    negotiable
  • Packaging Details
    1pc/box, 4pcs/carton box
  • Delivery Time
    7-10 days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    10000pcs/month

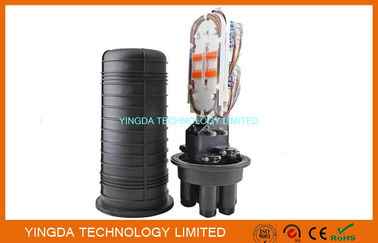

1 x 32 PLC Spliter Fiber Optic Cable Joint Box 36 Fibers For Outdoor FTTH Splitting

36 Fibers SC Adapter Fiber Optic Splice Closure 1x32 PLC Spliter Optical Distribution Box





Model: GJS-306



GJS-306 is dome splicing closure, It has function of direct connection and branch connection and

protection for connectors. Ip 68 RATED, IT CAN INSTALL 1 PC 2X32 plc splitter and 2pcs 2x 16 PLC

splitters, with four small cable inlets and 1 big cable inlet. Vulcanized rubber sealing material, suitable

for aerial, pole, wall mounted, and buried installation.



Features:

  1. May be used for cut, uncut and taut sheath applications.
  2. May be used for all fiber optic cable.
  3. Sheath retention & central strength member termination system included.
  4. Ribbed closure construction-lightweight plastic offers strength and resistance to chemical and U.V attack
  5. Installation and reentry with a minimum of tools
  6. All hardware are included
  7. material:pp

1 x 32 PLC Spliter Fiber Optic Cable Joint Box 36 Fibers For Outdoor FTTH Splitting 0

Specification:



Model GJS-306
Size (Height*Diameter) 450*230mm
Splice fiber storage capacity (single fusion) 48 fibers fusion splice, 1x32, 1x16, 1x8 splitter
Cable ports 1 oval ports + 4 round ports
Max. Diameter of cable

1oval port: for 1 loop cble with max. Diameter 24mm;

4 round ports: each port for 1 cable with max. Diameter 17.5mm, or each port for 8 pcs of drop cable with diameter 2x3.1mm

Material PP
MOQ 50PCS



Standard package:



Dome, Base, Clamp,O-ring, metal storage basket, Splice Tray, Heat shrink protective sleeve, Cable ties, Grounding wire, Labeling paper, Installation Manual,



1 set of Oval port closing kits:

Including 1 heat shrink fixing tube+2 pcs of aluminium paper(10cm x 10 cm)+sand paper(2.5 x30mm)+2 bags cleaning tissue+ branching clip etc



4 sets of Round port closing kits:

Including 1 heat shrink fixing tube+1 pc of aluminium paper(10cm x 10 cm)+sand paper etc

1 x 32 PLC Spliter Fiber Optic Cable Joint Box 36 Fibers For Outdoor FTTH Splitting 1



Installation procedure

  1. Open the closure
  2. Choose the proper inlet to take out the fix screws
  3. Put stripped cable into sealing part and base
  4. Fix he cable and steel port
  5. Put all sealing kits to inlet and fix screws
  6. Splice, connection, cable storage, fix the trays
  7. Clamp the base and case
  8. Install the external part fix the closure body



KIND NOTES:



When customer install splitter himself, please pay attention to the cable length of splitter output

and input pigtails.



Output pigtails (±2cm) (Input part) difference length (±2cm)
1-8 9-16 17-24 25-32
135CM 85CM 90CM 95CM 100CM

1 x 32 PLC Spliter Fiber Optic Cable Joint Box 36 Fibers For Outdoor FTTH Splitting 2

Order information

GJS-306-XX-XXX-XX-XX-XX-X-XX

                 1 - 2 - 3 - 4 - 5 - 6 - 7

item 1 2 3 4 5 6 7
Model SC Adapter quantity PLC splitter input connector of PLC output connector of PLC Pigtail length Installation kits Optional accessories
GJS-306

01=1pc

02=2pc

...

36=36pcs

Xx=not include

102=1x2

104=1x4

...

132=1x32

202=2x2

...

232=2x32

Xx=not include

SA=SC/APC

SU=SC/UPC

Xx= customized

Xx=not include

SA=SC/APC

SU=SC/UPC

Xx= customized

05=0.5meter

10=1.0meter

15=1.5meter

Xx= customized

A=aerial mounting

W=wall mounting

P=pole mounting

Xx=not included

Ground device=GD

Air valve=AV

XX= not include
