Fiber Cable Joint Box
Created with Pixso. FTTH Distribution Fiber Cable Joint Box Waterproof 8 Cores With LGX Module

FTTH Distribution Fiber Cable Joint Box Waterproof 8 Cores With LGX Module

Brand Name: YINGDA
Model Number: GJS-2022
MOQ: 100pcs
Price: negotiable
Payment Terms: Western Union, T/T, L/C, MoneyGram
Detail Information
Place of Origin:
china
Certification:
ISO, ROHS,SGS
Material:
PP+GF
Size(L*W*H):
290*190*110mm
Max. Capacity:
24 Cores
Max. Splice Tray:
1 Pcs 24 Fiber Tray
Max. Spliter:
Micro Plc Splitter 1:16 Or 2pcs 1:8 Splitter
Cable Port:
4 Round Ports, 16pcs Drop Cable Ports
Cable Diameter:
4round:Φ7-φ18mm, 16pcs: 2*3mm
Waterproof Grade:
IP65 Protection Level
Color:
Black
Packaging Details:
1pc/ inner box, 6pcs/ carton box
Supply Ability:
100000pcs per month
Highlight:

fiber optic junction box

,

fiber optic cable junction box

Product Description

FTTH Waterproof Distribution Fiber Optic Splitter Box NAP 8 Cores with LGX Module

GJS-2022 Fiber Optic Splice / Splitter Closure





This splice closure integrates distribution and splitting in one, can realize the direct fusion and branching of the optical cable, and is suitable for the wiring connection in the optical communication equipment. Through the adapter and jumper to bring in the signal to realize optical distribution function, it is also suitable for fiber optic cables and pigtail protective connection; the unique three-tier design of the box body can be used as a fiber splitter or splice box; the flip board can be flipped≥180°,it is more convenient to install the box or maintenance. If remove the board, it can bed as a splice closure to meet different choices.



FTTH Distribution Fiber Cable Joint Box Waterproof  8 Cores With LGX Module 0FTTH Distribution Fiber Cable Joint Box Waterproof  8 Cores With LGX Module 1

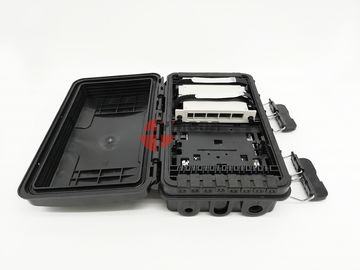

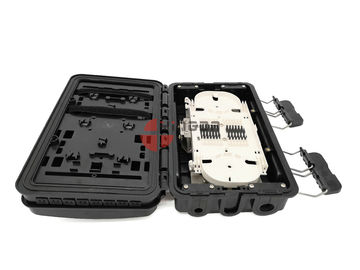

                        Splice closure (2 layer)                                          Splitter closure (3 layer)



Features

  1. The product is made of high-quality impact resistant plastic and has a standard user interface that can be re-opened.
  2. Can accommodate two 1x8 PLC splitter LGX module or steel tube type;
  3. Anti-ultraviolet,anti- impact and waterproof function;
  4. Unique flip board, flip angle ≥ 180 °, fusion area and distribution area is more obvious, reducing the cable crossing;
  5. Fiber optic cable can go in and out of the box without cut the cable.



Technical parameters



  1. Optical fiber radius of curvature: ≥40mm
  2. Splice tray additional loss: ≤0.1dB
  3. Temperature range: -40°C ~ +60°C
  4. Anti side pressure: ≥2000N/10cm
  5. Impact resistance: ≥20N.m
  6. Protection class: IP65



Specification



Model GJS-2022-S GJS-2022-F
Dimension (mm) 290*190*110 290*190*90
Cable diameter (mm) Φ7-φ18 Φ7-φ18
Cable port 4pcs round ports, 16pcs 2*3mm drop cable ports 2in 2 out
Max. Split ratio 2pcs 1x8 mini splitter /
Max. Splice tray 1pc 3pcs
Max. Fusion splice 24 cores 72 cores





Product details:

FTTH Distribution Fiber Cable Joint Box Waterproof  8 Cores With LGX Module 2FTTH Distribution Fiber Cable Joint Box Waterproof  8 Cores With LGX Module 3

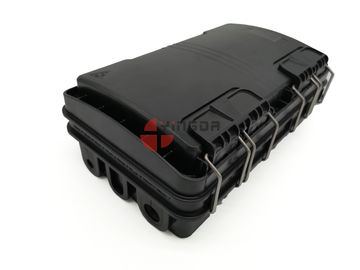

Total box with 3 layers:

the upper layer for splitting, can max. hold 2pcs 1x8 or 1pc 1x16 splitter module

the middle layer is the splice tray for fusion, max. 24cores with 1tray,white color

the bottom is for ditribution of feeder cable from outside, and cable storage and routing.

the whole box is closed with 2 buckles an rubber seal with IP65 grade



FTTH Distribution Fiber Cable Joint Box Waterproof  8 Cores With LGX Module 4  FTTH Distribution Fiber Cable Joint Box Waterproof  8 Cores With LGX Module 5



The splice tray is fix on the box with screws with stainless teel metal sheet, it is good protection from damage during long transportation and violent handworks. to keep fiber stable and high performance.



FTTH Distribution Fiber Cable Joint Box Waterproof  8 Cores With LGX Module 6  FTTH Distribution Fiber Cable Joint Box Waterproof  8 Cores With LGX Module 7

the cable port is on the bottom of the box, there are 2round ports at each side of the box, there is one another more for future use, the diameter can be 7-18mm;

 on one side of the box, above the cable ports, there are 16pcs 2*3mm drop cable outputs, it is on the first layer plate with rubber seal, good waterproof, and with cable q6pcs fix slots.





Packing list



Main body 1 set
L=400mm bare fiber buffer tube 2 pcs
Hoop / clamp 2 pcs
3x100 nylon tie 26 pcs
Heat shrinkable tube L=60mm 2-72 pcs (configuration on demand)
User manual 1pc
