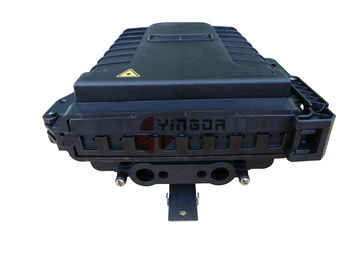

FTTH Fiber Access Point Splice Distribution Box Slim 16 Port For 1X8 1X16 Splitter

FTTH Fiber Access Point Splice Distribution Box Slim 16 Port For 1X8 1X16 Splitter

  • High Light

    fiber optic cable junction box

    ,

    fiber optic cable joint box

  • Material
    PP
  • Color
    Black
  • Type
    Fiber Optic Splitter Box
  • Application
    Ftth Box
  • Mounting
    Pole Mount, Wall Mount
  • Feature
    2pcs 1x8 Or 1x16 Splitter With 18SC Holder
  • Max Fusion
    16 Cores Single Fiber
  • Cable Port
    1 Oval +16 Round Ports With Rubber Seal
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO
  • Model Number
    FDB0216B-2108SA
  • Minimum Order Quantity
    1piece
  • Price
    negotiable
  • Packaging Details
    1pc / box, 6 pcs / carton box
  • Delivery Time
    5days
  • Payment Terms
    T/T, MoneyGram, Western Union, L/C
  • Supply Ability
    10000pcs / month

FTTH Fiber Access Point Splice Distribution Box Slim 16 Port For 1X8 1X16 Splitter

16 Port FTTH Fiber Access Point Splice Distribution SLIM BOX for 1X8 1X16 Splitter



Network access point FDB0216B is an external use product for installation in overhead networking (pole/wall/steel wire).



Specification

MODEL FDB0216B
Dimension 245*295*130mm
Material PP+GF
Cable port 1 oval + 16pcs drop cable or round cable
Cable diameter

Oval: 2 main cable (φ8-15mm) or 2 derivation cables (φ6-8mm)

16pcs: Drop Cable Low Friction 3x2mm or round 4.5-5.3mm

Fusion capacity 16 cores single fiber
Max. Adapter 16 SC +2SC
Max. Tray 2splice tray (16cores) + 1 adapter tray (16SC) or 4 splice trays (16cores).
Seal method mechanical


FTTH Fiber Access Point Splice Distribution Box Slim 16 Port For 1X8 1X16 Splitter 0

Features

  • Made of high strength plastic engineering material, anti-aging, anti-UV and corrosion.
  • Mix splitting, splicing, distribution and fiber storage in one set, convenient for ftth deploying
  • Small size, unique design, round shape, smooth and strong.
  • Total closed with brackets, ropes and pole mount metal sheet.
  • Wall mount, pole mount ,aerial mount available.
  • Best for outdoor harsh environment, waterproof IP65 grade.
  • There is position on box surface for logo or brand, silk print or laser mark both ok.
  • The feeder cable can go in and through the box without cut, because the cable entry port is mid span, and mechanical sealing.
  • Reasonable and enough space for fiber cable management system, which ensure fiber radius <40mm.
  • Suitable for 16 pcs ftth (fiber to the home) drop cable distribution

FTTH Fiber Access Point Splice Distribution Box Slim 16 Port For 1X8 1X16 Splitter 1FTTH Fiber Access Point Splice Distribution Box Slim 16 Port For 1X8 1X16 Splitter 2



Standard accessory

Plastic bracket, metal wall/pole mount kits, heat shrink protection sleeve, nylon tie, cable tie, label mark, buffer tube, etc.



How to open the box?

  1. Open the screw with a screwdriver.
  2. Open the bracket at right side, and loose the clip in front of the cable ports, open the front strip according to the picture direction.
  3. Take off the bracket from back, then can take off the lid by hand.

FTTH Fiber Access Point Splice Distribution Box Slim 16 Port For 1X8 1X16 Splitter 3

Care and safety

Be careful when handing cables and optical cords, especially in the management of bare optical fibers.

During accommodation of the basic units within the product, check the bending radius and nay other interference with other components while opening and closing the product.

Optical connectors must be clean before each connection and every re-connection.

Stay alert for laser radiation warnings, do not manipulate connectors when lasers are on and do not turn the connectors towards the eyes.



Pole mount

FTTH Fiber Access Point Splice Distribution Box Slim 16 Port For 1X8 1X16 Splitter 4
