Outdoor FTTH Fiber Cable Joint Box , 72 Cores Fusion Splitter Distribution Box

Outdoor FTTH Fiber Cable Joint Box , 72 Cores Fusion Splitter Distribution Box

  • High Light

    fiber optic junction box

    ,

    fiber optic cable junction box

  • Material
    PP+GF
  • Size(L*W*H)
    290*190*110mm
  • Max. Capacity
    24 Cores
  • Max. Splice Tray
    1 Pcs 24 Fiber Tray
  • Max. Spliter
    Micro Plc Splitter 1:16 Or 2pcs 1:8 Splitter
  • Cable Port
    4 Round Ports, 16pcs Drop Cable Ports
  • Cable Diameter
    4round:Φ7-φ18mm, 16pcs: 2*3mm
  • Waterproof Grade
    IP65
  • Application
    Wall Mount, Aerial Mount Or Pole Mount
  • Function
    Splitting, Distribution, Fusion
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO, ROHS,SGS
  • Model Number
    GJS-2022
  • Minimum Order Quantity
    100pcs
  • Price
    negotiable
  • Packaging Details
    1pc/ inner box, 6pcs/ carton box
  • Payment Terms
    Western Union, T/T, L/C, MoneyGram
  • Supply Ability
    100000pcs per month

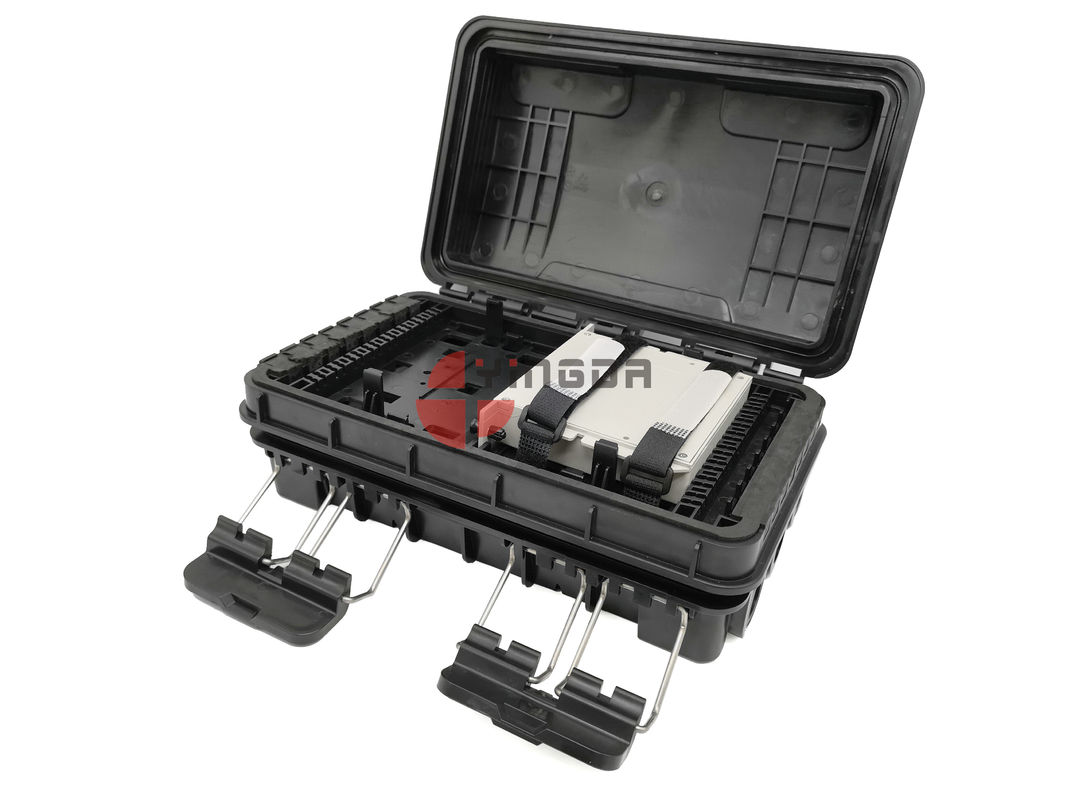

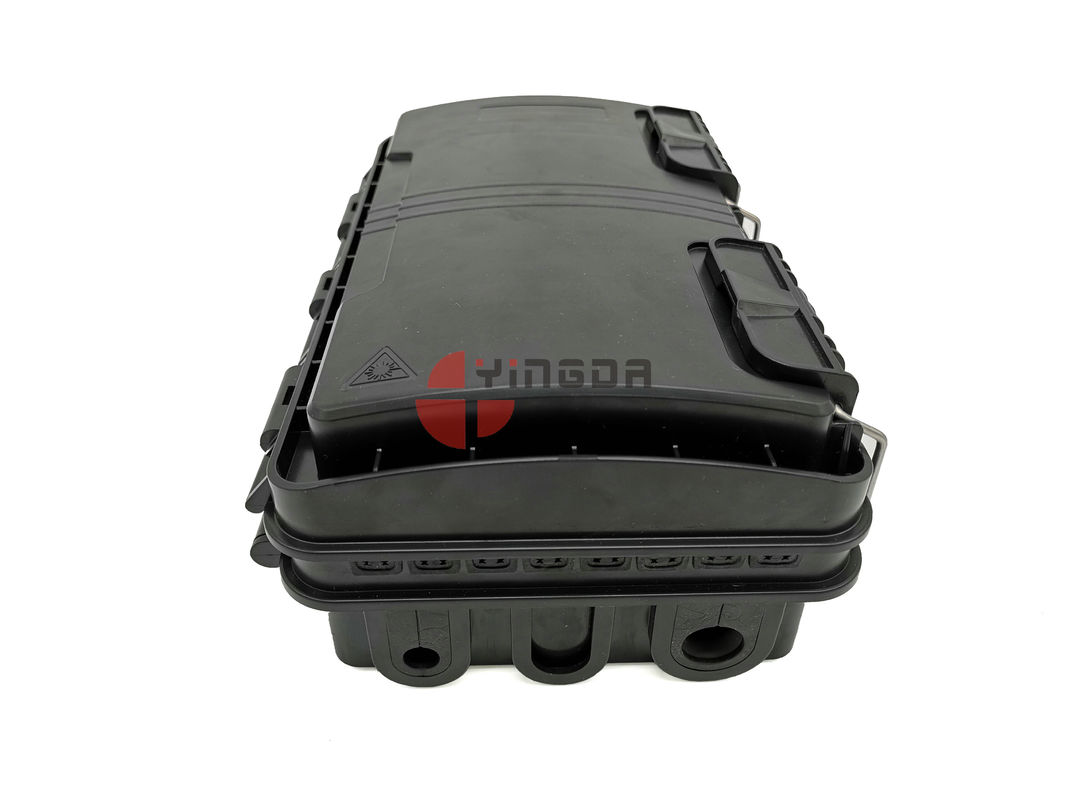

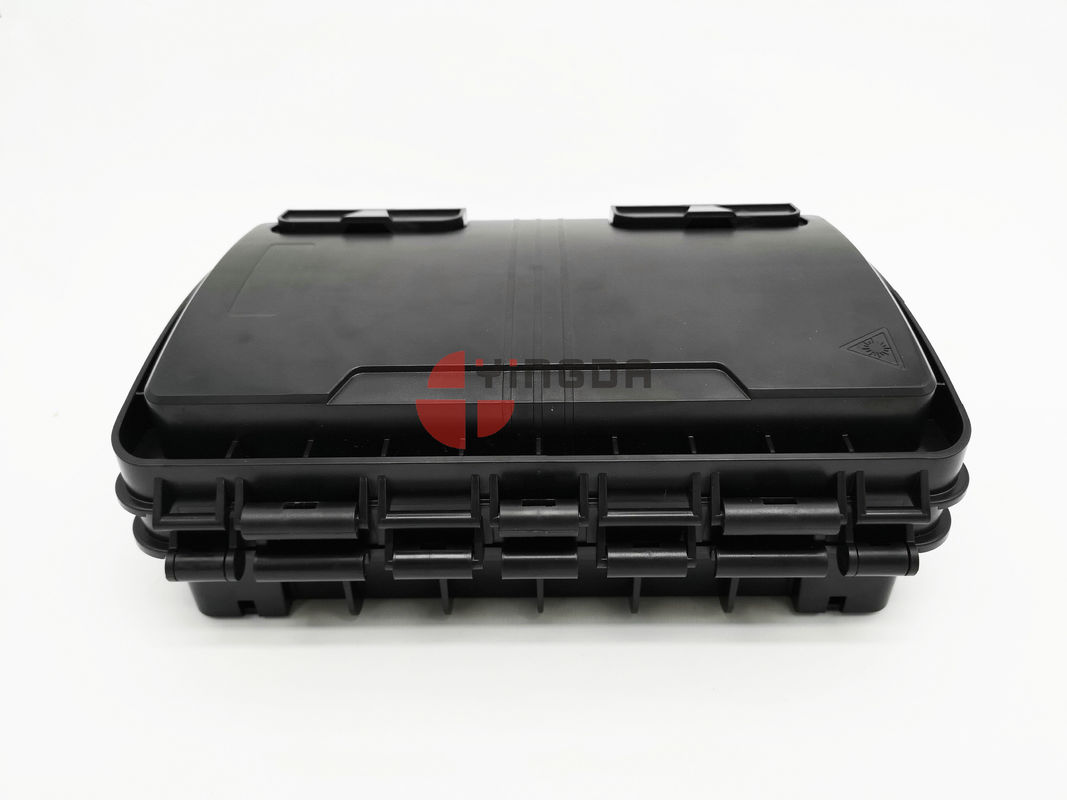

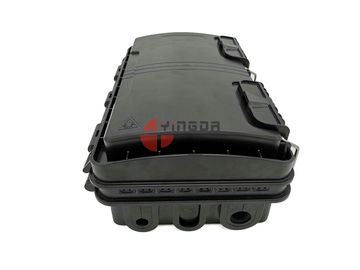

Outdoor FTTH Fiber Cable Joint Box , 72 Cores Fusion Splitter Distribution Box

1:8 Outdoor FTTH Fiber Optic Splitter Box, 72 Cores Fusion Splice Enclosure PP+GF





This splice closure integrates distribution and splitting in one, can realize the direct fusion and branching of the optical cable, and is suitable for the wiring connection in the optical communication equipment. Through the adapter and jumper to bring in the signal to realize optical distribution function, it is also suitable for fiber optic cables and pigtail protective connection; the unique three-tier design of the box body can be used as a fiber splitter or splice box; the flip board can be flipped≥180°,it is more convenient to install the box or maintenance. If remove the board, it can bed as a splice closure to meet different choices.



Features

  1. The product is made of high-quality impact resistant plastic and has a standard user interface that can be re-opened.
  2. Can accommodate two 1x8 PLC splitter LGX module or steel tube type;
  3. Anti-ultraviolet,anti- impact and waterproof function;
  4. Unique flip board, flip angle ≥ 180 °, fusion area and distribution area is more obvious, reducing the cable crossing;
  5. Fiber optic cable can go in and out of the box without cut the cable.

Specification

Model GJS-2022-S GJS-2022-F
Dimension (mm) 290*190*110 290*190*90
Cable diameter (mm) Φ7-φ18 Φ7-φ18
Cable port 4pcs round ports, 16pcs 2*3mm drop cable ports 2in 2 out
Max. Split ratio 2pcs 1x8 mini splitter /
Max. Splice tray 1pc 3pcs
Max. Fusion splice 24 cores 72 cores



More product details:

Outdoor FTTH Fiber Cable Joint Box , 72 Cores Fusion Splitter Distribution Box 0Outdoor FTTH Fiber Cable Joint Box , 72 Cores Fusion Splitter Distribution Box 1

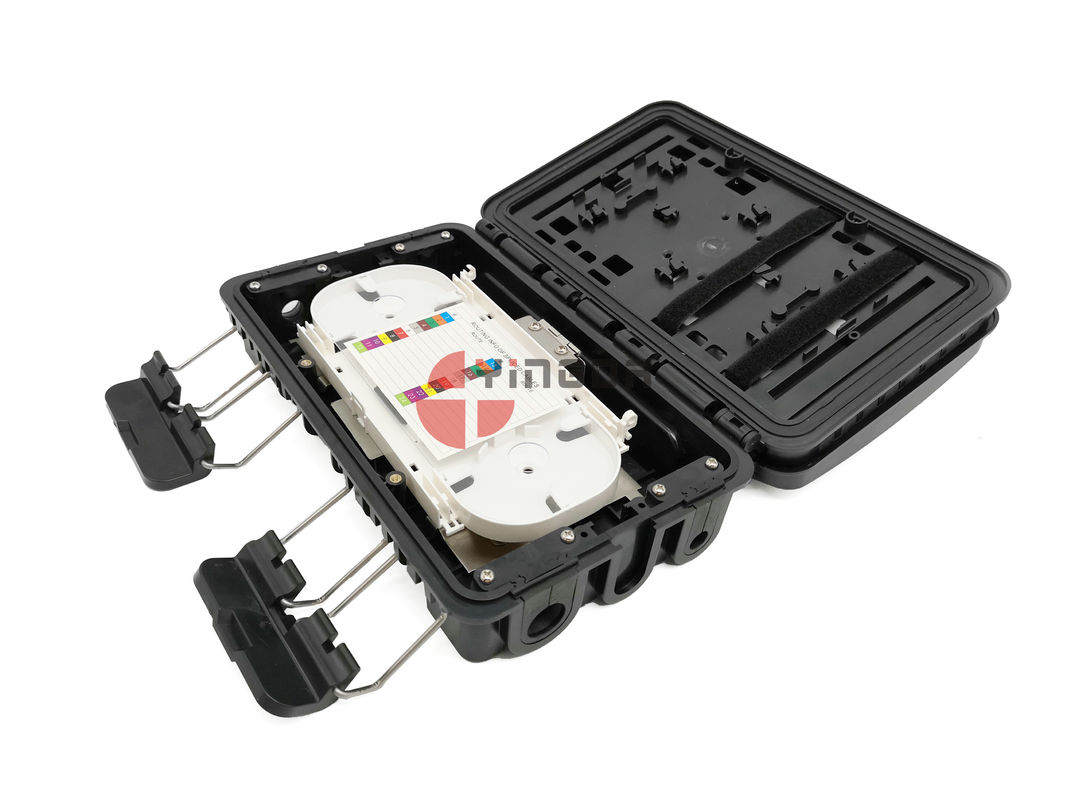

                   Model:GJS-2022-F                                                       Model:GJS-2022-S

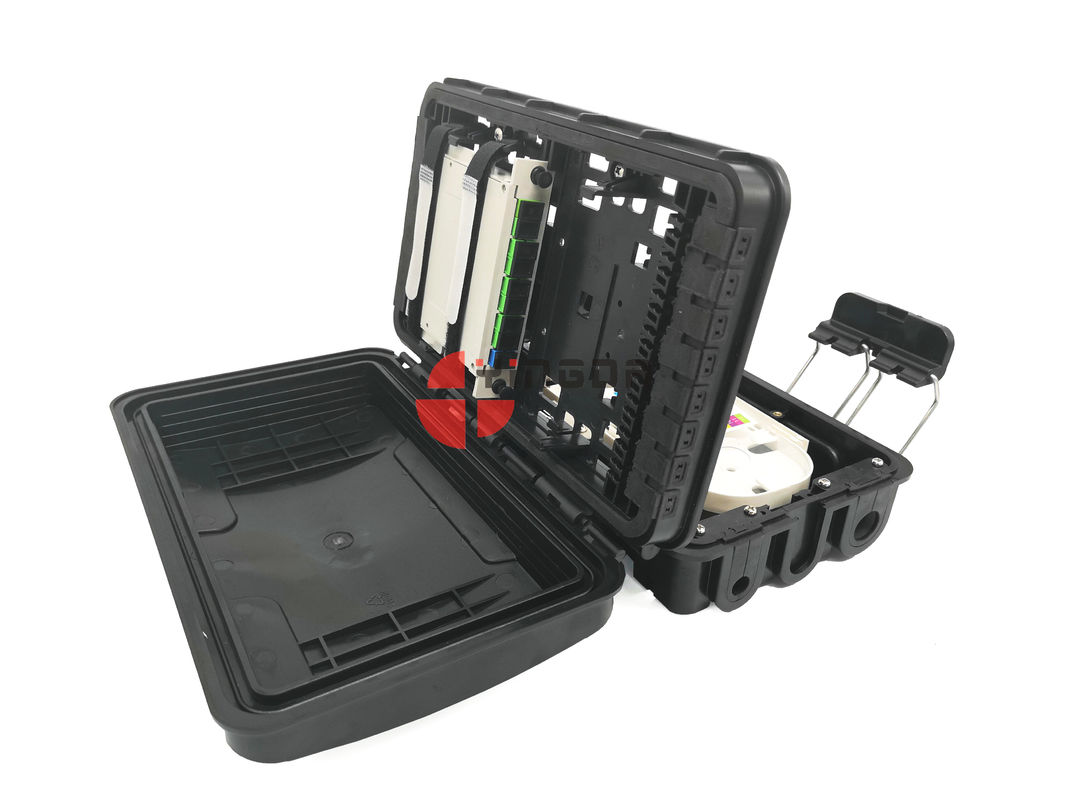

     the box can use as splice closure, maximum can                  the box can use as a splitting box,

        install 3pcs splice tray, 72 cores single fiber.                   maximum hold 1pc 1:16 micro splitter

                                                                                                    or 2pcs 1:8 spliter-- on the right

Technical parameters

  1. Optical fiber radius of curvature: ≥40mm
  2. Splice tray additional loss: ≤0.1dB
  3. Temperature range: -40°C ~ +60°C
  4. Anti side pressure: ≥2000N/10cm
  5. Impact resistance: ≥20N.m
  6. Protection class: IP65

Packing list



Main body 1 set
L=400mm bare fiber buffer tube 2 pcs
Hoop / clamp 2 pcs
3x100 nylon tie 26 pcs
Heat shrinkable tube L=60mm 2-72 pcs (configuration on demand)
User manual 1pc



More product in details:



Outdoor FTTH Fiber Cable Joint Box , 72 Cores Fusion Splitter Distribution Box 2  Outdoor FTTH Fiber Cable Joint Box , 72 Cores Fusion Splitter Distribution Box 3

BOX+accessories,standard: aerial mount kits, nylon tie, cable clamp, scews, heat shrink tube,etc.



Outdoor FTTH Fiber Cable Joint Box , 72 Cores Fusion Splitter Distribution Box 4  Outdoor FTTH Fiber Cable Joint Box , 72 Cores Fusion Splitter Distribution Box 5

splitter cassette 1:8, it can hold 1x2,1x4,1x8 withh SC adapters; 1piece 24 cores fusion splice tray



Outdoor FTTH Fiber Cable Joint Box , 72 Cores Fusion Splitter Distribution Box 6  Outdoor FTTH Fiber Cable Joint Box , 72 Cores Fusion Splitter Distribution Box 7

buckle/spring lock for box, special design, easy to operate and close;

4round ports, each 2round one at both side, with 16pcs drop cable ports
