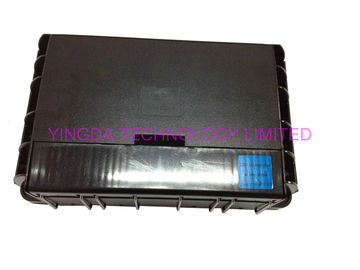

Wall Mounting Fiber Optic Enclosure FTTH GPON Mechanical Sealing With SC Adapters

Name: Wall Mounting Fiber Optic Enclosure FTTH GPON Mechanical Sealing With SC Adapters
Brand: YINGDA TECHNOLOGY LIMITED
SKU: GJS-2017
Price: 29.18 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	GJS-2017
MOQ:	100 PCS
Price:	Negotiable
Delivery Time:	7days after get payment
Payment Terms:	T/T, MoneyGram, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO

Material:

PC Or PP

Color:

Black

Seal:

Mechanical Sealing

Cable Ports:

3in 3out For Buffer Tube, 8in 8out For Drop Cable

Cable Diameter:

6 Ports: 8-16mm, 16 Ports: 2x3mm

PLC Splitter:

1x16, 1x8, 1x4, 1x2 Micro Optical Splitter

Adapter:

SC/UPC Max. 18 Pcs

Dimension:

310x207x97mm

Customer Model:

Sample:

Packaging Details:

1pc / box, 4pcs / carton box

Highlight:

fiber optic junction box

fiber optic cable junction box

Product Description

Splitting And Wiring Fiber Optical Splice Closure , 1x4, 1x2 Micro Optical Splitter

FTTH GPON Wall Mounting Horizontal Fiber Optic Enclosures 1x16 PLC Optical Splitter Box SC Adaptors

Model: GJS-2017

Splitting and Wiring fiber optical splice closure not only have the butt-joint and branching function,

but also have the function of optical cable splitting and wiring, suitable for the installation of main

optical cables and drop cables with different diameters.

Features:

The closure is spacious enough for winding and storing fibers.
It is closed and open with screws and clip design.
The body is made of high quality high strength plastic material.
Sample or fully completed with SC adapters or PLC splitter is ok.
The closure adopts horizontal mechanical sealing and advanced internal structure design.
It can be installed one 1:8 Blockless PLC splitter. 16pcs 2*3mm drop cable both ends in and out.
The patented sealing structure keep good sealing performance after re-entry and re-using.
Easy open and close of closure with very little tool. 24cores Fusing Splice available (Max.48cores)
Max. 9pcs SC adapter simplex.
3 Years guarantee.

Box drawing

Wall Mounting Fiber Optic Enclosure FTTH GPON Mechanical Sealing With SC Adapters 0

Applications:

Suitable for bunchy fibers 48 cores
Aerial mounting, wall-mounting
FTTH optical fiber distribution

Specifications

Type

Splice Tray Capacity

Splitter Tray

(Blockless Type PLC Splitter)

Number of adapters

Max. Capacity

Suitable Cable Dia.Allowed

Dimension

GJS-2017

(Bunchy)

24-48F

1pc1:8

9 pcs

24-48F

4-φ8~φ16mm

2-φ8~φ13mm

16-2*3mm

310*207*97mm

Accessory List

Wall Mounting Fiber Optic Enclosure FTTH GPON Mechanical Sealing With SC Adapters 1

English instruction manual	1pc
Special wrench	1pc
Insulation tape	1pc
Seal tape	1pc
Wall mounting kits	1sets
Earthing wire	1pc
Buffer tube	1pc
Labeling paper	1pc
Sand paper	1pc
Cable tie	4pcs
Sealing kits	3sets
Heat shrinkable protective sleeve	24pcs
Desiccant	2pcs

Wall Mounting Fiber Optic Enclosure FTTH GPON Mechanical Sealing With SC Adapters 2

Package: 1 piece / box, with all wall mounting accessories

Wall Mounting Fiber Optic Enclosure FTTH GPON Mechanical Sealing With SC Adapters 4

The cable is clip cover design, each side of the box have 3ports, 8pcs drop cable ports. optical fiber cable diameter is:

4ports:8-16mm;

2ports: 8-13mm;

16ports:2x3mm;

Wall Mounting Fiber Optic Enclosure FTTH GPON Mechanical Sealing With SC Adapters 6

inline fiber optic cable splicing splitter box with 1x16 PLC splitte SC/UPC connectors pre-termianted at factory.
The tray fixing on the box is clip design, no need to use speical tool to take off the tray, only by hand.
The upwards is the adapter panel for distribution, maximum capacity is 18 pieces SC fibre adaptors. the backwards is for cable splitting with micro optical plc splitter 1x 1:16 or 2 pcs 1:8 and reduandant fibers storage.
There is speical place designed to fix the PLC splitter tube, and clip it at the back of the splice tray.
when installation, please take carefully so as not to make the fiber broken.

Wall Mounting Fiber Optic Enclosure FTTH GPON Mechanical Sealing With SC Adapters 8

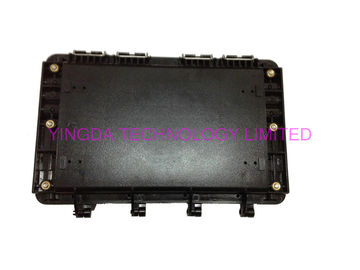

fiber optic splitter box front view fibre optic splitter box insideview

the distribution box is made of high strength engineer plastic PC material,with stainless steel bolts 6 pieces and special clip shaft to close and open the box.
