48 Core Mini FTTH Dome Fiber Optic Splice Closure for Aerial and Underground Networks
  • name
  • name
  • name
  • name

48 Core Mini FTTH Dome Fiber Optic Splice Closure for Aerial and Underground Networks

MOQ: 100 pcs
Price: negotiable
Standard Packaging: 1pc / box, 6pc / shipping box
Delivery Period: 7 days
Payment Method: T/T, Western Union
Supply Capacity: 1000000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
yingda
Certification
ISO CE
Model Number
GJS-2030
Material:
PP
Cable Port:
1oval 3 Round Ports
Fusion Capacity:
24 Cores Single Fiber
Dimension:
330*100mm
Cable Diameter:
Oval Port 30mm, Round Port 21mm
Max Capacity:
48cores
Seal Type:
Heat Shrink Seal Type
Temperature:
-40℃~+60℃
Highlight:

48 Core Fiber Optic Splice Closure

,

Aerial Fiber Optic Splice Closure

,

Underground Networks Fiber Optic Splice Closure

Product Description

24 Cores Mini FTTH Dome Fiber Optic Splice Closure 1 Oval 3 Round Ports Heatshrink Seal

48 Core Mini FTTH Dome Fiber Optic Splice Closure for Aerial and Underground Networks 048 Core Mini FTTH Dome Fiber Optic Splice Closure for Aerial and Underground Networks 1





This FTTH fiber optical mini dome ftth aerial cheap closures can be placed in aerial, underground, wall-mounting, hand hole mounting and duct-mounting applications.

Optical splice closures are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. They are applicable to situations such as overhead, man-well of pipeline, embedded situation etc. Comparing with terminal box, the closure requires much stricter requirement of seal. Sealing ring and
air valve are required for closure, but that are not necessary for terminal box.




Features

  • Small size, large capacity and convenient maintenance.
  • The enclosure casing is made of quality engineering plastics, good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
  • Each optical cable and fiber can be operated individually.
  • Elastic integrated seal ensure tightening fit
  • Aerial, underground, wall mount, pole mount,manhole is available
  • Innovative insert plates and fixing bolts, used to fix and seal FOSC, simple installation.
  • Better performance for protecting fiber cable splices in straight-through an branching.
  • The air valve is provided for the closre and used to check the sealing performance.



Specification



Model GJS-2030
Dimension(D*H)mm D100*H330
Max capacity 24 cores, each tray 12 fibers
Cable ports 1 oval 3round ports
Cable diameter oval ports dia. 30mm, round port: 21mm
Material PP
Temperature range - 400C ～ + 650C
Relative humidity ≤95%(40°C)
Atmospheric pressure 70kpa-106kpa
Connector loss (insert, repeat) ≤0.5db
Mechanical Durability Test ≥1000 times
Warranty time 20years



Product details

This mini splice closure is slim type, diamter only 100mm, good choice for pole mounted outdoor application, low cost but large capactiy.

Every splicing closure will configurate with heat shrink seal tubes, insolation tape, sand paper, bufrer tube, sleeves, alcohol bag, nylon tie, etc.

Standard mounting kits is wall mount(metal sheet with 1 strap and mounting hole itself), if need pole mount will add one more pole mount strap.

48 Core Mini FTTH Dome Fiber Optic Splice Closure for Aerial and Underground Networks 2



This mini closure can be aerial mounted too, there is 2holes on enclosure body itself, and logo print location, the clamp is special design and lock by hand. Also the hole body have many strength strips to make it suitable for outdoor application.

48 Core Mini FTTH Dome Fiber Optic Splice Closure for Aerial and Underground Networks 3

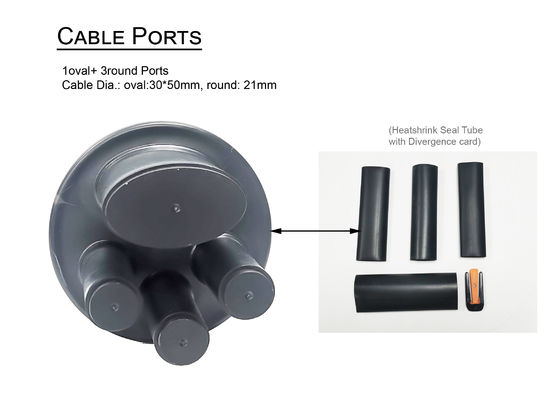

The optical fiber closure is mini dome type, 1oval 3round ports for most application. The diameter is very large, oval port is 30*50mm, round port can do maximum 21mm. All ports with heat shrink tubes when delivery.

48 Core Mini FTTH Dome Fiber Optic Splice Closure for Aerial and Underground Networks 4

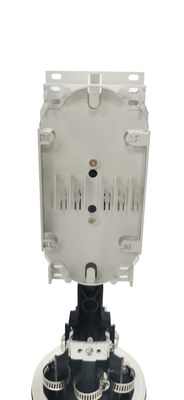

There are total 2pcs splice trays for fusion splicing, each tray can hold maximum 12cores optical fibers, total 24cores.Tray material is ABS, white color. Reasonable bend radius, and large fiber routing area and storage space. And the splice trays are fix on the box with screws in middle.

48 Core Mini FTTH Dome Fiber Optic Splice Closure for Aerial and Underground Networks 5

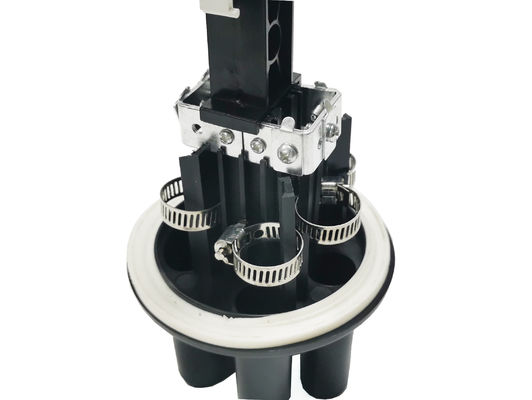

The internal with cable clamps, and metal kits to hold the cable kits like strength member outer sheath, FRP, metal, aramid yarn, etc.

This 24cores splice closure is with white rubber seal around the bottom to ensure it IP68 waterproof function.



48 Core Mini FTTH Dome Fiber Optic Splice Closure for Aerial and Underground Networks 6

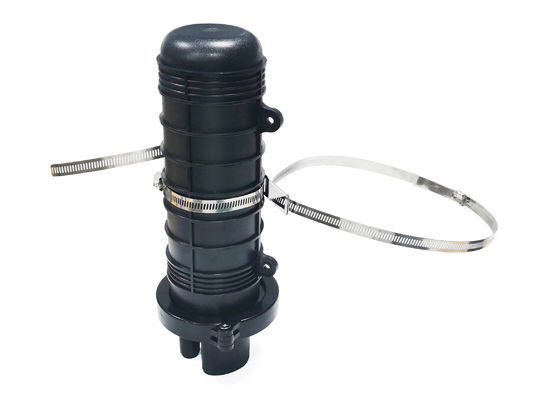

The mounting kits is 1metal sheet with stainless steel tapes around the body, if need pople mount, can add one more tape, see below picture:

48 Core Mini FTTH Dome Fiber Optic Splice Closure for Aerial and Underground Networks 7



Optical splice closure will be packed by individual carton box, with accessories and plastic bag, then in master carton box for shipment. Good protection during long term transporation by sea or by air.

48 Core Mini FTTH Dome Fiber Optic Splice Closure for Aerial and Underground Networks 8

48 Core Mini FTTH Dome Fiber Optic Splice Closure for Aerial and Underground Networks 9
