144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 4ports Arial Pole Wall Mount

Name: 144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 4ports Arial Pole Wall Mount
Brand: YINGDA TECHNOLOGY LIMITED
SKU: GJS-9501
Price: 28.00 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	GJS-9501
MOQ:	1PC
Price:	Negotiable
Delivery Time:	5days after pay
Payment Terms:	T/T or western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO, SGS, CE

Shape:

Dome Splice Closure

Max Capacity:

144 Fibers Optic Splice Box

Cable Port:

1 Oval 4 Round Ports/8round Ports

Cable Diameter:

Φ11mm～Φ25 Mm

Material:

PP Or PP+GF Body, ABS Splice Tray

Splice Tray Qty:

Max. 6 Pcs 24 Fiber Splice Tray

Closure Dimension:

460*φ225mm

Sealing Method:

Heat Shrink Tube

Packaging Details:

1pc / box, 4 pcs/ carton box

Supply Ability:

50,000pcs per month

Highlight:

144 Cores Dome Fiber Optic Splice Closure

Pole Wall Mount Dome Splice Closure

Heat Shrink Dome Splice Closure

Product Description

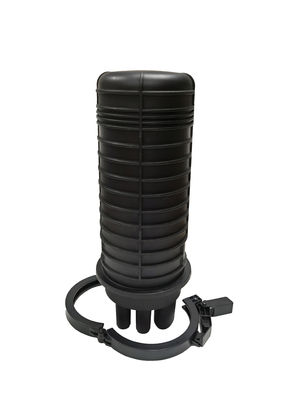

144 cores Heat Shrink Dome Fiber Optic Splice Closure 4ports Arial Pole Wall Mount

GJS-9501-B Fiber Optic Splice Closure (FOSC) is a dome type optical fiber cable splice closure. The cables and the

closure are sealed in a mechanical or heat shrink way with the help of compacting pressure from the plastic screws

(nuts) and the circular plastic hoop. This model is suitable for different methods of branch connection, including

branching and splicing of uncut cables, it can also be used for splitting function with adapters internal.

Dome Fiber Optic Enclosure Specification

Model

Tray

qty

Tray capacity /fibers

Total capacity /fibers

Dimension /mm

Entry port dia.

Raw material

GJS-9501

144

460*225

4 round ports available for cable dia.<11mm;

1 oval port available for 2pcs dia. ≤ 25mm

Modified PP +GF;

tray:ABS

144 Cores Fiber Optic Splice Closure Features

Different cable ports can be available, such 1oval+4round, 1oval+6round ,1 oval+8round in heat shrink or mechanical sealing,

good in practicality.

It applies to various ways of bifurcations including bifurcation of uncut cable.

It applies to the installation of Φ8~18 cable.

Ribbon cable is available, which can be installed with 6C or 12 C ribbon cable, corresponding max capacity is 432

core, 576 core.

Fiber Optic Joint Box GJS-9501B Highlight Design

144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 4ports Arial Pole Wall Mount 0

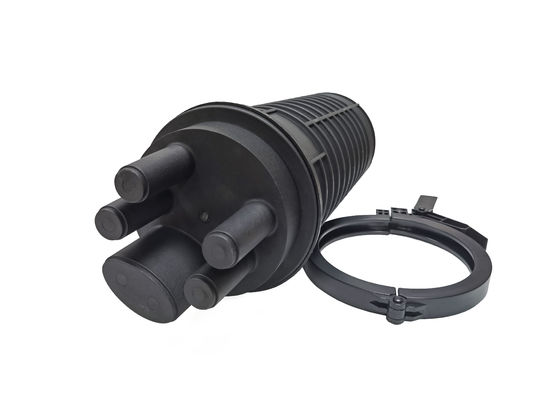

1.A various cable in/out ports are avaliable to meet your different needs, there are 1+4ports,1+6ports,1+8ports.

2.Mechanical seal and heat shrink seal are separately used on the box and cable ports. Protection grade is IP 68.

144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 4ports Arial Pole Wall Mount 2

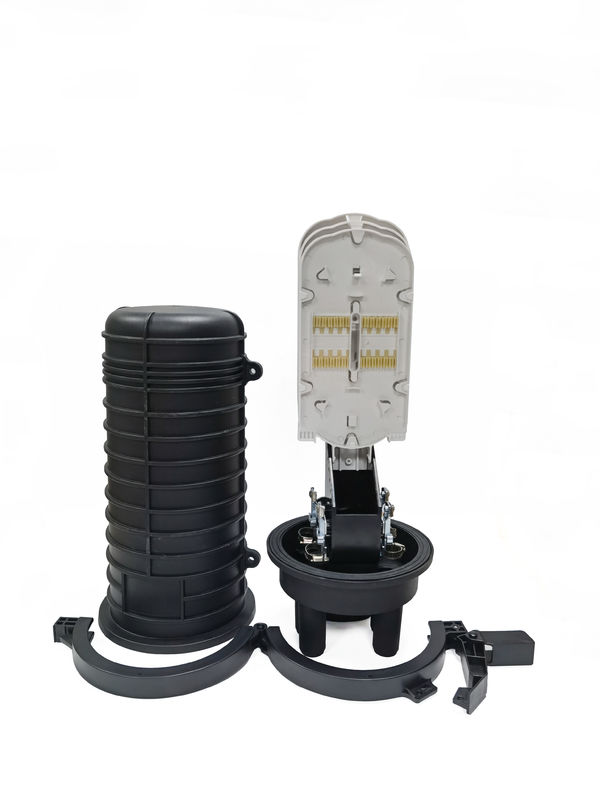

Max capacity is 144cores, can be load with 6pcs splice tray, 24cores single fiber in per tray.

144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 4ports Arial Pole Wall Mount 4

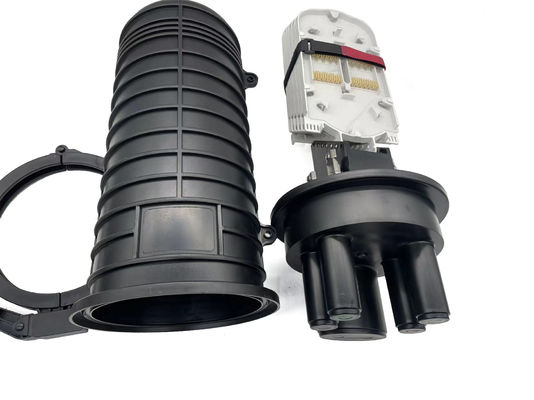

There are big space areas for customized your logo. Easy to open, no need tools

144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 4ports Arial Pole Wall Mount 6

Made of high quality PP+GF material, the net weight around 2.75KG

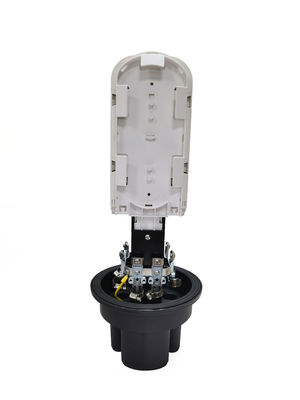

Detail pictures for fixed cable and storage fiber.

144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 4ports Arial Pole Wall Mount 7

Optional accessories

Hanging hook, Wall mounting (Duct mounting) kits, Pole Mounting kit, Grounding device, Air valve

144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 4ports Arial Pole Wall Mount 8

144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 4ports Arial Pole Wall Mount 9

Wide application like Underground, Aerial mount, Vault, Pole Mount,Wall Mount, etc ,will configurate as customer request.

FOSC Fiber enclosure Order Information:

GJS-9501-XX-XX-X

GJS-9501-Capacity(12,24,36,48,72fiber...)-splice tray(01-=1pc,02=2pcs...)-accessories(S=standard;O=optional,on customer request)--cable port(1+4,1+6,1+8), Seal type(heat shrink or mechanical sealing

More options are below

144 Cores Heat Shrink Dome Fiber Optic Splice Closure 1 Oval 4ports Arial Pole Wall Mount 10

Dome Mechanical 1+4ports Dome Heat Shrinkable 1+6ports Dome Heat Shrinkable 1+8ports
