Fiber Optic Splice Closure 48 Cores

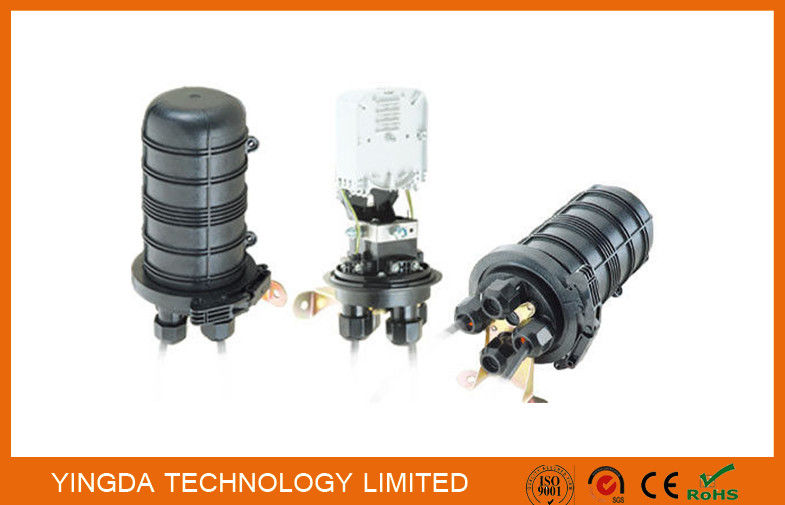

Name: Fiber Optic Splice Closure 48 Cores
Brand: YINGDA TECHNOLOGY LIMITED
SKU: D013
Price: 28.00 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	D013
MOQ:	100 PCS
Price:	Negotiable
Delivery Time:	5days after pay
Payment Terms:	T/T or western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO,SGS

Shape:

Dome

Max Capacity:

48cores Bunchy Fibers

Cable Port:

4round Ports

Cable Diameter:

Φ8mm～Φ16 Mm

Material:

Splice Tray Qty:

Max. 4pcs

Closure Dimension:

288*178 Mm

Weight:

2.0 Kgs

Carton Qty:

10 Pcs

Carton Size:

80*43*35 Mm

Packaging Details:

1pc / box, 10pcs/ carton box

Supply Ability:

50,000pcs per month

Highlight:

fiber optic splice enclosure

fiber optic joint closure

Mini Dome Fiber Optic Splice Closure

Product Description

FTTH Mini Dome Fiber Optic Splice Closure, Mechanical Splice Closure 48 Core

Fiber optical closure box sell point:

Mechanical sealing
Cable port: 4round ports
Size:288*178 mm
Splice tray: 4 x 12 Fibers
Max capacity: 48cores
Cable diameter: Φ8mm～Φ16 mm
Material: PC

Application: aerial, underground, pipeline,hand hole, wall mount, pole mount.

Operation conditions:

Temperatures: -40℃~+65℃
Humidity: ≤95% (at 40℃)
Air Pressure: 70kPa ~106kPa

Technical Specifications:

1.Seal performance: after the box is sealed, inflate to 100kPa inwards (inflation only apply to the models with the air hole), and then soak it in the water of normal temperature, after 15 minutes of steady observation, there is no bubble to overflow.

2. Insulation resistance: the insulation resistance between the metal work piece and the earth is greater than 20kMΩ.

3. Pressurization: there is no breakdown or flash over under 15kVdc/1min between the metal work piece and the earth.

4. The curvature radius of the fiber 40mm, without extra loss inside the splice tray.

5. It can bear the axial tensile strength no less than 1000N.

6. Lifetime: 25 years.

7. Other performances are all in accordance with the requirement of standard YD/T814-1998.

Dimension and capacity

Outside dimension (Height x Diameter)	288mm×178mm
Weight (excluding outside box)	1800g—1910g
Number of inlet/outlet ports	4 pieces
Diameter of fiber cable	Φ8mm～Φ16 mm
Capacity of FOSC	Bunchy: 4-48 (cores)
FOSC cover size	Height x Diameter: 208mm x 132mm
Fiber optic splice tray (FOST) capacity	Bunchy:4,6,8,12,(cores)
Fiber holding tray	1pc

Accessory list:

No.	item	Usage
1	Heat shrinkable protective sleeve	Protecting fiber splices
2	Nylon tie	Fixing fiber with protective coat
3	Earthing wire	Putting through between earthing devices
4	Abrasive cloth	Scratching fiber cables
5	Labeling paper	Labeling fibers
6	Special wrench	Installing and tightening nut of reinforced core and nut (plastic) of inlet/outlet tube
7	Measuring paper	To measure perimeter, of which its diameter is enlarged with seal tape
8	Seal tape	Enlarging diameter of fiber cable which fits in with gasket ring.
9	Insulation tape	Enlarging diameter of fiber cable for easy fixing
10	Metal hoop	For wall mounting and pole hugging
11	Buffer tube	Hitched to fibers and fixed with FOST, managing buffer.
12	Desiccant	Put into FOSC before sealing for desiccating air

Fiber Optic Splice Closure 48 Cores 0
