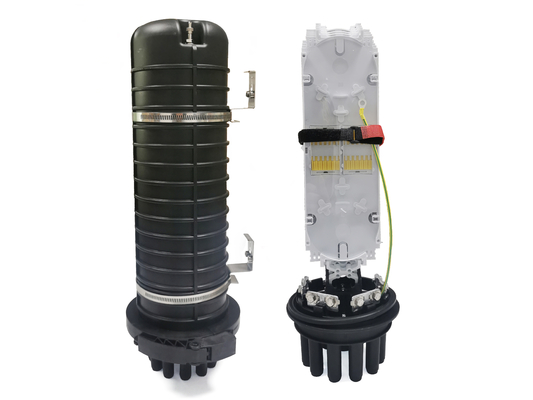

96 Cores Dome IP68 1 Oval + 8 Round Fiber Optic Splice Cable Closure Heat Shrinkable Seal

96 Cores Dome IP68 1 Oval + 8 Round Fiber Optic Splice Cable Closure Heat Shrinkable Seal

Products - Fiber Optic Splice Closure
  • High Light

    fiber optic splice enclosure

    ,

    fiber optic joint closure

  • Shape
    Dome Vertical Closure
  • Max Capacity
    96 Fibers
  • Cable Port
    1 Oval + 8 Round Port
  • Cable Diameter
    Φ10mm～Φ25 Mm
  • Material
    PP Body + ABS Tray
  • Splice Tray Qty
    Max. 4 Pcs
  • Closure Dimension
    522*185mm
  • Weight
    3.5 Kgs
  • Carton Qty
    6 Pcs
  • Carton Size
    60*49.5*61mm
  • Sealing Method
    Heat Srhinkable Tube
  • Waterproof Class
    IP68 Splice Closure
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,SGS
  • Model Number
    FOSC400B8 GJS-03H
  • Minimum Order Quantity
    100 PCS
  • Price
    Negotiable
  • Packaging Details
    1pc / box, 6 pcs/ carton box
  • Delivery Time
    15 days after pay
  • Payment Terms
    T/T or western Union
  • Supply Ability
    50,000pcs per month

96 Cores Dome IP68 1 Oval + 8 Round Fiber Optic Splice Cable Closure Heat Shrinkable Seal

  • 96 Cores Dome IP68 1 Oval + 8 Round Fiber Optic Splice Cable Closure Heat Shrinkable Seal
  • 96 Cores Dome IP68 1 Oval + 8 Round Fiber Optic Splice Cable Closure Heat Shrinkable Seal
  • 96 Cores Dome IP68 1 Oval + 8 Round Fiber Optic Splice Cable Closure Heat Shrinkable Seal
  • 96 Cores Dome IP68 1 Oval + 8 Round Fiber Optic Splice Cable Closure Heat Shrinkable Seal
  • 96 Cores Dome IP68 1 Oval + 8 Round Fiber Optic Splice Cable Closure Heat Shrinkable Seal
Get Price Contact Now

96 Cores Dome IP68 1 Oval + 8 Round Fiber Optic Splice Cable Closure Heat Shrinkable Seal Pole Wall  Aerial Mount





FOSC400B8 Fiber Optic Splice Closure (FOSC) is a member of dome closure series, the product adopts heat-shrinkable seals only using silicone rubber sealing gasket to ensure the good sealing performance of fiber cable with the diameter within 12mm. The function of the product is in the optical transmission link, to provide through, branching connection and related connecting protection; IP safety rate is IP68; he sealing method adopts screw pressure; This model is suitable for different methods of branch connection, including branching of uncut cable. It could be used for aerial, pole-mounting, wall-mounting and underground application. The model is excellent in sealing performance, easy for installation, wide application and is prior choice of fiber connection equipment.

96 Cores Dome IP68 1 Oval + 8 Round Fiber Optic Splice Cable Closure Heat Shrinkable Seal 0

Features:

  • May be used for cut, uncut and taut sheath applications.
  • May be used for all fiber optic cable.
  • Sheath retention & central strength member termination system included.
  • Ribbed closure construction-lightweight plastic offers strength and resistance to chemical and U.V attack
  • Installation and reentry with a minimum of tools
  • All hardware are captivated



Specifications



MODEL

Max capacity

(single fusion)

Splice tray

Dimension

(Hx D)

Cable ports

Max cable diameter

FOSC400B8 (GJS-03H)

96 cores

4pcs 24cores

540x180mm

1 oval port +

8 round ports

1 oval ports for 1 loop uncut) cable with max ￠25mm;

8 round ports, each port for 1 cable with max ￠10mm





Application

  • Underground, Aerial, Vault, Pole Mounting and Wall Mounting

96 Cores Dome IP68 1 Oval + 8 Round Fiber Optic Splice Cable Closure Heat Shrinkable Seal 1





Standard accessories

Dome, Base, clamp, O-ring,metal storage basket, Splice Tray,Heat shrink protective sleeve,buffer tube,Cable ties,Grounding wire, Labeling paper, Installation Manual, etc

96 Cores Dome IP68 1 Oval + 8 Round Fiber Optic Splice Cable Closure Heat Shrinkable Seal 2

1 set of Oval port closing kits:

Including 1 heat shrink fixing tube+ 2pcs of Aluminum paper(10cm x 10 cm)+sand paper

(2.5 x30mm)+ branching clip etc



8 sets of Round port closing kits:

Including 1 heat shrink fixing tube+1 pc of Aluminum paper(10cm x 10 cm)etc





Optional accessories

Hanging hook,Wall mounting(Duct mounting) kits,Pole Mounting kit,Grounding device,Air valve



96 Cores Dome IP68 1 Oval + 8 Round Fiber Optic Splice Cable Closure Heat Shrinkable Seal 3

----------------------------------------------------------------------------------------------------------------------------------------------------------------------



96 Cores Dome IP68 1 Oval + 8 Round Fiber Optic Splice Cable Closure Heat Shrinkable Seal 4

--------------------------------------------------------------------------------------------------------------------------------------------------------------------

96 Cores Dome IP68 1 Oval + 8 Round Fiber Optic Splice Cable Closure Heat Shrinkable Seal 5

Order information:

FOSC400B8-XX-XX-X

FOSC400B8-Capacity(12,24,36,48,72fiber...)-splice tray(01-=1pc,02=2pcs...)-accessories(S=standard;O=optional,on customer request)
