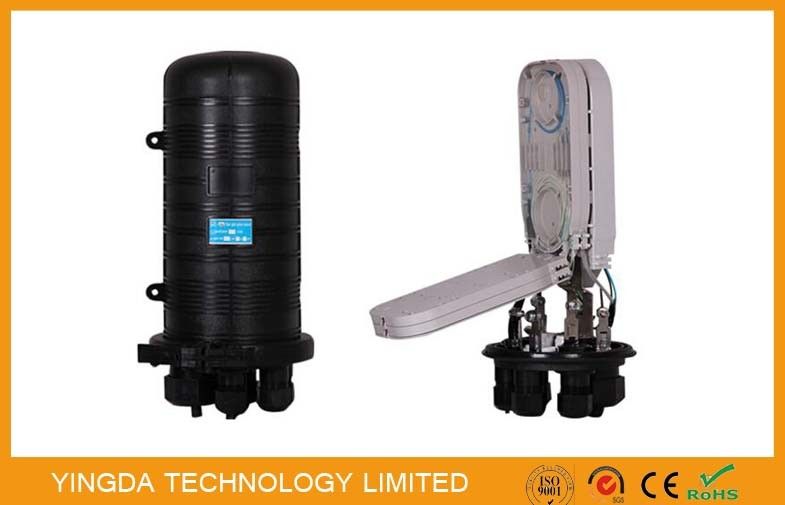

Duct - Mounting Fiber Optic Splitter Box Dome Mechanical For Drop Cable

Duct - Mounting Fiber Optic Splitter Box Dome Mechanical For Drop Cable

  • High Light

    fiber optic cable junction box

    ,

    fiber optic cable joint box

  • Cable Ports
    5ports
  • Cable Diameter
    4-Ø20 Mm; 1-Ø40 Mm
  • Material
    PC
  • Dimension
    425×Ø195mm
  • Installation Method
    Wall Mount, Pole Mount, Manhole, Underground,aerial
  • Splitter
    1:8 Bare PLC Splitter.
  • Splice Tray
    Max. 4 Pcs
  • Max Capacity
    96Fibers
  • Drop Cable
    Max. 16 Pcs Drop Cable Input/output
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS CE ROHS
  • Model Number
    GJS-2006
  • Minimum Order Quantity
    100PCS
  • Price
    NEGOTIABLE
  • Packaging Details
    1 pc / box, 6 pcs/ carton box
  • Delivery Time
    5-8 working days
  • Payment Terms
    Western Union, T/T, L/C

Duct - Mounting Fiber Optic Splitter Box Dome Mechanical For Drop Cable

Ftth Dome Mechanical Splitter Box, Drop Cable Distribution Box





Features

  1. The closure adopts mechanical sealing structure.

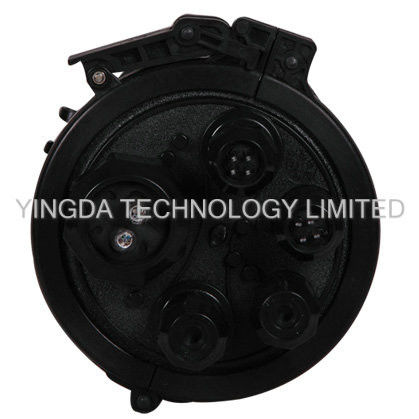

  2. There is one oval shaped cable port entrances in base.
  3. It can be installed 1:8 bare PLC splitter.
  4. There are different drop cable elements to be chosen (Φ5,Φ7,2*3).
  5. Max. 16 pcs drop cable input/output (special type can be customized).
  6. The patented sealing structure keep good sealing performance after re-entry and re-using.
  7. It could save the installation time and improve work efficiently.
  8. The big entrance is used for the sealing of uncut straight-through fiber cable, the small ports are used for branch fiber cable and drop cable.
  9. To adopt engineering PC plastic with high-strength to make the closure has longer life time
  10. and excellent sealing performance.



Applications:

  • Suitable for bunchy & fibers
  • It’s especially applicable to FTTH optical fiber distribution
  • Aerial, underground, wall-mounting, hand hole-mounting
  • Polet-mounting and duct-mounting



Specifications

Item

Side(mm)

Port Diameter

Splice Tray Capacity

Max.

Capacity

GJS-2006

(bunchy)

425×Ø195

4-Ø20 mm

1-Ø40 mm

4 pcs splice tray (12-24 per tray)

96F

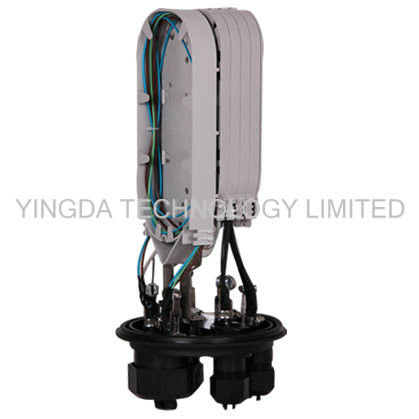

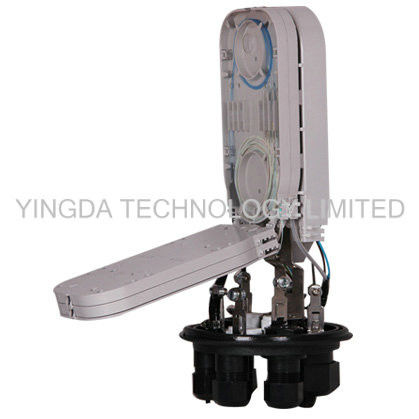

Product structure

Duct - Mounting Fiber Optic Splitter Box Dome Mechanical For Drop Cable 0
