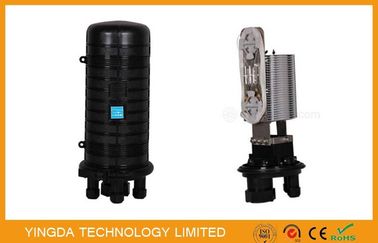

432 Core Outdoor Fiber Optic Splitter Box For Splitter Module 1 Oval + 3 Round Port
  • name
  • name
  • name
  • name

432 Core Outdoor Fiber Optic Splitter Box For Splitter Module 1 Oval + 3 Round Port

MOQ: 100PCS
Price: NEGOTIABLE
Standard Packaging: 1 pc / box, 6 pcs/ carton box
Delivery Period: 5-8 working days
Payment Method: Western Union, T/T, L/C
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS CE ROHS
Model Number
GJS-2003
Cable Ports:
4 Ports
Cable Diameter:
2×Ø20 Mm; 2×Ø40 Mm
Color:
Black
Dimension:
510*250mm
Installation Method:
Wall Mount, Pole Mount, Manhole, Underground,aerial
Splitter:
2*1:64 PLC Blockless PLC Splitter
Splice Tray:
Max. 36 Pcs
Max Capacity:
432Fibers
Highlight:

fiber optic cable junction box

,

fiber optic cable joint box

Product Description

432 Cores Outdoor Closure For Splitter Module 1 Oval +3 Round Port





Applications

  • Suitable for bunchy fibers
  • Aerial, underground, wall-mounting, hand hole-mounting Pole-mounting and duct-mounting
  • It’s especially applicable to FTTH optical fiber distribution



 Features:

  1. The closure adopts mechanical sealing structure.
  2. There is one oval shaped cable port entrances in base.
  3. The big entrance is used for the sealing of uncut straight-through
  4.  fiber cable, the small ports are used for branch fiber cable and drop cable.
  5. To adopt engineering PC plastic with high-strength to make the closure has longer life time
  6.  and excellent sealing performance.
  7. It can be installed two 1:64 PLC blockless PLC splitter in max.
  8. There are different drop cable elements to be chosen (Φ5,2*3).
  9. Drop cable input/output (special type can be customized).
  10. The patented sealing structure keep good sealing performance after re-entry and re-using.
  11. It could save the installation time and improve work efficiently.



Specifications



Model no.

Splice Tray

Capacity

Wiring  mdule

Qty & Max. Qty

Splitter Tray

 Max.

Type of Adaptor

& Max. Qty

Max.

Capacity

GJS-2003

(Bunchy)

36 pcs

(12f per tray)

None

1

None

432F



Product structure

432 Core Outdoor Fiber Optic Splitter Box For Splitter Module 1 Oval + 3 Round Port 0
