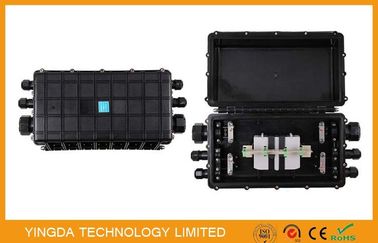

Bunchy Fiber Optic Splitter Box , 3 In 3 Out In -Line 1*32 Splitter Closures

Basic Information
Place of Origin: CHINA
Brand Name: YINGDA
Certification: ISO SGS CE ROHS
Model Number: FOSC-SH11
Minimum Order Quantity: 100PCS
Price: NEGOTIABLE
Packaging Details: 1 pc / box, 4 pcs/ carton box
Delivery Time: 5-8 working days
Payment Terms: Western Union, T/T, L/C
Contact Now
Detail Information
Cable Ports: 3in 3out Cable Diameter: 2×Ø40 Mm; 4×Ø20 Mm
Color: Black Dimension: 595x287x205 Mm
Installation Method: Wall Mount, Pole Mount, Manhole, Underground,aerial Splitter: Max. 1x32 Splitter Mini Module 0.9mm Type
Adapter: 60 FC; 72 SC; 77 ST; 76 LC adapters

Product Description

3 In 3 Out In-Line Splice Closures, 1*32 Splitter Distribution Enclosure





Description



Optical fiber splice closure (FOSC), also called fiber optic junction box or enclosures.

 It is the cable terminated access point, then connect with optical switch through the

optical fiber jumper.



The fiber optic enclosure can resist the nature of heat and cold, light, oxygen and

microbial material aging, and has excellent mechanical strength. The solid closure

housing and main components  are able to bear the worst environmental change,

also it is flame retardant, waterproof function, so as t protect the cable from the

vibration, impact, stretch and twist.





Features

  1. The closure adopts horizontal mechanical sealing and advanced internal structure design
  2. To adopt engineering PC plastic with high-strength to make the closure has longer life time
  3. and excellent sealing performance
  4. The closure is spacious enough for winding and storing fibers
  5. The patented sealing structure keep good sealing performance after re-entry and re-using
  6. It is multi-functions,with different PLC splitter and adaptor panels,it could work for branch splicing,
  7. splitting and patching
  8. It could save the installation time and improve work efficiently



Usage:

  1. Suitable for various cable overhead(aerial), pipeline, wall mount, pole mount,
  2. manhole, underground direct buried laying mode and branch connection.
  3. Suitable for structure cable in the termination computer room.
  4. The FOSC closure is usually suitable for indoor or outdoor non-open use,
  5. not suitable for outdoor open use, if you want to use like this,
  6. should take protective measures.
  7. Working temperature: indoor type: -5 ~+40 degree;
  8.                                    outdoor type: -20 -+60 degree.



Applications



  1. Suitable for bunchy fibers
  2. Aerial,underground,wall-mounting,hand hole-mounting and duct-mounting
  3. It is especially applicable to FTTH optical fiber distribution



Structure drawing

Bunchy Fiber Optic Splitter Box , 3 In 3 Out In  -Line 1*32 Splitter Closures



Specifications

Model

FOSC-SH11

Size (mm) LxWxH

595x287x205

Max. capacity

1-6 pcs of 011# tray (12/24fiber)

Max cable Ports

6ports (3in 3out)

Max cable diameter

2×Ø40mm; 4×Ø20mm

Adapter and holes of Front Panel

1 pc of adapter panel which can accommodate

60 FC adapters/72 SC adapters/

77 ST adapters/ 76 LC adapters





More product show:

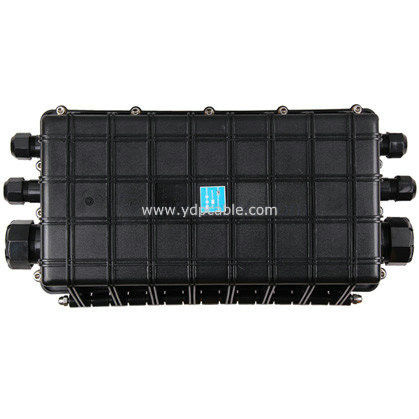

Bunchy Fiber Optic Splitter Box , 3 In 3 Out In  -Line 1*32 Splitter Closures
