24F 48F Optical Fiber Joint Enclosure Horizontal Inline 2 Cable Glands 96 Cores Wall Mount
  • name
  • name
  • name
  • name
  • name

24F 48F Optical Fiber Joint Enclosure Horizontal Inline 2 Cable Glands 96 Cores Wall Mount

MOQ: 100 units
Price: Negotiable
Standard Packaging: 1pc / box, 10 pcs / carton box
Delivery Period: 7days after get payment
Payment Method: T/T, Money Gram, Western Union
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
GJS-H003
Dimension:
280x200x90mm
Cable Ports:
2 Cable Glands
Max Capacity:
96 Cores Bunchy Fiber Splice Enlcosure
Cable Diameter:
8-23mm
Tray No:
4 Pcs
Tray Capacity:
24F Dual Fiber
Highlight:

24F fiber joint enclosure

,

Horizontal Inline fiber joint enclosure

,

96 Cores fiber joint enclosure

Product Description

24F 48F Optical Fiber Joint Enclosure Horizontal Inline 2 Cable Glands 96 Cores Wall Mount





96F Optical Fiber Joint Enclosure Features

  • Advanced internal structure design for cable distribution and fusion splice
  • made of high quality engineer plastic, long time span
  • box cover with strengthem strips, anti-UV, water tight with waterproof seals all round the box, ports and the locking blots.
  • Easy to re-enter, it never requires re-entry tool it
  • The closure is spacious enough for winding and storing fibers, small size, light weight, large capacity to 96cores.
  • Fiber Optic Splice Trays(FOSTs) are design in SLIDE-IN LOCK and its opening angle is about 90°
  • The curved diameter meets with international standard
  • Easy and fast to increase and reduce FOSTs

Specification

MODEL GJS-H003
Dimension (L*W*D) 280x200x90mm
Max capacity 96 Cores
Splice tray qty 4 pcs
Splice tray capacity 24 fibers
Cable ports 2 cable glands
Cable diameter Φ8-14mm
Weight 1.5kg



24F 48F Optical Fiber Joint Enclosure Horizontal Inline 2 Cable Glands 96 Cores Wall Mount 0

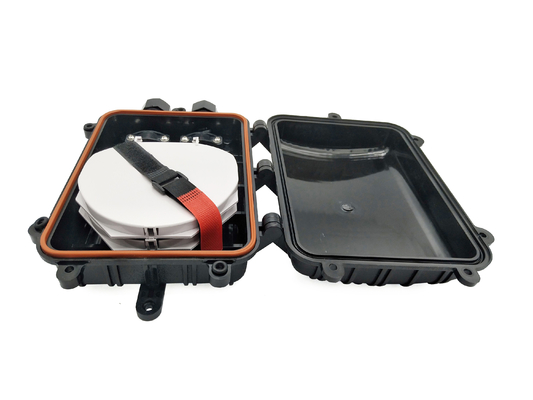

Standard mounting kits at back, hinge design to ensure the box and cover in a unibody, no need to remove, there are rubber seals for locking blots and waterproof rubber seal ring all round the box ensure high quality waterproof function, even in harsh outdoor environment; The galvanized steel cable fixtures and earthing devire make sure the cable enter in place, not moveable after long time use.

-----------------------------------------------------------------------------------------------------------------------------------------------------

24F 48F Optical Fiber Joint Enclosure Horizontal Inline 2 Cable Glands 96 Cores Wall Mount 1

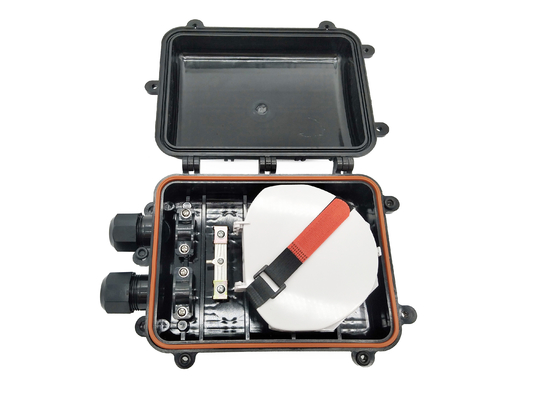

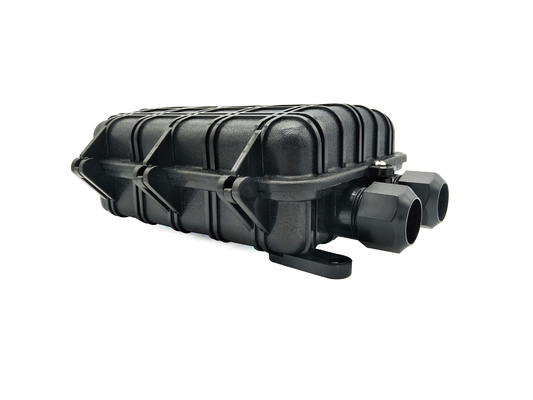

There are 2 cable glands with grommets inside, better protection, each port can hold maximum cable diameter:φ8-φ14mm

-----------------------------------------------------------------------------------------------------------------------------------------------------

24F 48F Optical Fiber Joint Enclosure Horizontal Inline 2 Cable Glands 96 Cores Wall Mount 2

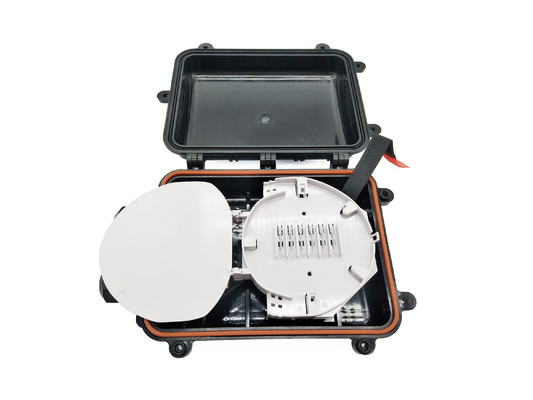

Though ftth mini closure is small size, but large capacity to 96cores with 4trays overlapped, protection sleeve slots to 24pcs max.

For better protection, there can be velcro tape to make them together before delivery.

-----------------------------------------------------------------------------------------------------------------------------------------------------

Main component

No. Name of components Quantity Usage Remarks
1 FOSC cover 1 piece Protecting fiber cable splices in whole

Internal diameter:

205x146 (mm)
2 FOSC bottom 1 piece Fixing reinforced core, fiber cable and FOST

Internal diameter:

205x146 (mm)
3

Fiber optic splice tray

(FOST)

 max. 4 pieces (bunchy) Fixing heat shrinkable protective sleeve and holding fibers

Suitable for:

Bunchy:6,12,24(cores)
4 Integrated seal fitting 1 set Sealing between FOSC cover and FOSC bottom
5 Port plug 2 pieces Sealing empty ports
6 Earthing deriving device 1 set Deriving metallic components of fiber cable in FOSC for earthing connection. Configuration as per requirement.


Main accessories and special tools

24F 48F Optical Fiber Joint Enclosure Horizontal Inline 2 Cable Glands 96 Cores Wall Mount 3

No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable protective sleeve   Protecting fiber splices Configuration as per capacity
2 Nylon tie   Fixing fiber with protective coat Configuration as per capacity
3 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
4 Hanging hook 1 set For aerial use Configuration as per requirement
5 Fixing device 1 set   Configuration as per requirement
6 Earthing wire 1 piece Putting through between earthing devices To put through while required
7 Abrasive cloth 1 piece Scratching fiber cable
8 Labeling paper 1 piece Labeling fiber
9 Special wrench 1 piece Fixing octagonal nut (plastic)
10

Buffer tube



 To be decided by customers Hitched to fibers and fixed with FOST, managing buffer Configuration as per requirement
11 Desiccant 1 bag Put into FOSC before sealing for desiccant air.


Application

  • Aerial, underground, pipeline, handhole.
