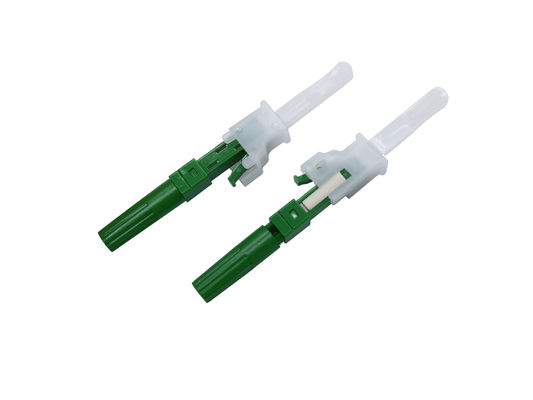

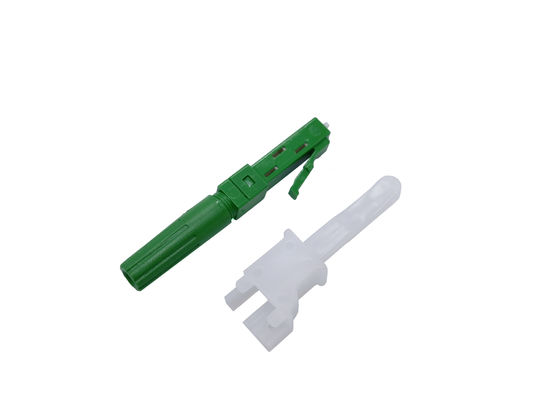

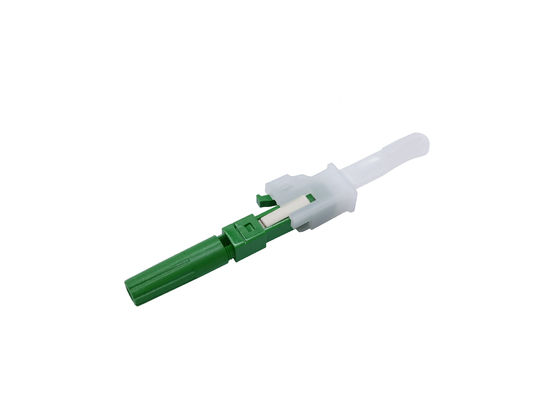

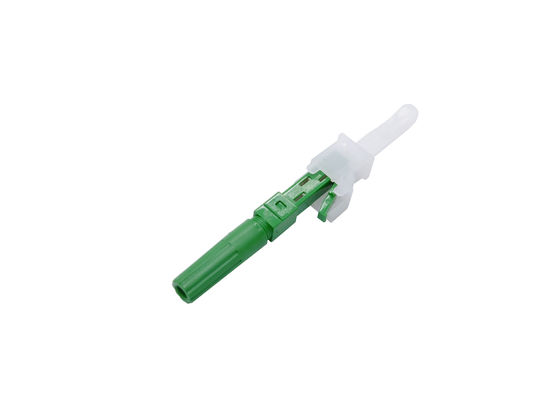

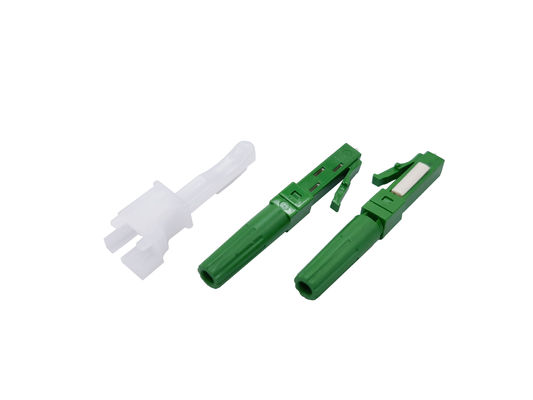

LC APC UPC Field Installable Fast Connector Single Mode 2.0*1.6mm Flat Drop Cable

Name: LC APC UPC Field Installable Fast Connector Single Mode 2.0*1.6mm Flat Drop Cable
Brand: YINGDA TECHNOLOGY LIMITED
SKU: YDFIC-002-LC/APC
Price: 0.19 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	YDFIC-002-LC/APC
MOQ:	10 PCS
Price:	0.19USD-0.72USD
Delivery Time:	3-5 working days after get payment
Payment Terms:	T/T or western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO, CE, ROHS

Material:

PEI

Length:

45mm

Suitable For Cable:

2.0*1.6mm, 3mm, 0.9mm, 250um Bare Fiber

Color:

Green, Blue

Feature:

White Long Dust Cap

Ferrule:

APC UPC Ceramic Ferrule

Fiber Type:

Single Mode 9/125um

Fiber Count:

1 Core

Application:

FTTH, FTTX, Data Center

V Groove Material:

Metal

Product Name:

LC APC UPC Fiber Connector,LC APC UPC Fiber Optic Connector,fiber Cable Connectors,field Installable Connector

Packaging Details:

1pc /bag,1000 pcs / carton box

Supply Ability:

10,000 pcs per day

Highlight:

APC UPC Field Installable Connector

Single Mode Field Installable Connector

APC UPC fiber optic connectors

Product Description

1 Core APC UPC Field Installable Connector Single Mode 2.0*1.6 Mm Flat Drop Cable

LC APC Fast Field Mechanical Connector Optical Fiber Single mode 1 Core 2.0*1.6 mm Flat Drop Cable

LC/APC Fast Field Installation Connector also called Mechanical connector, most people call it fast connector for short. It is a kind of optical on-site connector, used in field wiring operation and FTTH project where need fast and stable connection. Because it has embedded fiber and pre-polished and heat oven ferrule, no need additional glue curing or grinding, thus offer quicker help to installation, maintenance,repair and fiber to the home for engineers.

The pre-embedded fiber and prepolished and cured ferrule ensures the ferrule end face good quality, and effectively protect the

user equipment interface from damage, reduce the connection attenuation loss. This type Metal V Groove ensures the high

performance during high and low temperature.

LC APC UPC Field Installable Fast Connector Single Mode 2.0*1.6mm Flat Drop Cable 0

Specification

ITEM	Technical Parameters
Applicable for	2.0*1.6mm drop cable, indoor cable 3mm, 1.6mm, 0.9MM, 250um bare fiber
Optical fiber diameter	125μm ( 657A & 657B )
Tight buffer diameter	250μm
Fiber mode	Single mode
Operation time	About 100s(no fiber cut)
Insert loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	> -45dB
Fastening strength of naked fiber	>4 N
Fastening strength of naked fiber holder	>8 N
Tensile strength	>10 N
Using temperature	-40～+75℃
On-line tensile strength (20 N)	△ IL ≤ 0.5dB △ RL ≤ 5dB
Mechanical durability (500 times)	△ IL ≤ 0.5dB △ RL ≤ 5dB
Drop-off test (drop-off height 4m, once per direction, totally 3 times)	△ IL ≤ 0.5dB △ RL ≤ 5dB

Features

Do not need hot melt, pre-polished and curing ceramic ferrule, high quality, ensure <0.5dB loss and low return loss.
Metal V groove, unique design, it can effectively prevent the volatilization of matching gel and prolong the service life
Good resistance to high and low temperature changes, stable and reliable performance
Cable stripper length: 15mm coating / 10mm bare fiber
NOT ONLY USE FOR 2.0*1.6MM, but also for bare fiber 250um. 0.9mm, 3mm round cable.
Can made any length of fiber optic patch cord on-site
On-site installation, simple and quick operation, only 2 minutes
Mechanical and environmental performance conforms to GR-326-CORE standard.

LC APC UPC Field Installable Fast Connector Single Mode 2.0*1.6mm Flat Drop Cable 1

Application

Fiber Optic Test
Fiber Optic Distribution Frame use
FTTH network
CATV / LAN network
Fiber Optic Telecommunication system
Fiber Data Transmission network

On-site constrction toolkits can be offer, please click the link below:

LC APC UPC Field Installable Fast Connector Single Mode 2.0*1.6mm Flat Drop Cable 4
