288 Cores Dome Fiber Optic Fusion Splice Closure Box  1Oval 6 Round Ports Aerial Manhole Duct

288 Cores Dome Fiber Optic Fusion Splice Closure Box 1Oval 6 Round Ports Aerial Manhole Duct

  • High Light

    fiber optic splice enclosure

    ,

    fiber optic joint closure

  • Material
    PP GF Splice Closure
  • Dimension
    Height: 515mm, Diamter:310mm
  • Max Capacity
    288 Fibers, Ribbon 864 Cores
  • Splice Tray Qty
    16 Cores Single Layer, 32 Cores Dual Fiber
  • Splice Tray Material
    ABS Gray
  • Cable Port
    1 Oval + 6 Round Ports
  • Cable Diameter
    5-38mm
  • Box Shape
    Dome Splice Closure
  • Splice Tray Qty
    12pcs
  • Installation Method
    Aerial, Pole, Wall, Duct, Man Hole
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,SGS
  • Model Number
    GJS-D023
  • Minimum Order Quantity
    100 Pieces
  • Price
    16-40
  • Packaging Details
    1pc /box, 4pcs /carton box
  • Delivery Time
    15 days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    10000pcs per month

288 Cores Dome Fiber Optic Fusion Splice Closure Box 1Oval 6 Round Ports Aerial Manhole Duct

288 Cores Dome Fiber Optic Fusion Splice Closure Box 1Oval 6 Round Ports Aerial Manhole Duct





Fiber Optic Splice Closure ( FOSC GJS-D023 ) is large capcity of splice enclosures, which is widely used in fttx networks, it maximum can use 24pcs splice trays at both sides of the supporting plates in middle.



Feature:
1. For aerial,buried,wall and pipe wall people use wells
2. Ring using a special material that can be repeatedly opened,re-use
3. Splice tray easy to use page design
4. Quick way to make use of open sealed maintenance easier
5. Valve and grounding devices can be installed
6. Advanced internal structure design
7. Easy to re-enter, it never requires re-entry tool it


Application

  • The Scope of application is :aerial,underground,duct, wall mounting, pipeline,hand hole, etc.
  • The ambient temperature ranges from -40 to 65℃.

Specification

Size (L×W×H) Cable ports Cable Diameter Max. Capacity Core capacity per tray



515×310mm



7pcs (1oval + 6round ports )





φ38mm×1

Bunchy: 288 cores

Ribbon: 864 cores



Bunch:24-288(cores)

Ribbon:up to 864(cores)

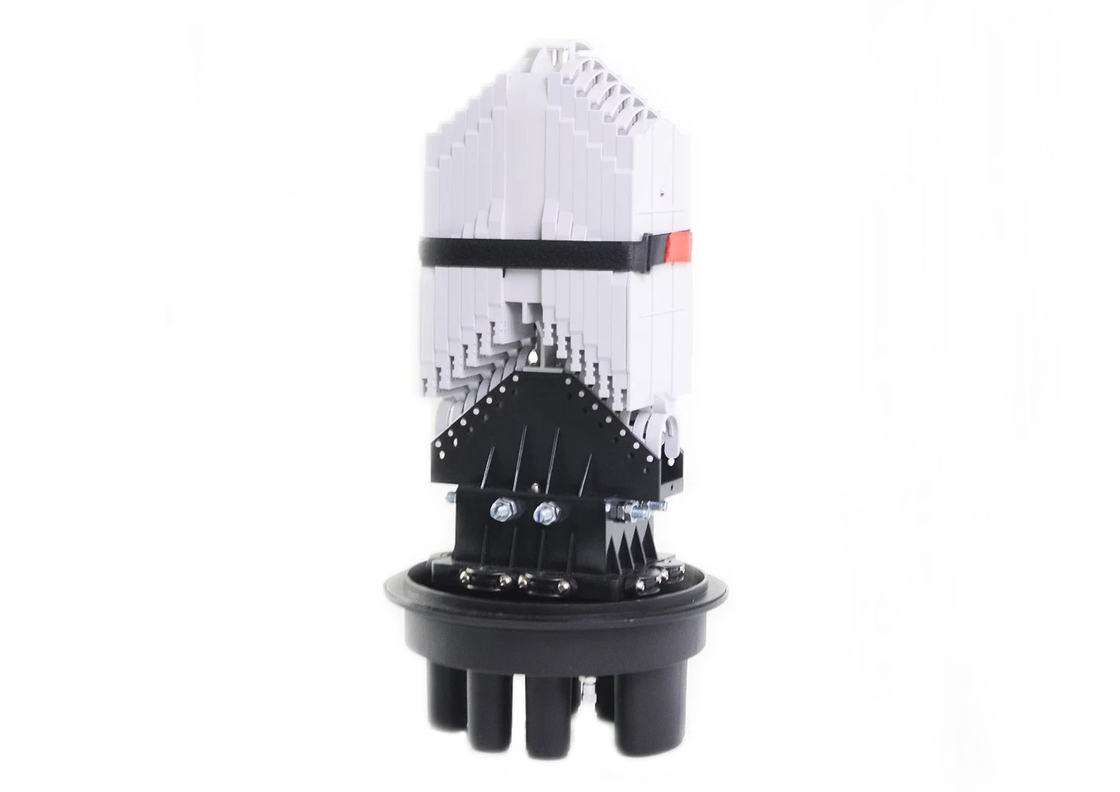

288 Cores Dome Fiber Optic Fusion Splice Closure Box  1Oval 6 Round Ports Aerial Manhole Duct 0

---------------------------------------------------------------------------------------------------------------------------------------------------

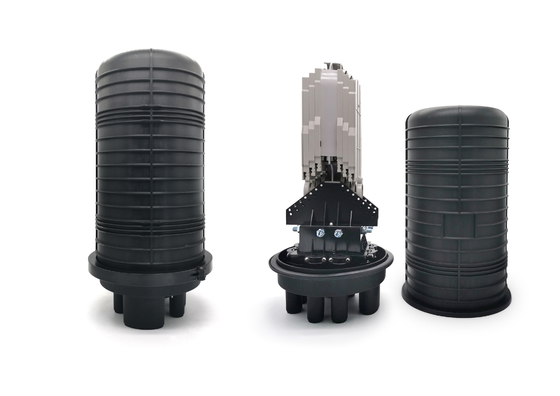

288 Cores Dome Fiber Optic Fusion Splice Closure Box  1Oval 6 Round Ports Aerial Manhole Duct 1

--------------------------------------------------------------------------------------------------------------------------------------------------



Fusion Splice Trays



Model No. Capacity Size( L×W×H)



FOST003

Bunchy single: 24 cores



120×196×10mm

Ribbon

in normal:6 pieces

max.:12 pieces

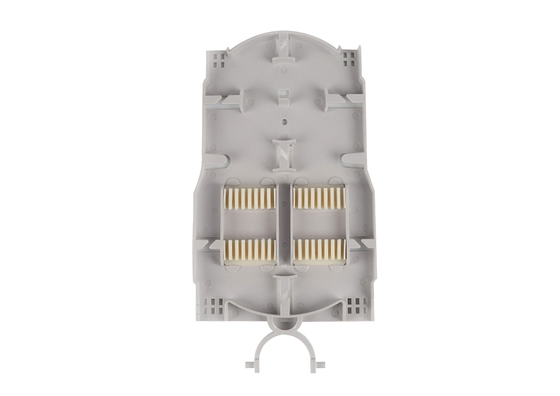

288 Cores Dome Fiber Optic Fusion Splice Closure Box  1Oval 6 Round Ports Aerial Manhole Duct 2

----------------------------------------------------------------------------------------------------------------------------------------------------



Main Component
No. Name of components Quantity Usage
1 FOSC(cover) 1 set Protecting fiber cable splices in whole
2

Fiber optic

splice tray(FOST)



Fixing heat shrinkable protective

sleeve and holding fibers

3 Fiber holding tray 1 pcs

Holding fibers with protective

coat

4 Base 1 set Fixing internal and external structure
5 Plastic hoop 1 set Fixing between FOSC cover and base
6 Seal fitting 1 set Sealing between FOSC cover and FOSC bottom

288 Cores Dome Fiber Optic Fusion Splice Closure Box  1Oval 6 Round Ports Aerial Manhole Duct 3



Main accessories and special tools
7 Heat shrinkable protective sleeve(single)and Branching clip   Protecting fiber splices Configuration as per capacity
8 Heat shrinkable protective sleeve   Protecting fiber splices Configuration as per capacity
9 Nylon tie   Fixing fiber with protective coat Configuration as per capacity
10 Earthing wire 1 piece Putting through between earthing device
11 Abrasive cloth 1 piece Scratching fiber calbes
12 Labeling paper 1 piece Labeling fiber
13 Metal hoop 1 set For wall mounting and pole hugging
14 Heat shrinkable fixing sleeve(mass)   Fixing and sealing mass of fiber cable Configuration as per requirement
15 Aluminum-foil paper 1 piece Protect the bottom of FOSC



Pack information

4PCS/ CARTON BOX, CARTON SIZE:58×58×54.5CM, 15.6KG/CARTON
