Fiber Cable Joint Box
Created with Pixso. PP + GF Fiber Cable Joint Box Waterproof 290 * 190 * 110mm 24cores Capacity
PP + GF Fiber Cable Joint Box Waterproof 290 * 190 * 110mm 24cores Capacity
  • Name
  • Name
  • Name
  • Name
  • Name

PP + GF Fiber Cable Joint Box Waterproof 290 * 190 * 110mm 24cores Capacity

Brand Name: YINGDA
Model Number: GJS-2022
MOQ: 100pcs
Price: negotiable
Payment Terms: Western Union, T/T, L/C, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO, ROHS,SGS
Material:
PP+GF
Size(L*W*H):
290*190*110mm
Max. Capacity:
24cores
Max. Splice Tray:
1 Pcs 24fiber Tray
Max. Spliter:
Mini Splitter 1x16 Or 2pcs 1:8 Splitter
Cable Port:
4 Round Ports, 16pcs Drop Cable Ports
Cable Diameter:
4round:Φ7-φ18mm, 16pcs: 2*3mm
Waterproof Grade:
IP65 Protection Level
Color:
Black

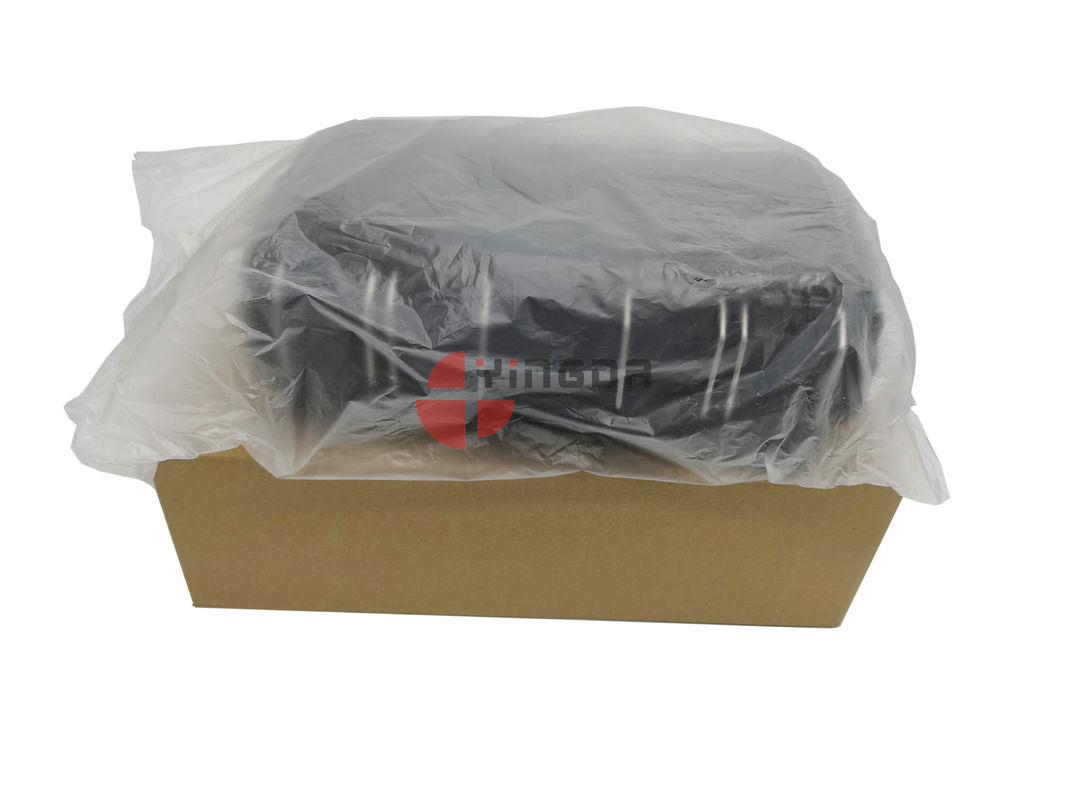

Packaging Details:
1pc/ inner box, 6pcs/ carton box
Supply Ability:
100000pcs per month
Highlight:

fiber optic junction box

,

fiber optic cable junction box

Product Description

Nap Outdoor 1 6Cores FTTH Fiber Optic Splitter Splice Clsoure PP+GF Waterproof Distribution Box



GJS-2022 Fiber Optic Splice / Splitter Closure





This splice closure integrates distribution and splitting in one, can realize the direct fusion and branching of the optical cable, and is suitable for the wiring connection in the optical communication equipment. Through the adapter and jumper to bring in the signal to realize optical distribution function, it is also suitable for fiber optic cables and pigtail protective connection; the unique three-tier design of the box body can be used as a fiber splitter or splice box; the flip board can be flipped≥180°,it is more convenient to install the box or maintenance. If remove the board, it can bed as a splice closure to meet different choices.



PP + GF Fiber Cable Joint Box Waterproof 290 * 190 * 110mm 24cores Capacity 0PP + GF Fiber Cable Joint Box Waterproof 290 * 190 * 110mm 24cores Capacity 1

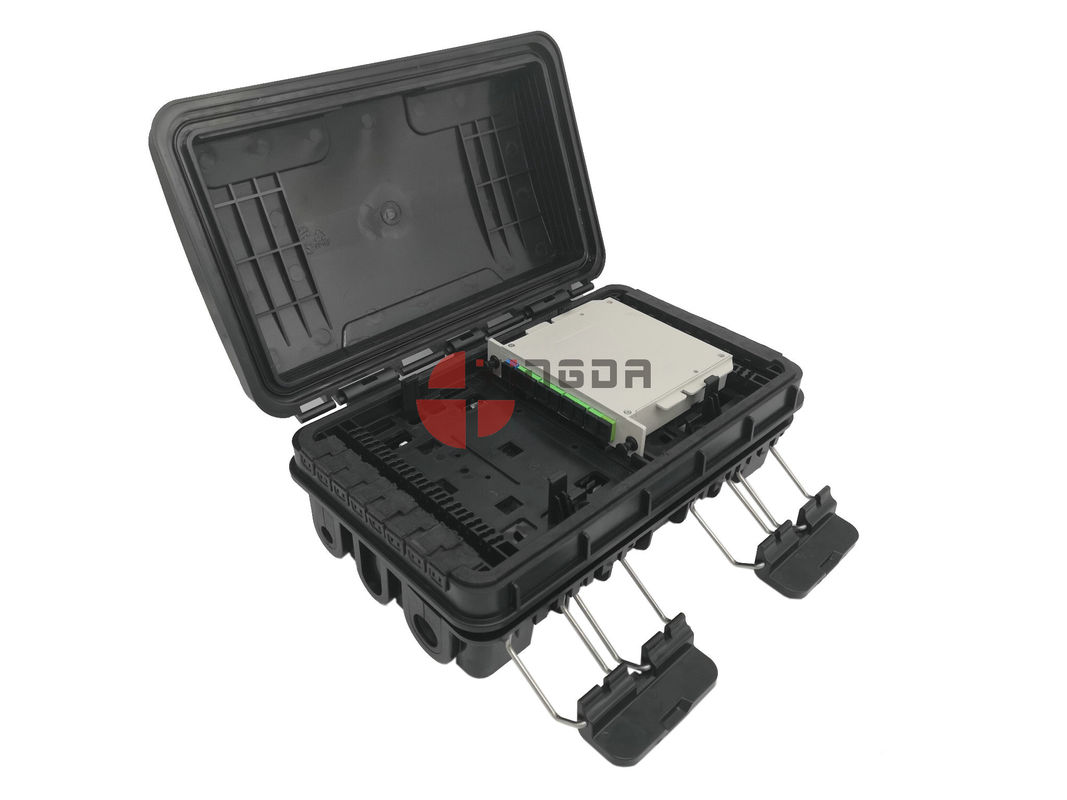

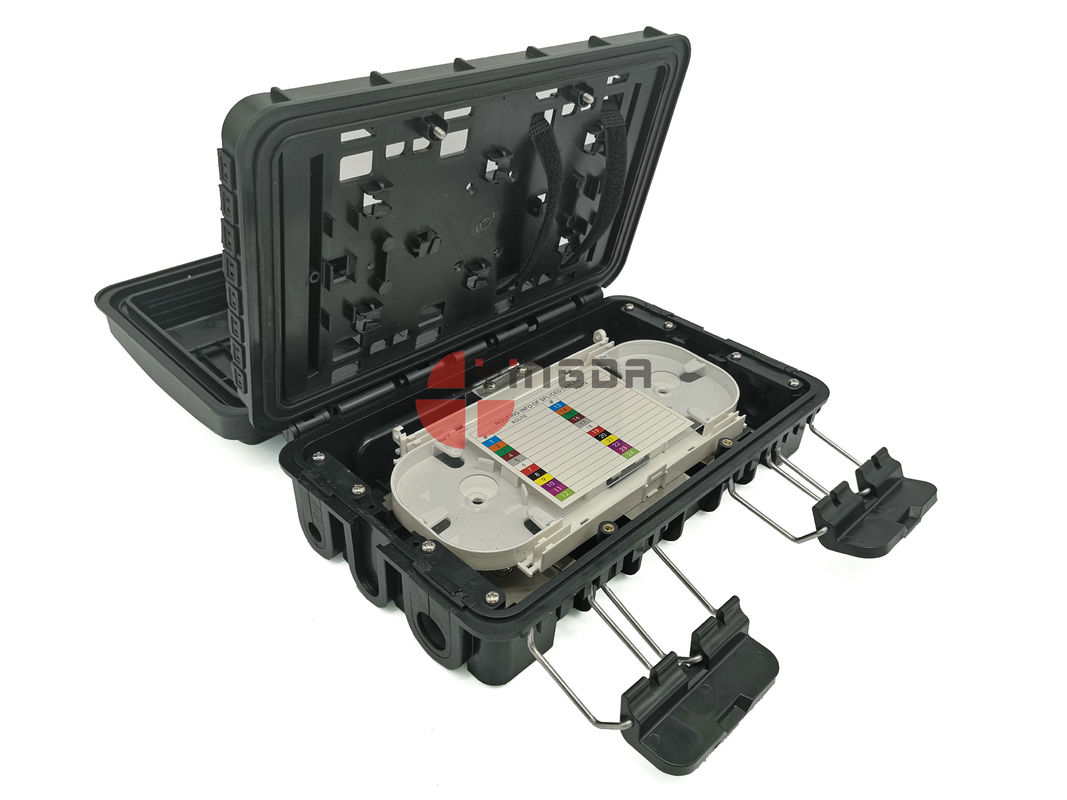

                        Splice closure (2 layer)                                          Splitter closure (3 layer)



Features

  1. The product is made of high-quality impact resistant plastic and has a standard user interface that can be re-opened.
  2. Can accommodate two 1x8 PLC splitter LGX module or steel tube type;
  3. Anti-ultraviolet,anti- impact and waterproof function;
  4. Unique flip board, flip angle ≥ 180 °, fusion area and distribution area is more obvious, reducing the cable crossing;
  5. Fiber optic cable can go in and out of the box without cut the cable.



Technical parameters



  1. Optical fiber radius of curvature: ≥40mm
  2. Splice tray additional loss: ≤0.1dB
  3. Temperature range: -40°C ~ +60°C
  4. Anti side pressure: ≥2000N/10cm
  5. Impact resistance: ≥20N.m
  6. Protection class: IP65



Specification



Model GJS-2022-S GJS-2022-F
Dimension (mm) 290*190*110 290*190*90
Cable diameter (mm) Φ7-φ18 Φ7-φ18
Cable port 4pcs round ports, 16pcs 2*3mm drop cable ports 2in 2 out
Max. Split ratio 2pcs 1x8 mini splitter /
Max. Splice tray 1pc 3pcs
Max. Fusion splice 24 cores 72 cores

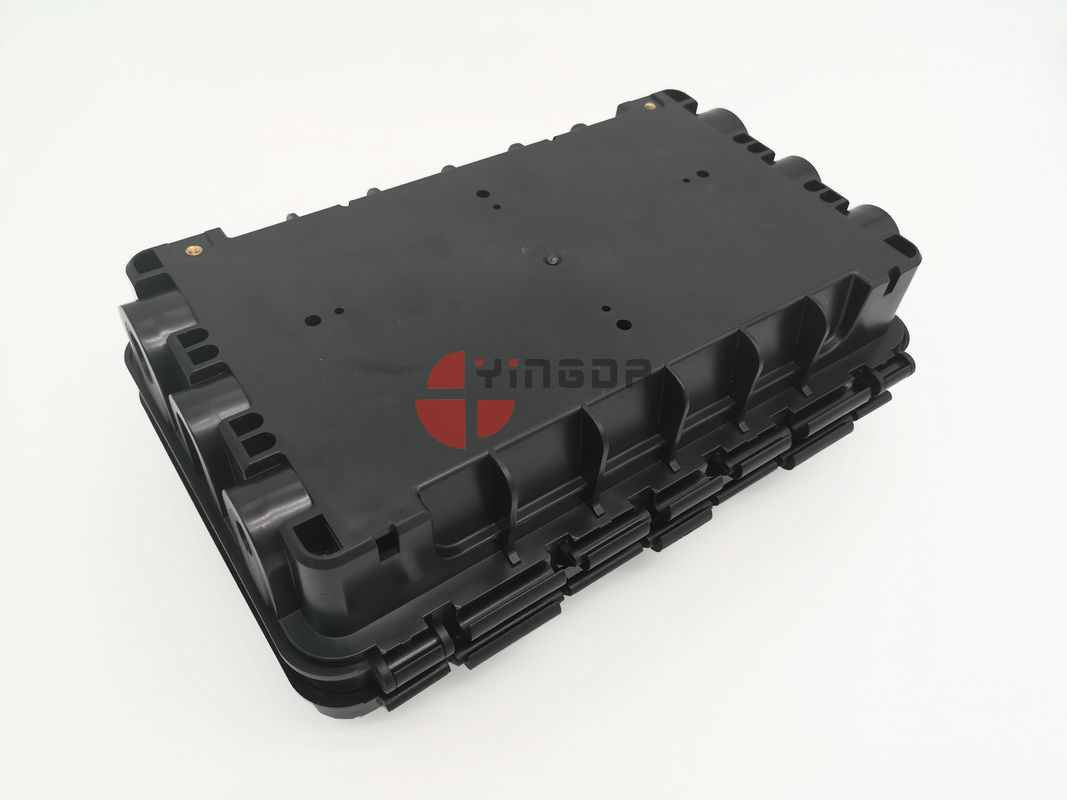

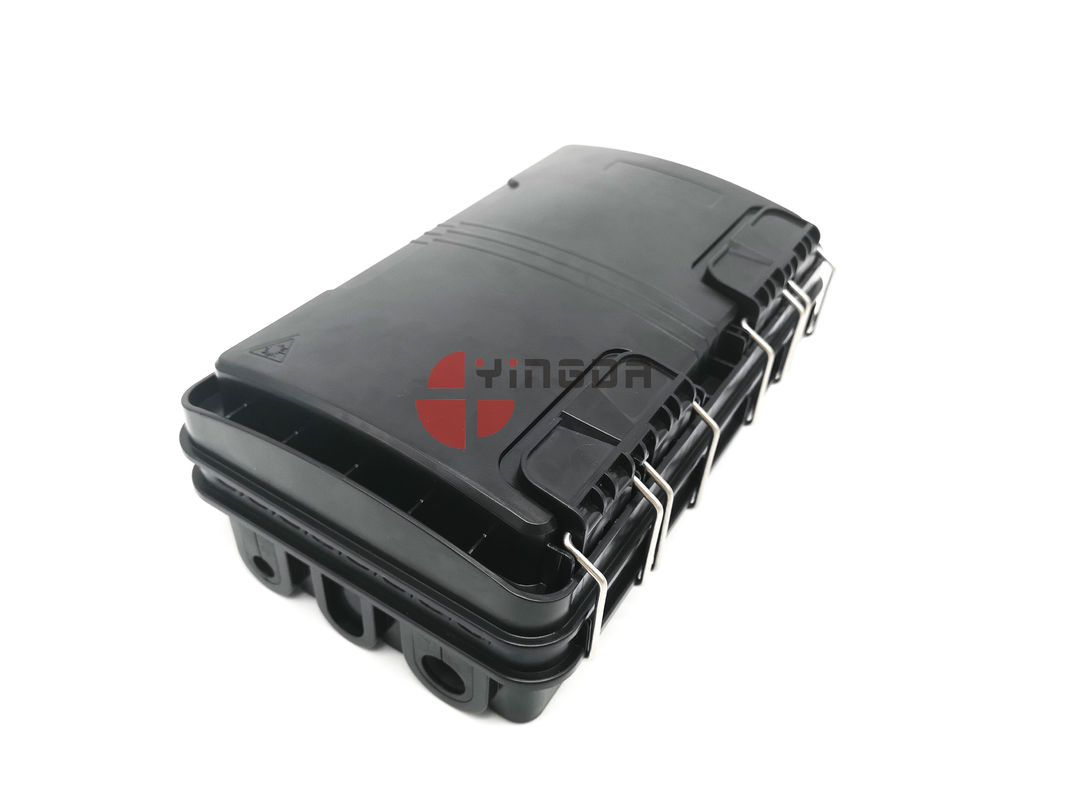

Product details:

PP + GF Fiber Cable Joint Box Waterproof 290 * 190 * 110mm 24cores Capacity 2

PP + GF Fiber Cable Joint Box Waterproof 290 * 190 * 110mm 24cores Capacity 3
