Fiber Cable Joint Box
Created with Pixso. GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure

GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure

Brand Name: YINGDA
Model Number: FDB0224G-108SC24
MOQ: 200 pcs
Price: negotiable
Delivery Time: 1 week
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
china
Certification:
ISO, SGS, ROHS
Material:
PP
Color:
Black
Dimension:
385*245*130mm
Cable Exit:
24 Ports Figure 8 Drop Cable
Cable Entry:
1uncut Ports For10-17.5mm Cable Diameter
Drop Cable Diameter:
4 Mm Or 7.5 Mm Drop Cable
Box Type:
96 Cores Splice Closure
Adapter Qty:
24 Pcs SC Fiber Adapter
Splitter`type:
2 Pcs1*8 Passive Optical Splitter
Packaging Details:
1pc / box, 4 pcs / carton
Highlight:

fiber optic junction box

,

fiber optic cable junction box

Product Description

GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure





FTTH drop cable type fiber optic cable joint box / closure features with ruggedness, which is ested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design helps user get better experience and safer operating environment.



Features

Dis-mountable adaptor panel

Support midspan termination

Easy operation and installation

Rotatable and dis-mountable splice tray for easy splicing



Product details

GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure 0  GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure 1

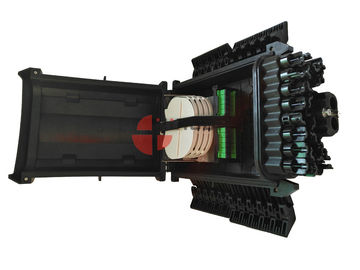

Empty Box:1 uncut inlet port, 24pcs                     Completed Box: 2pcs 1:8 plc splitter + 24pcs

                   ftth drop cable outlets                                                       SC/APC adapter panel



GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure 2  GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure 3

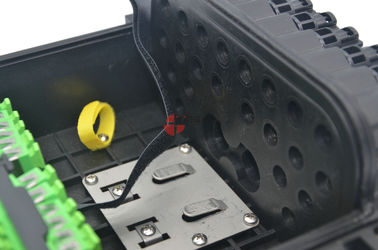

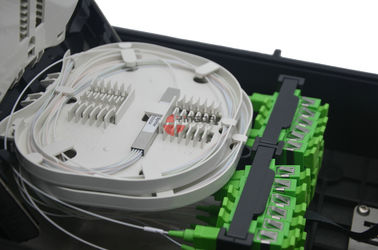

Inside view: 24 pcs SC couplers+ cable fixtion;      Splitter tray: the tray can max. fusion 12pcs

metal sheet can be small or big size                                               load 1 to 8 optical splitter white



GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure 4  GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure 5

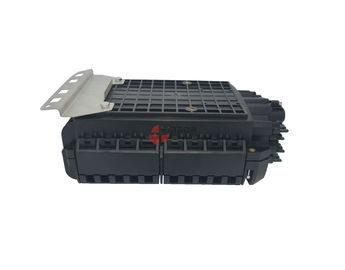

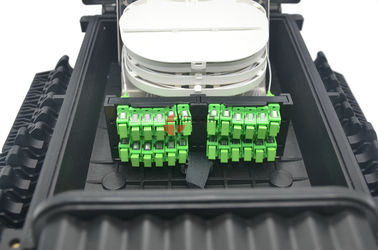

Back view: 2pcs mounting holes, horizontal or vertical      Splice tray is removable seperately

                    metal sheet for mounting, hole for clamps



GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure 6  GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure 7

Lock system: high quality buckle, engineer plastic PP+GF, each 2pcs metal screw nuts to close it.



GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure 8GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure 9



Box overview: IP68 waterproof splice enclosure, unique design, ftth wall moun / pole mount application



Specification



Model FDB0224G
Adapter 24 pcs of SC
Cable ports 1 uncut inputs
Applicable cable diameter Uncut port: 10-17.5mm
Drop cable ports 24ports
Applicable cable diameter 2*3mm FTTH drop cable, 2*5mm figure 8 FTTH drop cable
Dimension 385*245*130mm
Material Modified polymer plastic
Sealing structure Mechanical sealing
Color Black
Maximum splicing capacity 96 fibers (4 trays, 24 fibers /  tray)
Applicable spliter 1pc of 1*16 plc splitter or 2 pcs 1*8 plc splitters
Sealing Ip68
Impact test IK10
Pull test 100N
Midspan entry Yes
Storage (tube/micro cable) Yes
Net weight 4kg
Gross weight 5kg
Packing 540*410*375mm (4pcs per carton)



Standard parts

GPON FDB Inline 96 Cores PP Black 24 Ports SC Optical Fiber Splitter Access Terminal Closure 10



S/N Description Quantity Note
17 Wall mounting kit 1 For wall mounting
18 Expansion anchor bolt 2 Parts of the wall mounting kit
19 Hexagon bolt 2 Parts of the wall mounting kit
20 Nylon tie(3*120mm) 12 Fixing cable
21 Fusion sleeve(Φ1.0*60mm) According to the fiber cores. Cable splicing
22 0.2m coil tube 1 Protect the fiber
23 Insulation tape 1 Accessorial fixation
24 0.5m EVA tube 1 Protect fiber
25 Drier 1
26 M6 internal hexagonal wrench 1 Tool to open the box
27 14# grommet 2 For cable dia. From 12-17.5mm
28 41# grommet 2 For cable dia. From 8-12mm
29 Plastic plug 4 Seal the cable port
30 Iron spanner 1 Tool
