FTTH Drop Cable 16 Ports Fiber Optic Cable Joint Box, Fiber Optic Junction Box Enclosure

FTTH Drop Cable 16 Ports Fiber Optic Cable Joint Box, Fiber Optic Junction Box Enclosure

  • High Light

    fiber optic junction box

    ,

    fiber optic cable junction box

  • Material
    PP+GF
  • Color
    Black
  • Dimension
    385*245*130mm
  • Cable Exit
    16 Ports Of Ftth Drop Cable
  • Cable Entry
    1 Uncut Ports, 2 Cable Glands
  • Cable Diameter
    17.5mm, 4mm Or 7.5mm Drop Cable
  • Box Type
    Splitter Distribution Box
  • Adapter
    16pcs SC
  • Splitter Type
    1x8 Optical Splitter
  • Box Features
    1x8 Fiber Optic Splitter Box
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO, ROHS, CE, IP68
  • Model Number
    FDB0216F
  • Minimum Order Quantity
    100 pcs
  • Price
    negotiable
  • Packaging Details
    1pc / box, 4 pcs / carton box
  • Delivery Time
    1 week
  • Payment Terms
    T/T, Western Union

FTTH Drop Cable 16 Ports Fiber Optic Cable Joint Box, Fiber Optic Junction Box Enclosure

PP FTTH Drop Cable Buckle Type Splice Distribution Box, 16 Ports Splice Box for 1X16 Splitter

FTTH Drop Cable 16 Ports Fiber Optic Cable Joint Box, Fiber Optic Junction Box Enclosure



FDB0216F is widely used in passive optical fiber to the home network. This distribution box is made of high strength engineer plastic, ensure the box can be used in harsh environment.The compact size and flip-over cover bring easy operation as well as complete function.The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. It is designed to prevent from operation damage.



IP68 Waterproof Fiber Optic Box Specification

Dimension (mm) 380×245×130 Max. capacity(Single fiber) 12 cores
Weight (kg) 4.5~5 Sealing type Mechanical
Cable ports 1 input cable port for un-cut cable from diameter from10~17.5mm. 2 output cable ports for cable diameter from 8~17.5mm.
16 output cable ports for cable diameter less than 4mm.
Single splice tray capacity(Single fiber) 48 cores
Splice tray quantity 4 pcs



16 Ports Fiber Optic Distribution Box Parts list



Main kits

S/N Description Quantity Note
1 Lid 1 337(L)×242(W)×63(H)mm.
2 Base 1
3 Sealing ring 1 Box sealing
4 8202 sealing parts 16 Sealing cable ports

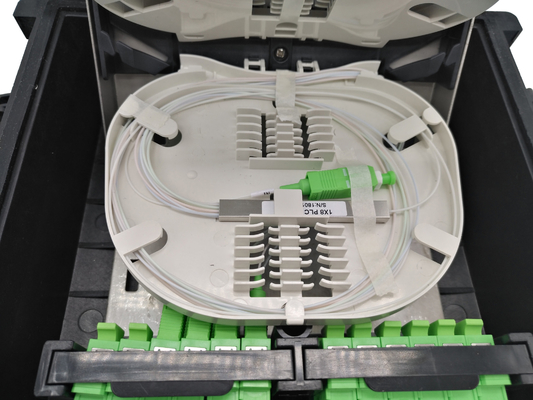

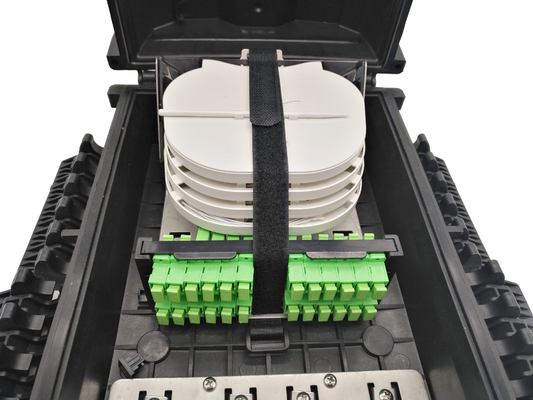

5 Splice tray 4 For cable splicing and storage
6 Splice tray cover 1
7 Splice tray bandage 1 Fixing several splice trays
8 Fastener bolt 2 Fixing lid and cover of closure
9 Buckle 4 Fixing lid and cover of closure
10 Tight nuts 16 Sealing soft cable ports
11 Tight tool 1 Special for tight the nuts
12 Cable fixing panel 1 Fixing un-cut cable
13 Adaptor installation panel 4 An adaptor panel for 6 SC simplex adaptors
14 Splice tray bracket 1 Install 4 splice trays
15 Top cover stopper 1 Limit top cover
16 Plastic nuts 2 Fixing cable



Splitter Distribution Box Standard parts

S/N Description Quantity Note
17 Wall mounting kit 1 For wall mounting
18 Expansion anchor bolt 2 Parts of the wall mounting kit
19 Hexagon bolt 2 Parts of the wall mounting kit
20 Nylon tie(3*120mm) 12 Fixing cable
21 Fusion sleeve(Φ1.0*60mm) According to the fiber cores. Cable splicing
22 0.2m coil tube 1 Protect the fiber
23 Insulation tape 1 Accessorial fixation
24 0.5m EVA tube 1 Protect fiber
25 Drier 1
26 M6 internal hexagonal wrench 1 Tool to open the box
27 14# grommet 2 For cable dia. From 12-17.5mm
28 41# grommet 2 For cable dia. From 8-12mm
29 Plastic plug 4 Seal the cable port
30 Iron spanner 1 Tool



FTTH Drop Cable 16 Ports Fiber Optic Cable Joint Box, Fiber Optic Junction Box Enclosure 0

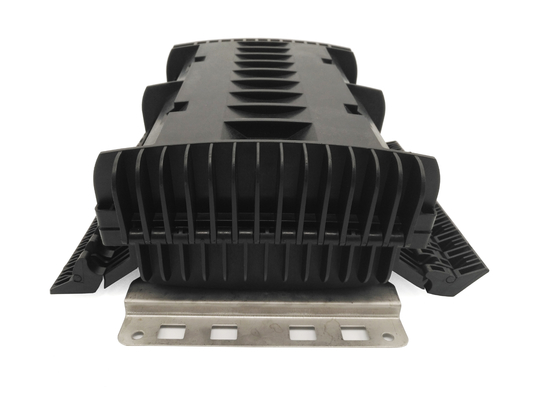

FDB0216F (FATC-001)  side with 4pcs buckles, wall mount or pole mount steel sheet with screws at back, all box is sealed with waterproof rubber ring which ensure IP68 waterproof level, PP+GF material, high strength and high impact performance.



FTTH Drop Cable 16 Ports Fiber Optic Cable Joint Box, Fiber Optic Junction Box Enclosure 1

FTTH Drop Cable 16 Ports Fiber Optic Cable Joint Box, Fiber Optic Junction Box Enclosure 2

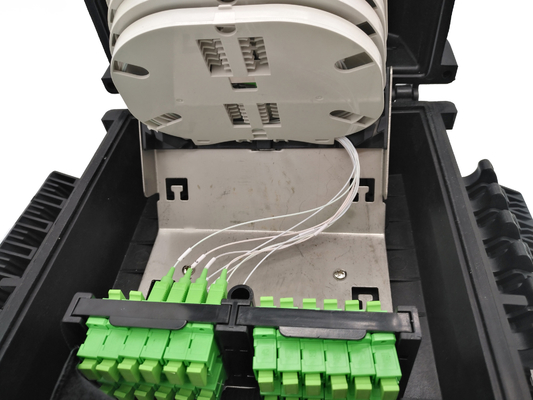

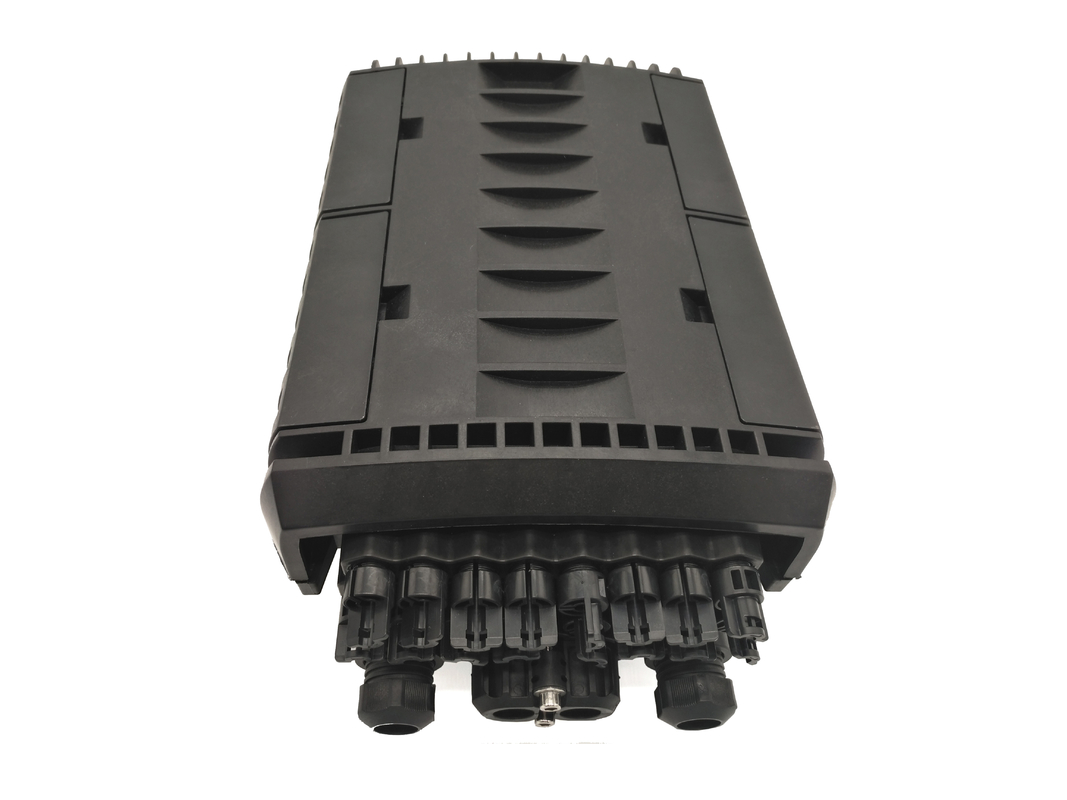

Optical Fiber Jounction Box have 2 types of cable inlets, cable entry:1uncut pors, 2round ports, cable outlets:16pcs for FTH drop cable, especially can use HUAWEI OpticTap SC/APC connectors.
