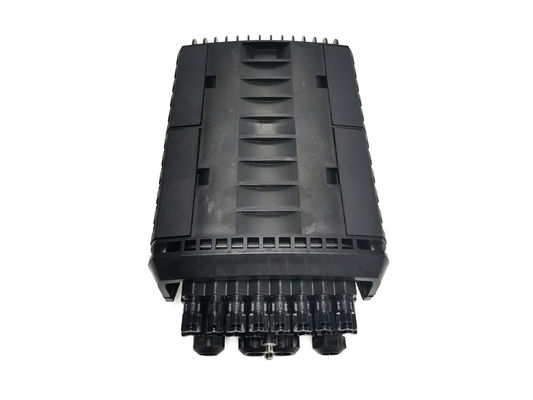

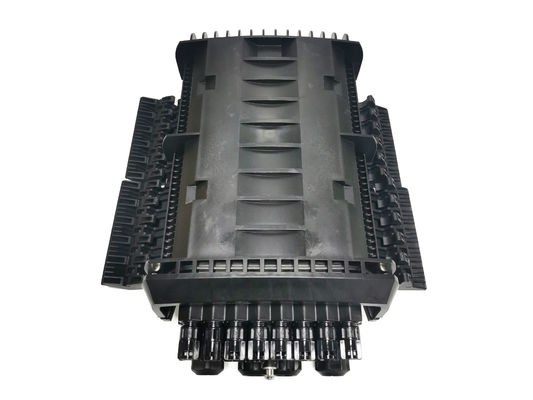

IP68 16Ports FTTH Drop Cable Fiber Optic Splice Closure Black PP Outdoor Splitter Joint Closure

This Fiber Optic Cable Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network. The fiber splicing, splitting, distribution can be done in this box, and it provides solid protection and management for the FTTx network building. With high quality and high strength engineering plastic, it can withstand harsh environment indoor or outdoors, and with long term stable and good performance.

Features

• Made of High strength engineering plastic material, good performance and high quality
• Dis-mountable adapter panel, max. can use 16pcs / 24 pcs of SC simplex adapters
• Pre-terminated with pigtails, adapter, or plc splitter available.
• Clip design, total enclosure, easy to operate and installation
• Rotatable and dis-mountable splice tray for easy splicing
• Unique design of mechanical sealing structure, ensures IP68 waterproof protection class.
• Maximum Splicing Capacity: 48 fibers (4 trays, 12 fibers/tray)

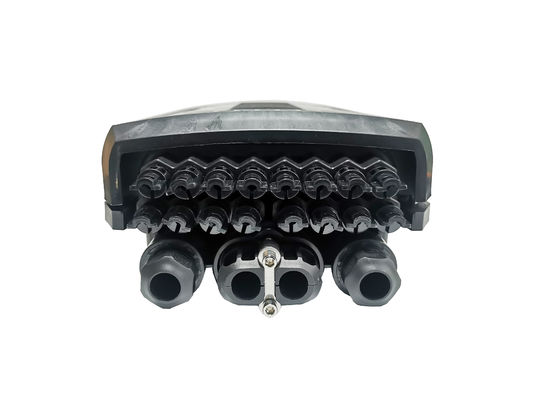

• Cable ports: 2in 16out
• Splitter: 1pc of 1*16 PLC Splitter or 2pcs of 1*8 PLC Splitters (mini module)
• Support mid-span termination
• Sample or OEM is ok

Application

• Wall mounting, pole mounting installation
• Indoor FTTH drop cable 2*3.0mm
• Outdoor figure-8 FTTH drop cable

Specification

Standard accessories

User manual, pole mount kits or wall mount kits, electric tape, heat shrinkable tube, screws, nylon tie, cable fixtures, wrench,Hexagon wrench,rubber sealing, alcohol cotton,buffer tube,etc.

Product Details

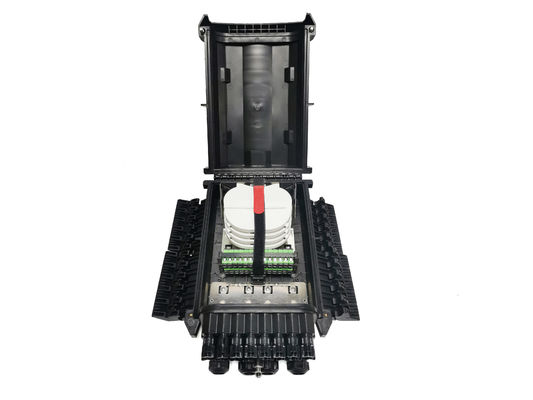

This splice enclosure can maximum hold 4pcs splice trays white color, ABS material with cover and fiber management tool. The trays will be fix by velcro tape on the bottom.

Each splice tray is 12cores slots for heat shrink protection tubes, and 1pc 60*7*4mm slots for plc spltiter stainless steel tube,which is suitable for 1*2 1*4 1*8 mini module plc splitter (blockless splitter). Both sides are routing way of fiber bring in and out, and there is guide ways under the trays.

The adapter plate is movable, and can take off by hand, each frame can hod 6pcs SC adapters, total 24pcs SC coupler can be installed.

And there is metal sheet with cable clamps before delivery for cable enter to fix the strength members like aramid yarn or FRP, metal.

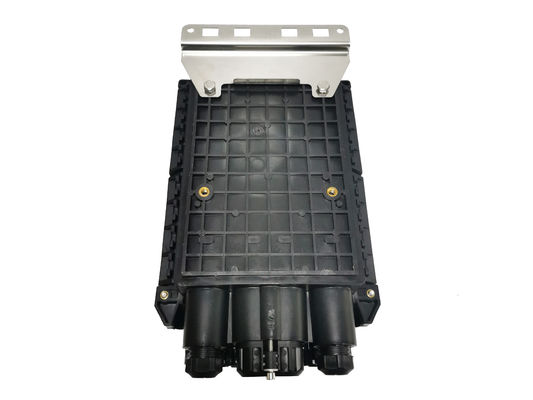

The box is delivered with 1piece metal sheet which is used for wall mount or pole mount application.It is stainless steel. It can be fixed on top or side of the box, flexible use.

HOW TO CONNECT WITH OUTSIDE FTTH DROP CABLE?

Toolkits needed during installation
