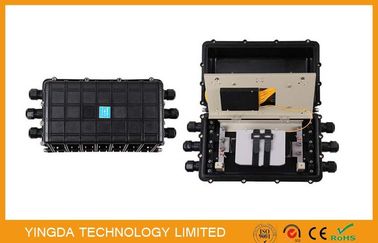

96 Core In - Line Fiber Optic 1x32 PLC Splitter Box , Fibre Optic Splice Closure

96 Core In - Line Fiber Optic 1x32 PLC Splitter Box , Fibre Optic Splice Closure
96 Core In - Line Fiber Optic 1x32 PLC Splitter Box , Fibre Optic Splice Closure 96 Core In - Line Fiber Optic 1x32 PLC Splitter Box , Fibre Optic Splice Closure 96 Core In - Line Fiber Optic 1x32 PLC Splitter Box , Fibre Optic Splice Closure 96 Core In - Line Fiber Optic 1x32 PLC Splitter Box , Fibre Optic Splice Closure

Large Image :  96 Core In - Line Fiber Optic 1x32 PLC Splitter Box , Fibre Optic Splice Closure

Product Details:
Place of Origin: china
Brand Name: YINGDA
Certification: ISO SGS CE ROHS
Model Number: GJS-2007
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: NEGOTIABLE
Packaging Details: 1 pc / box, 6 pcs/ carton box
Delivery Time: 5-8 working days
Payment Terms: Western Union, T/T, L/C

96 Core In - Line Fiber Optic 1x32 PLC Splitter Box , Fibre Optic Splice Closure

Description
Cable Ports: 3in 3out Cable Diameter: 6×Ø20 Mm
Color: Black Dimension: 504*250*195 Mm
Installation Method: Wall Mount, Pole Mount, Manhole, Underground,aerial Splitter: 1:32 module PLC splitter Box Type
Adapter: 32pcs SC Max Capacity: 96 Cores
High Light:

fiber optic cable junction box

,

fiber optic cable joint box

96 Core In-Line Fiber Optic Splitter Box, Splitte Jounction Box





(FOSC), also called fiber optic junction box or enclosures. It is the cable terminated

access point, then connect with optical switch through the optical fiber jumper.



Sell point:

1. Max splitter: 1x32 PLC splitter mini module 0.9mm cable.

2. Inline closure, cable gland sealing with rubber inside

3. PC material, max. 96 fibers.

4. Max. 32 pcs SC adapters, have adapter panel inside.

5. 1tray for welding, 1 tray for splitter module.

6. 100% test PLC splitter, with test report inside.

7. Cable ports: 6round ports, diameter 20mm, each side 3pcs

8. OEM customer label ok.



Features:

  1. The closure adopts horizontal mechanical sealing and advanced internal structure design.
  2. It can be installed one 1:32 module PLC splitter.
  3. There are different drop cable elements to be chosen (Φ5 ,2*3) to input/output
  4. (special type can be customized).
  5. The closure is spacious enough for winding and storing fibers.
  6. The patented sealing structure keep good sealing performance after re-entry and re-using.
  7. It could save the installation time and improve work efficiently.



Applications

  • Suitable for bunchy fibers
  • Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting



Specifications



Model no.

Splice Tray

Capacity

Splitter Tray(Box

Type PLC Splitter)

Number of

 adapters

Max.

Capacity

Cable Dia.

GJS-2007

 (Bunchy)

12-24F

per tray

1 pc 1:32

32 pcs

96 F

6round ports:

8-20mm
