Inline Fiber Cable Joint Box IP65 Outdoor Pole Mount 36 Cores 8 SC Fast Connector

Place of Origin CHINA
Brand Name yingda
Certification ISO
Model Number GJS-2008
Minimum Order Quantity 100 pcs
Price negotiable
Packaging Details 1pc / box, 4pcs / master box
Delivery Time 10-15days
Payment Terms L/C, T/T, Western Union, MoneyGram
Product Details
Material PP+ GF (Glass Fiber) Color Black
Ip Grade IP65 Mounting Method Wall Mount / Pole Mount
Cable Port 2 In 2 Out, 8 Ports For Fast Connectors With Drop Cable Max Fusion 3 Splice Tray, Each 12 Cores
Box Type 1x8 Splitter Closure Max. Splitter 1 To 8 Fiber Optic Splice Box
High Light

fiber optic cable junction box

,

fiber optic cable joint box

Leave a Message
Product Description

IP65 Outdoor Pole Mount 36 Cores 8 SC Fast Connector Inline Fiber Optic Splice EnClosure



GJS-2008 36CORES fiber optic splice closure is quick installed and reliable sealed closure. With engineering plastic in scientific formula, injection-molding, and excellent mechanical strength, it can prevent aging effectively caused by cold, hot, oxygen, UV etc.With flame retardant, waterproof,anti-vibration and anti impact box, the closure could protect the optic cable joints from tensile, impact,bending,flattening, twisting, and axial compression. All the sealing accessories qualified in the viscosity and white ants resistance test. Reliable sealing performance, convenient for repeated use.



Specification

MODEL GJS-2008
Dimension 319*248*125 mm
Max capacity 36 cores
Splice tray quantity 3 pcs, each 12cores
Cable port 2in 2 out(8-12mm), 8 ports for SC standard adapters (2*3drop cable)
Material PP+GF; tray:ABS
Waterproof grade IP65
Color black
Installation method Wall mount, pole mount
Suitable for Ftth figure-8 cable or cable which can add SC connectors



Application

1. Widely used to connect or branch the outdoor optic cable fibers in aerial/pole/wall applications.

    Fully Mechanical sealing and re-open design,
2. available for split with fast connectors without open the closure.
3. Provide optional valve and earthling rod. Simple inner structured and easy to installation,

    is the best choice for the network construction.



8 Port SC Splitter Cable Distribution Box in DETAILS:



Inline Fiber Cable Joint Box IP65 Outdoor Pole Mount 36 Cores 8 SC Fast Connector 0Inline Fiber Cable Joint Box IP65 Outdoor Pole Mount 36 Cores 8 SC Fast Connector 1

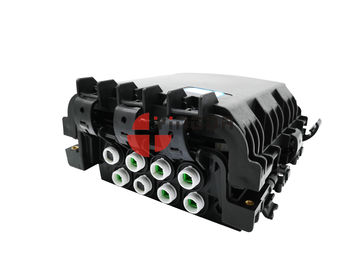

                      Splice Joint Box - FRONT                       Caja De Terminal Box NAP - SIDE

Inline Fiber Cable Joint Box IP65 Outdoor Pole Mount 36 Cores 8 SC Fast Connector 2Inline Fiber Cable Joint Box IP65 Outdoor Pole Mount 36 Cores 8 SC Fast Connector 3

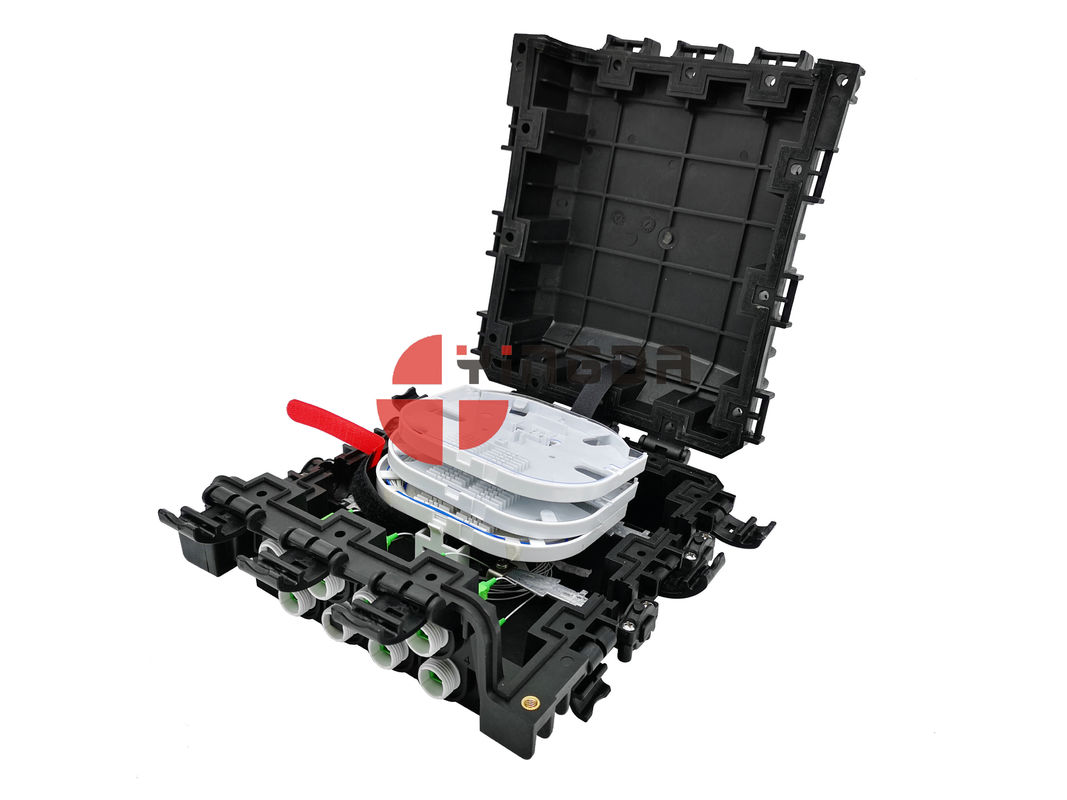

           FTTH NAP BOX - Internal splice tray                  FTTX CPE BOX - Internal Splitter tray

Inline Fiber Cable Joint Box IP65 Outdoor Pole Mount 36 Cores 8 SC Fast Connector 4Inline Fiber Cable Joint Box IP65 Outdoor Pole Mount 36 Cores 8 SC Fast Connector 5

inline splice closure bottom with cable winding area and 4 metal fixting sheets for entry feeder cable.



Inline Fiber Cable Joint Box IP65 Outdoor Pole Mount 36 Cores 8 SC Fast Connector 6Inline Fiber Cable Joint Box IP65 Outdoor Pole Mount 36 Cores 8 SC Fast Connector 7

            Material mark: PP+ Glass fiber                                 Package: 1pc / cardboard box



Inline Fiber Cable Joint Box IP65 Outdoor Pole Mount 36 Cores 8 SC Fast Connector 8Inline Fiber Cable Joint Box IP65 Outdoor Pole Mount 36 Cores 8 SC Fast Connector 9

Cable port: in front 8 pcs SC adapter port, diameter:25mm; both sides each 2 round ports:8-12mm cable can meet.





Inline Fiber Cable Joint Box IP65 Outdoor Pole Mount 36 Cores 8 SC Fast Connector 10Inline Fiber Cable Joint Box IP65 Outdoor Pole Mount 36 Cores 8 SC Fast Connector 11

Lock: 3buckles at both sides to open and close.

SC adapter port is white and round, inside and outside is SC standard ports, bottom with enough sapce for cable wiring and storage.





Inline Fiber Cable Joint Box IP65 Outdoor Pole Mount 36 Cores 8 SC Fast Connector 12       Inline Fiber Cable Joint Box IP65 Outdoor Pole Mount 36 Cores 8 SC Fast Connector 13

Splice tray: total 3 pcs, each 12cores to fusion single fiber, and steel tube fixtion slot and SC adapter slot.

large wiring area all around.


Technical Parameter

Working temperature -40ºC~+65ºC
Atmospheric Pressure 62-106kPa
Axial Tension > 1000N/1min
Stretching Resistance >2000N/10cm² (1min)
Flatten Pressure >2000N/100mm(1min)
Insulation Resistance >2 × 104MΩ
Voltage Strength 15KV(DC)/1min,no arcover or breakdown
Temperature Cycle -40ºC~+65ºC,with inner pressure 60(+5)Kpa,cycle:10times, the decrease of pressure can't exceed 5Kpa at room temperature.



How to use the box?



Inline Fiber Cable Joint Box IP65 Outdoor Pole Mount 36 Cores 8 SC Fast Connector 14

Inline Fiber Cable Joint Box IP65 Outdoor Pole Mount 36 Cores 8 SC Fast Connector 15



Standard accessories like below:

Inline Fiber Cable Joint Box IP65 Outdoor Pole Mount 36 Cores 8 SC Fast Connector 16
