PON FTTH Splitter Fiber Optic Enclosure 48 Cores 3 Layers 4 In 4 Out

Basic Information
Place of Origin: china
Brand Name: yingda
Certification: iso
Model Number: gjs-2018
Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: 1pcs / inner box, 20pcs / carton box
Payment Terms: Western Union, T/T
Supply Ability: 20k pcs per month
Contact Now
Detail Information
Material: PP Color: Black
Size: 600*162*81mm Cable Port: 4in 4out, 16pcs Drop Cable 2*3mm
Cable Diameter: 8-16mm Adapter Qty: 9pcs Or 16pcs SC SIMPLEX Coupler
Splitter Qty: 2pc 1x8 Or 1pc 1x16

Product Description

PON FTTH 1:8 1:16 Splitter 48 Cores 3 Layers PP Fiber Optic Splice & Splitter Closure





GJS-2018 Splitting and Wiring fiber optical splice closure not only have the butt-joint and branching function, but also have the function of optical cable splitting and wiring, suitable for the installation of main optical cables and drop cables with different diameters.



Features:

  • The closure adopts horizontal mechanical sealing and advanced internal structure design.
  • It can be installed two 1:8 Blockless PLC splitter or one 1:16 Blockless PLC splitter.
  • 4 pcs 8~16mm main cable both ends in and out.
  • 16 pcs 2*3mm drop cable both ends in and out.
  • The closure is spacious enough for winding and storing fibers.
  • The patented sealing structure keep good sealing performance after re-entry and re-using.
  • Easy open and close of closure with very little tool.
  • 24cores Fusing Splice available(Max.48cores)



Applications:

  • Messenger Installation available in the Closure
  • Mid-Span Branch,Aerial mounting
  • Separated in PLC Splitter Room and Fusion Splice Room
  • It is especially applicable to FTTH optical fiber distribution



Box structure

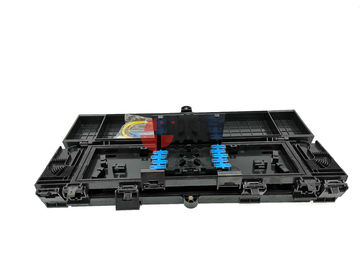

PON FTTH Splitter Fiber Optic Enclosure 48 Cores 3 Layers 4 In 4 Out



Specification



Model GJS-2018
Dimension 600*162*81mm
Max Capacity 48 cores
Max. Adapter 18 pcs SC
Splice tray capacity` 24 fibers or 48 fibers
Max. Splitter: 2pcs 1:8 or 1pc 1:16 mini tube
Cable port 4 in 4 out, 16 pcs for drop cable
Cable diameter 4 round:Φ8~Φ16mm; 16 ports-2*3mm drop cable or indoor cable
Material PP



More pictures

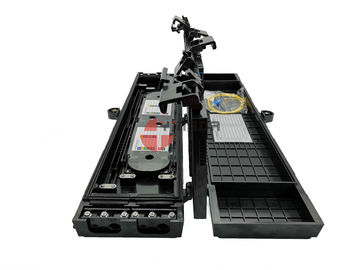

PON FTTH Splitter Fiber Optic Enclosure 48 Cores 3 Layers 4 In 4 OutPON FTTH Splitter Fiber Optic Enclosure 48 Cores 3 Layers 4 In 4 Out

load with all mounting accessories and user manual, high quality and unique design inside for splitter, adapter, pigtail and fibers.

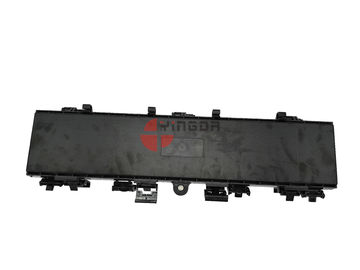

PON FTTH Splitter Fiber Optic Enclosure 48 Cores 3 Layers 4 In 4 OutPON FTTH Splitter Fiber Optic Enclosure 48 Cores 3 Layers 4 In 4 Out

Cable port: each side 4in 4out, 8pcs drop cable, with fubber seal for 3 layers for good waterproof, stainless steel metal screws and components

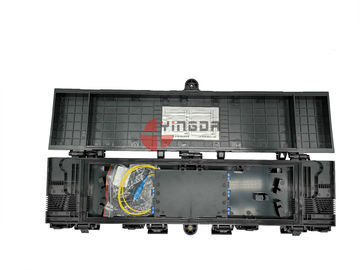

PON FTTH Splitter Fiber Optic Enclosure 48 Cores 3 Layers 4 In 4 OutPON FTTH Splitter Fiber Optic Enclosure 48 Cores 3 Layers 4 In 4 Out

can load 9pcs SC adapter or 16pcs Adapter ; can fusion 48 cores single fiber, with sleeve slot, and enough fiber storage and distribution spce

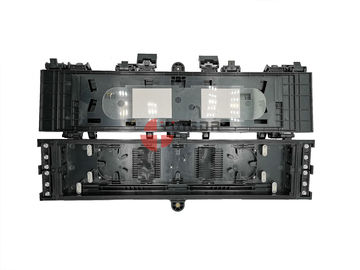

PON FTTH Splitter Fiber Optic Enclosure 48 Cores 3 Layers 4 In 4 OutPON FTTH Splitter Fiber Optic Enclosure 48 Cores 3 Layers 4 In 4 Out

Cable port diameter:15.72mm                                 Cable port diameter: 9.12mm



Standard Accessories



Item Qty Item Qty
Heat shrinkable protective sleeve 1bag Desiccant 2bags
nylon tie 1bag Pigtail 1pc
silicon oil 1 bottle Buffer tube for bunchy fiber 1 roll
Seal tape 1 roll Abrasive cloth 1pc
Optional accessory
Aerial mount hanging hook 1set
