144Cores Fiber Optic Splice Closure , PP Aerial Fiber Optic Splice Box 6 Pcs

Name: 144Cores Fiber Optic Splice Closure , PP Aerial Fiber Optic Splice Box 6 Pcs
Brand: YINGDA TECHNOLOGY LIMITED
SKU: 204A/B
Price: 28.00 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	204A/B
MOQ:	100 PCS
Price:	Negotiable
Delivery Time:	5days after pay
Payment Terms:	T/T or western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO,SGS

Capacity:

144Cores / Fibers

Material:

Cable Port:

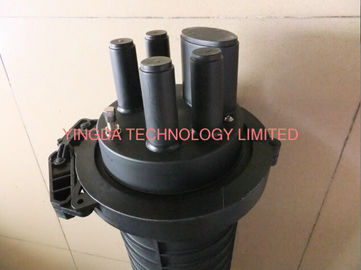

1 Oval + 4 Round Ports

Color:

Black

Sealing:

Heat Shrink Tube Seal

Splice Tray:

6 Pcs

Dimension:

450x230 Mm

Cable Diameter:

8-24mm

Packaging Details:

1pc / bag, 6pcs / carton box

Supply Ability:

50,000pcs per month

Highlight:

fiber optic splice enclosure

fiber optic joint closure

Product Description

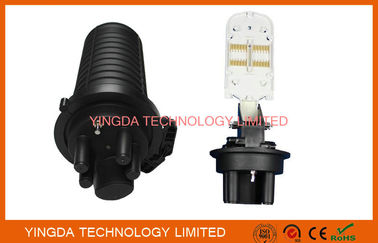

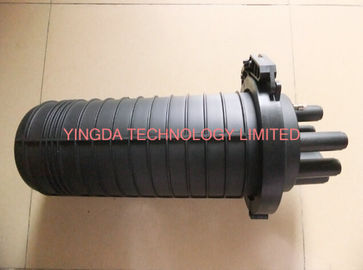

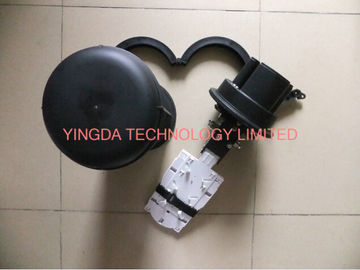

Aerial PP Dome Vertical Fiber Optic Splice Closure FOSC 204 144 Cores Fibers

Features

May be used for cut, uncut and taut sheath applications.
May be used for all fiber optic cable.
Sheath retention & central strength member termination system included.
Ribbed closure construction-lightweight plastic offers strength and
resistance to chemical and U.V attack
Installation and reentry with a minimum of tools
All hardware are captivated
Closure can be flash tested
Protection class: IP68
ROHS compliance

Application

Underground, Aerial, Vault, Pole Mounting and Wall Mounting

Specification

Model No

Max capacity

(single fusion)

Splice tray

Size

(Hx D)

Cable ports

Max cable diameter

FOSC-204A

144 fiber

(6x24)

Tray 204A

Capacity:24 fiber

450x230

1 oval port +

4 round ports

1 oval port for

1 looped cable

with max:24mm.

4round ports ,

each port for 1cable

with max:17.5mm

FOSC-204B

144 fiber

(6x24)

Tray 204B

Capacity:24 fiber

Standard accessories

Dome,Base,clamp,O-ring,metal storage basket,Splice Tray,,Heat shrink protective sleeve,

buffer tube,Cable ties,Grounding wire,Labeling paper,Installation Manual,

1 set of Oval port closing kits:

Including 1 heat shrink fixing tube+ 2pcs of Aluminum paper(10cm x 10 cm)+sand paper(2.5 x30mm)

+ 2 bags cleaning tissue+ branching clip etc

4 sets of Round port closing kits:

Including 1 heat shrink fixing tube+1 pc of Aluminum paper(10cm x 10 cm)+sand paper etc

Optional accessories

Pole Mounting kit,Aerial mounting kit Grounding device,Air valve

Order information:

FOSC-204X-XX-XX-X

FOSC-204(A,B,C)-Capacity(12,24,36,48,72fiber...)-splice tray(01-=1pc,02=2pcs...)-accessories(S=standard;O=optional,on customer request)

144Cores Fiber Optic Splice Closure , PP Aerial Fiber Optic Splice Box 6 Pcs 0
