2 In 2 Out Fiber Optic Splice Closure 96 Cores Fusion Buckle Type ABS Material
  • Name
  • Name
  • Name
  • Name
  • Name

2 In 2 Out Fiber Optic Splice Closure 96 Cores Fusion Buckle Type ABS Material

Brand Name: yingda
Model Number: GJS-2048
MOQ: 100pc
Price: negotiable
Delivery Time: 7days
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO
MATEIRAL:
ABS
Cable Port:
2in 2out
Fusion Capacity:
96 Cores Single Fiber
Dimension:
420*190*120mm
Packaging Details:
1pc/box, 6pc/shipping box
Supply Ability:
1000000pcs per month
Highlight:

fiber optic splice enclosure

,

fiber optic joint closure

Product Description

2In 2Out Fiber Optic Splice Closure 96 Cores Fusion Buckle Type Horizontal ABS Enclosure





This product is suitable for various models and cable structure(single fiber or ribbon) whose diameter

within φ16mm , can be overhead, pipe, buried and manhole laying through and disagreement (one to

two, one to three) connection. Also can be used for the plastic city cable connection.



Features

  • All performances comply with national YD / T814-1996 standard requirements.
  • Closure body adopts imported high strength engineering plastic (ABS), added anti-aging agent and high pressure injection molding, the appearance of Kazakhstan arc rectangular shape, with light weight, high mechanical strength, corrosion resistance, anti-lightning, long life characateristics.
  • Box is snap connection with buckle, more convenient to installation and maintenance.
  • The box and the cable entry are sealed with silicone rubber, the sealing performance is reliable, and easy to repeat and re-use and no loss.
  • Superimposed structure splice tray and the plastic main body bracket to make better insulation performance,cores configuration, expansion and cable grounding flexible, convenient and safe.
  • The metal parts and fasteners outside the box are made of stainless steel, can use more convenience and resue in various environments.



Specification



Model GJS-2048
Dimension(L*W*H)mm 420*190*120
Max capacity 96cores
Cable ports 2in 2out
Cable diameter 16mm
Fiber radius of curvature ≥40mm
N.w. 2.19kg
Material ABS
Temperature range - 400C ～ + 700C
Anti-side pressure ≥2000N / 10cm
Impact resistance ≥20N.m

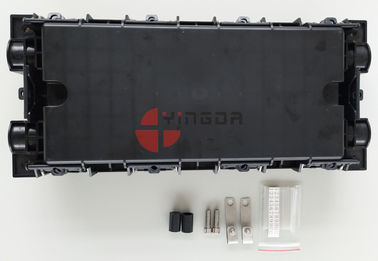

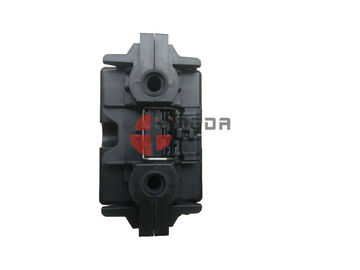

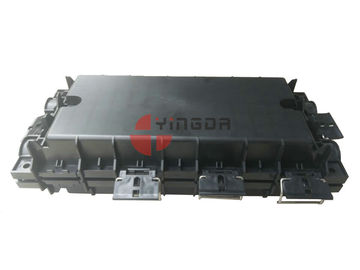

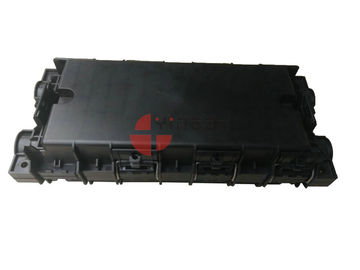

More pictures:

2 In 2 Out Fiber Optic Splice Closure 96 Cores Fusion Buckle Type ABS Material 02 In 2 Out Fiber Optic Splice Closure 96 Cores Fusion Buckle Type ABS Material 12 In 2 Out Fiber Optic Splice Closure 96 Cores Fusion Buckle Type ABS Material 22 In 2 Out Fiber Optic Splice Closure 96 Cores Fusion Buckle Type ABS Material 3
