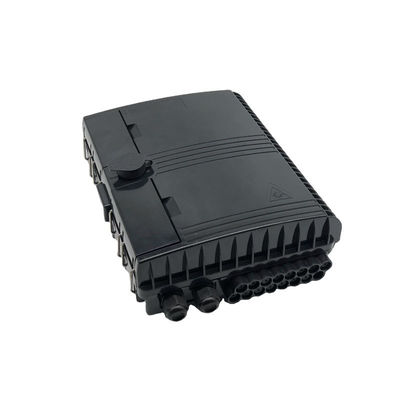

Outdoor Mid Span Optical Splitter Distribution Box Black ABS for 1x16 PLC Splitter
| Place of Origin | china |
|---|---|
| Brand Name | YINGDA |
| Certification | ISO |
| Model Number | FDB0216G |
| Minimum Order Quantity | 200pcs, first order accept small order |
| Price | negotiable |
| Packaging Details | 1pc/box, 10pcs/carton box |
| Delivery Time | 5 working days |
| Payment Terms | T/T, Western Union, MoneyGram, L/C |
| Supply Ability | 50k per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PC ABS | Capacity | 16 Cores Single Fiber |
|---|---|---|---|
| Adapter Qty | 16 Pcs SC Adaptor | Split Ratio | 1x2,1x4,1x8, 1 16 Mini Splitter |
| Color | White, Gray, Black | Connector Insertion Loss | <0.2dB |
| Cable Port | 2in 16out; Input; Un-cut Cable Or Gland | Cable Diameter | 13.5mm, Out 2x3mm Drop Cable |
| High Light | fiber optic closure,optical distribution box |
||
Product Description
FDB 16Ports Outdoor Optical Fiber Termination Box For Un-cut Cable White 16Cores Plastic Waterproof With Key Clip
FDB0212G optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features
- lPC+ABS material used ensures the body strong and light..
- Wet-proof, water-proof, dust-proof, anti-aging
- Easy installations: Ready for wall mount – installation kits provided
- Space saving: Double-layer design for easier installation and maintenances
- Easy installations: Ready for wall mount – installation kits provided.
- Protection level up to IP55
- Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

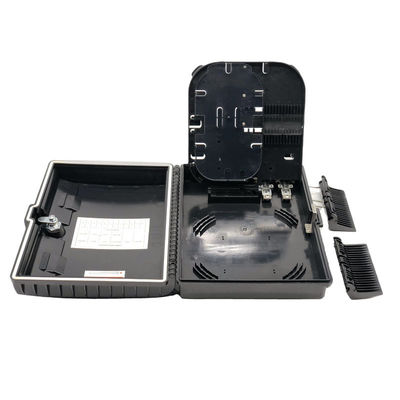

- Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
- Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC adapt or installation, easy maintenance.
Specifications
| Dimensions (W*H*D) | 250*190*39(mm) | |
| Adapter Capacity | SC 8; LC 16; PLC 1X8. | |
| Number of Cable Entrance/Exit | 2/12 | |
| Optional Accessories | Adapters, Pigtails,PLC splitter | |
| Insertion loss | ≤0.2dB | |
| UPC return loss | ≥50dB | |
| APC return los | ≥60dB | |
| Life of insertion and extraction | >1000 times | |
| Weight | 1.0KG | |
| Max diameter of entry cable | 16mm |

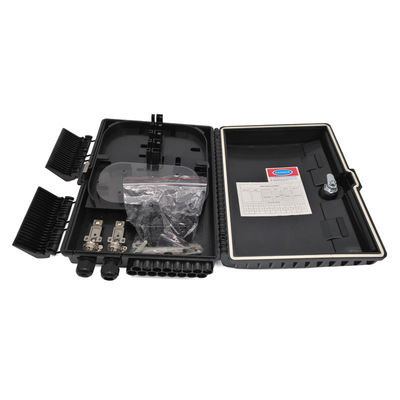

More pictures
Operation Conditions
| Temperature | -40℃ -- 60℃ |
| Humidity | 93% at 40℃ |
| Air Pressure | 62kPa – 101kPa |
Shipping Information
| Model | FDB0212C |
| Package Dimensions(W*H*D) | 280mm*220mm*105mm |
| Material | Carton box |
| Weight | 1.14KG |
| Lead Time | 7-10 working days |
Shipping & Delivery
- We will send the products within 10 days.
- We ship small batched by air, or large orders by container.
Return and Warranty
- All products have been tested before ship out.
- All products have 1 years warranty. If there is no man-made problem ,we will replace or repair for you freely.
- We own the best after-sale service. If any problems happen, our team will do our best to solve.
