1U 19 Inch Sliding Rack Mount Fiber Optic Patch Panel 12 Port LC Duplex Drawer ODF
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Cold Rolled Steel | Color | Black, White |
|---|---|---|---|
| Capacity | 12, 24, 48, 72, 96, 144 Cores | Adapter | LC Duplex, SC |
| Cable Ports | 4 Pcs At Back With Rubber Seal | Application | FTTH FTTX FTTB ODN LAN WAN Network |
| Dimension | 430*300*1U Or 430*250*1U | Thickness | 1.0mm |
| High Light | rack mount odf,optical distribution frame |
||
Product Description

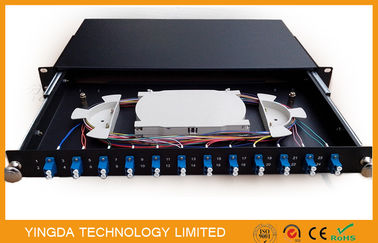

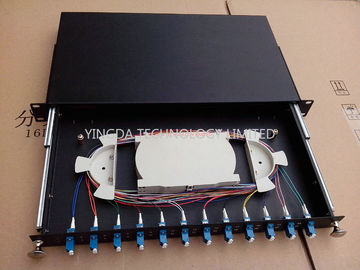

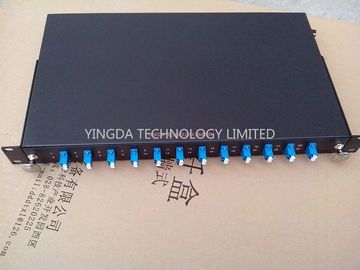

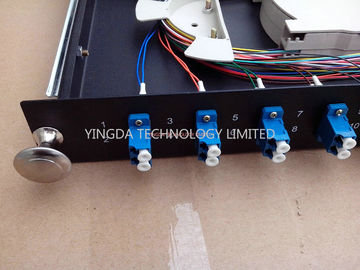

1U 19 Inch Sliding Rack Mount Fiber Optic Patch Panel 12 Port LC Duplex Drawer ODF
Quick Details of 1U Rack Cabinet
- 19inch standard rack mount
- size:480*250*1U or 480*300*1U
- 12pcs LC duplex adapters
- max capacity:24cores
- metal sliding tray to pull out the whole internal panel
Fiber optic patch panel are the auxiliary equipment for terminal wiring in optical fiber transmission communication network,
which is suitable for indoor optical cable splice directly and branch connection, and protective the fiber.
12Port Fiber Optic Patch Panel Features
- Applicable in the termination and 19'' standard structure
- Metal sliding with rods at both sides for 1U height
- Rack mount in optical distribution frame ODF
- Suitable for FC,SC,ST,LC,E2000 adapters
- Cold rolled steel sheet, with electrostatic spraying
24Core Fiber optic patch panel Specification
|
Type |
Dimension |
Max capacity |
Carton size |
Qty/ |
G.w |
|
GPSM-1U-SC12 |
430*300*1U |
12 |
485*420*350 |
5 |
29 |
|
GPSM-1U-FC24 |
24 |
485*420*350 |
5 |
29 |
|
|
GPSM-1U-2SC24 |
48 |
485*420*350 |
5 |
29 |
|
|
GPSM-2U-FC48 |
430*300*2U |
48 |
500*355*550 |
4 |
26.5 |
|
GPSM-4U |
130*300*4U |
192 |
500*350*540 |
1 |
18.9 |
Standard accessory:
buffer tube, mounting screws, heatshrink protection sleeve, nylon tie, cable ties, etc.
Equivalent ODF'S
We can add the front cable management area for better construction. if customer need.
color: white, black.
Environmental requirements:
- Not suitable outdoor use, if need to use, should take protective measures.
- Working temperature: -25 to +40 °C
- Storage temperature: -25 to +55 °C
- Relative humidity: ≤85% (30°C)
- Atmospheric pressure: 70 ~ 106kPa
- Service life: 20 years
Mechanical properties
- Tensile strength:should withstand axial tensile strength not less than 500N between cable
- terminal box and the cable, and not less than 5N between wiring pigtail and terminal box.
- Compression test: cable terminal box each should be able to withstand the vertical static
- pressure not less than 200N.
- Twist test : cable terminal box should be able to withstand the torsion angle.
Electrical properties
- Fiber optic cable box metal component and cable metal strengthening core, cable metal components and the ground insulation resistance
- insulation resistance:should be no less than 2*104M ohm, test voltage:500V (DC).
- voltage strength: no breakdown, no arc phenomenon at 15Kv DC under 1min, no breakdown, no arc phenomenon.
