19”24 Port SC Metal Drawer Sliding ODF Fiber Optic Patch Panel

19”24 Port SC Metal Drawer Sliding ODF Fiber Optic Patch Panel
19”24 Port SC Metal Drawer Sliding ODF Fiber Optic Patch Panel 19”24 Port SC Metal Drawer Sliding ODF Fiber Optic Patch Panel 19”24 Port SC Metal Drawer Sliding ODF Fiber Optic Patch Panel 19”24 Port SC Metal Drawer Sliding ODF Fiber Optic Patch Panel

Large Image :  19”24 Port SC Metal Drawer Sliding ODF Fiber Optic Patch Panel

Product Details:
Place of Origin: china
Brand Name: yingda
Certification: ISO
Model Number: GPSR-1U-SA24
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: negotiable
Packaging Details: 1pc per box, 3pcs per carton box
Delivery Time: 1week
Payment Terms: T/T, Western Union,paypal
Supply Ability: 10000pcs per month

19”24 Port SC Metal Drawer Sliding ODF Fiber Optic Patch Panel

Description
Material: Cold Rolled Steel Cable Entry: 4 Ports At Back Diameter 20mm
Cable Ouputs: 24 Port SC Simplex Coupler Color: Black
Size: 430*300*1U Mm, Max, 480mm Type: Rack Mount Patch Panel
Rack Size: 19 Inch Or 23inch Adapter: SC, LC, FC,ST, E2000, Etc
Box Open: Front Clip Tray Type: Drawer 19" Patch Panel
Splice Tray Quantity: 1pc 24cores Tray Features: 24 Port SC ODF
High Light:

ODF Fiber Optic Patch Panel

,

Drawer Sliding Fiber Optic Patch Panel

,

SC ODF Fiber Patch Panel

19” 24 Port SC Metal Drawer Sliding ODF Fiber Optic Patch Panel



24 Port SC Fiber Optic ODF Metal Drawer Sliding Fiber Optic Patch Panel 19”Rack Mount





GPSR series SC rack mount sliding fiber optic patch panels will be pre-loaded with the SC adapters and splice management kit at factory, it provides a mean to store the spliced optical fibers in a neat or orderly manner.


The main features of this rack mount patch panels is the metal sliding fusion tray which can be adjusted to various working angles to facilitate installation and maintenance works. Other than this, the rack mount patch panels have a front cover take off to support installation and maintenance works.



Specification

MODEL GPSR-1U-SA24
Dimension 430*300*1U mm
Max capacity 24 single fiber
Adapter port SC simplex port
Adapter qty 24pcs SC/APC with flange
Thickness 1.2mm
Material Cold rolled steel sheet, with electrostatic spraying
Color Black RAL 9004
Cable entry 4pcs, rubber diameter 20mm
Net weight 5.2kg
IP Rating IP20
Operating Temperature -200C~+700C
Standards comply TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754, EN 297-1



Features

  • Applicable in the termination and 19' or 23” standard structure
  • Rack mount in optical distribution frame ODF with mounting ears with holes
  • Suitable for FC,SC,ST,LC,E2000 adapters on request
  • 1.2mm Cold rolled steel sheet, with electrostatic spraying;
  • Box size: 430*300*1U available, for cost save depth can be 250mm or 200mm;
  • Metal sliding tray of the splice tray and bottom, easier and faster operation without open the cover, and take out for fiber management;
  • Clip cover design, dust proof and whole box closed not in operation;
  • 4 cable entry ports at back with rubber seal to prevent dust, each port with cable clamps and protection devices
  • All the metal parts are stainless steel for long life span guarantee.



Product details

19”24 Port SC Metal Drawer Sliding ODF Fiber Optic Patch Panel 0

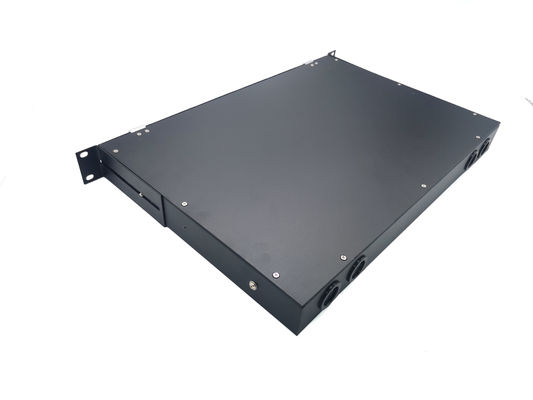

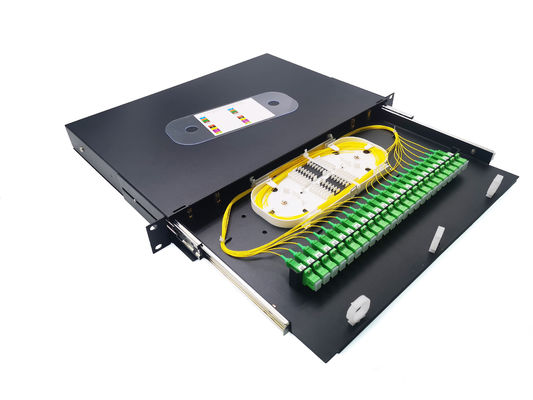

The ODF can install max. 24pcs SC adapters and pigtails, it has cable clamps, nylon tie for fiber management, and around 1.5meter length fiber storage space, the metal slide tray make sure fiber management more easy and convinent; there will be mounting ears at both sides for 19inch rack mount.

19”24 Port SC Metal Drawer Sliding ODF Fiber Optic Patch Panel 1

There is total 4 pieces cable entry at back of the ODF with rubber seal for dust proof, the max. diameter is 20mm. Also after the cable enter, there will be plastic cable fixtion inside.



19”24 Port SC Metal Drawer Sliding ODF Fiber Optic Patch Panel 2

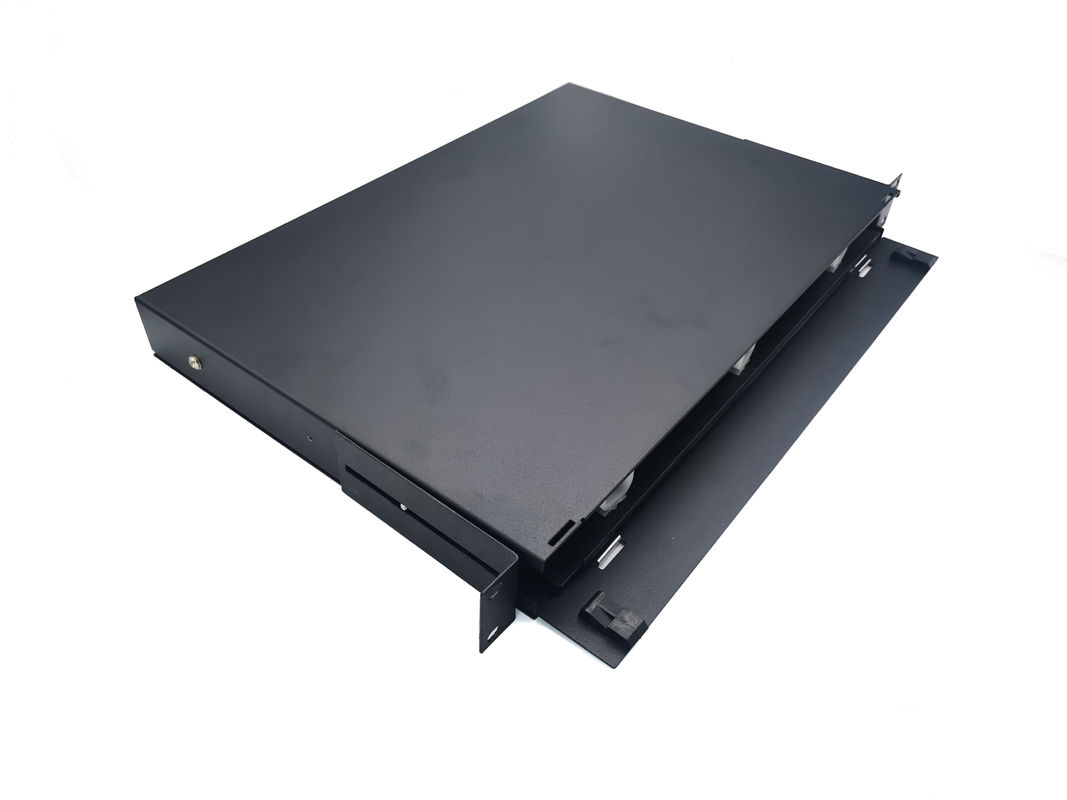

The ODF is totally 19inch, and have a front door with lock, on operation, just need open the lock then can draw the internal part out.

19”24 Port SC Metal Drawer Sliding ODF Fiber Optic Patch Panel 3

Each 24cores will have 1 piece of fusion splice tray with transparent cover, there is number mark on the cover for better management and sitribute. Each tray have 24 pcs heat shrink protection tube slots by 1 layer.

19”24 Port SC Metal Drawer Sliding ODF Fiber Optic Patch Panel 4

The adapter plate is fixed on the bottom with screws. we can use 12SC, 24SC 48SC, 96SC or 144SC adapters on customer request, ST FC LC or E2000 is avaialble. All the adapters will be fix on the adapter plate by screws too. Don't need to worry loss during transporation.

19”24 Port SC Metal Drawer Sliding ODF Fiber Optic Patch Panel 5

The box will be rack mounted on the optical disstribution frame, each mounting ears will equipped with 3pcs screws in the accessory bag.

19”24 Port SC Metal Drawer Sliding ODF Fiber Optic Patch Panel 6

Pack:1pc/individual cardboard box, in order to protect the box, will have foams at corners and plastic bag inside.



19”24 Port SC Metal Drawer Sliding ODF Fiber Optic Patch Panel 7

Accessory bag: heatshrink protection tube, nylon tie, mounting ear and screws, label mark, etc.







Pack information

Quantity/carton box Carton size Weight/carton box
5pcs 485*420*350mm 27.5kg
