Indoor Metal Slide 2U 48 Port Patch Panel Rack Mount

Indoor Metal Slide 2U 48 Port Patch Panel Rack Mount

  • High Light

    2U 48 Port Patch Panel

    ,

    SC 2U Rack Mount Patch Panel

    ,

    LC 2U Rack Mount Patch Panel

  • Material
    Cold Rolled Steel
  • Cable Entry
    4 Ports At Back
  • Cable Ouputs
    48port SC Adapter Simplex
  • Color
    White
  • Size
    430*300*2U Mm, Max, 480mm
  • Type
    Rack Mount Patch Panel
  • Rack Size
    19 Inch Or 23inch
  • Adapter
    SC, LC, FC,ST,E2000 All Ok
  • OEM
    Ok
  • Sample
    Ok
  • Box Open
    Front
  • Tray Type
    Sliding Out Splice Tray
  • Splice Tray Quantity
    2pcs 24cores Tray
  • Features
    48 Port Sliding Patch Panel
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO
  • Model Number
    GPSR-2U-SA48
  • Minimum Order Quantity
    100PCS
  • Price
    negotiable
  • Packaging Details
    1pc per box, 3pcs per carton box
  • Delivery Time
    1week
  • Payment Terms
    T/T, Western Union,paypal
  • Supply Ability
    10000pcs per month

Indoor Metal Slide 2U 48 Port Patch Panel Rack Mount

Indoor Metal Slide 2U 48 Port Patch Panel Rack Mount



Indoor Metal Slide Fiber Optical Fusion Splicing Tray Rack Mounted Patch Panel 19" ODF 2U White





Indoor 19 inch standard size sliding drawer type Fiber optic patch panel is the auxiliary equipment for terminal distribution / wiring in optical fiber transmission communication network, and suitable for indoor optical cable splicing directly and branch connection, and protection of the optical fiber.



Specification

MODEL GPSR-2U-SA48
Dimension 430*300*2U mm
Max capacity 48 Cores
Adapter port SC SIMPLEX
Adapter qty 48 pcs SC/APC
Thickness 1.2mm
Material Cold rolled steel sheet, with electrostatic spraying
Color Black, white
Cable entry 4pcs φ20mm
Net weight 6.2kg



Features

Applicable in the termination and 19' or 23” standard rack mount in optical distribution frame ODF with mounting ears with screws, there will be accesory bag together with the package of the individual cardboard box(expansion screws, cable clamps, nylon tie, heat shrink sleeves,etc.)

Indoor Metal Slide 2U 48 Port Patch Panel Rack Mount 0

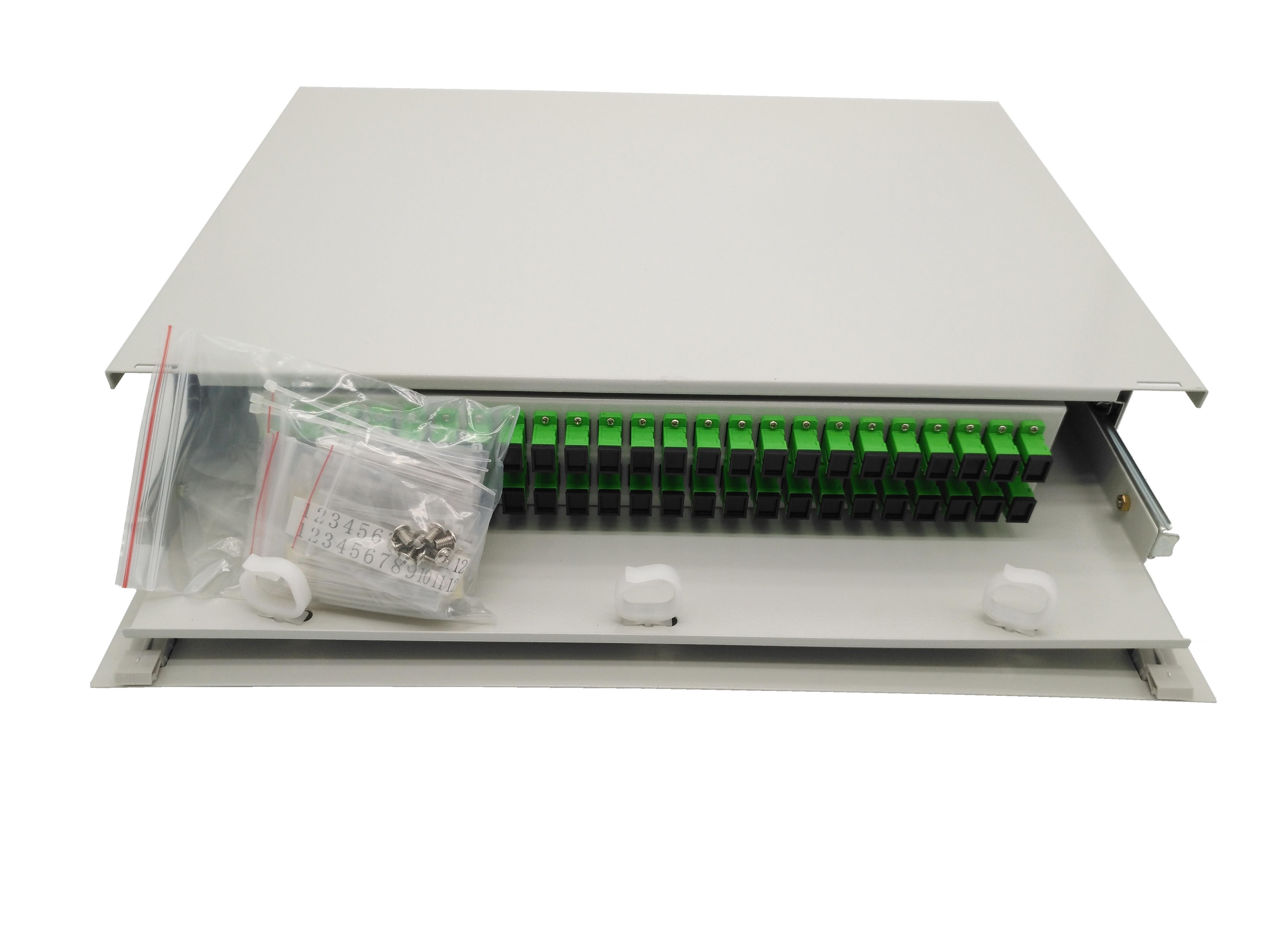

Suitable for FC,SC,ST,LC,E2000 adapters on request, all should have flange to fix on the adapter plate with screws,the adapter screws included.

Indoor Metal Slide 2U 48 Port Patch Panel Rack Mount 1

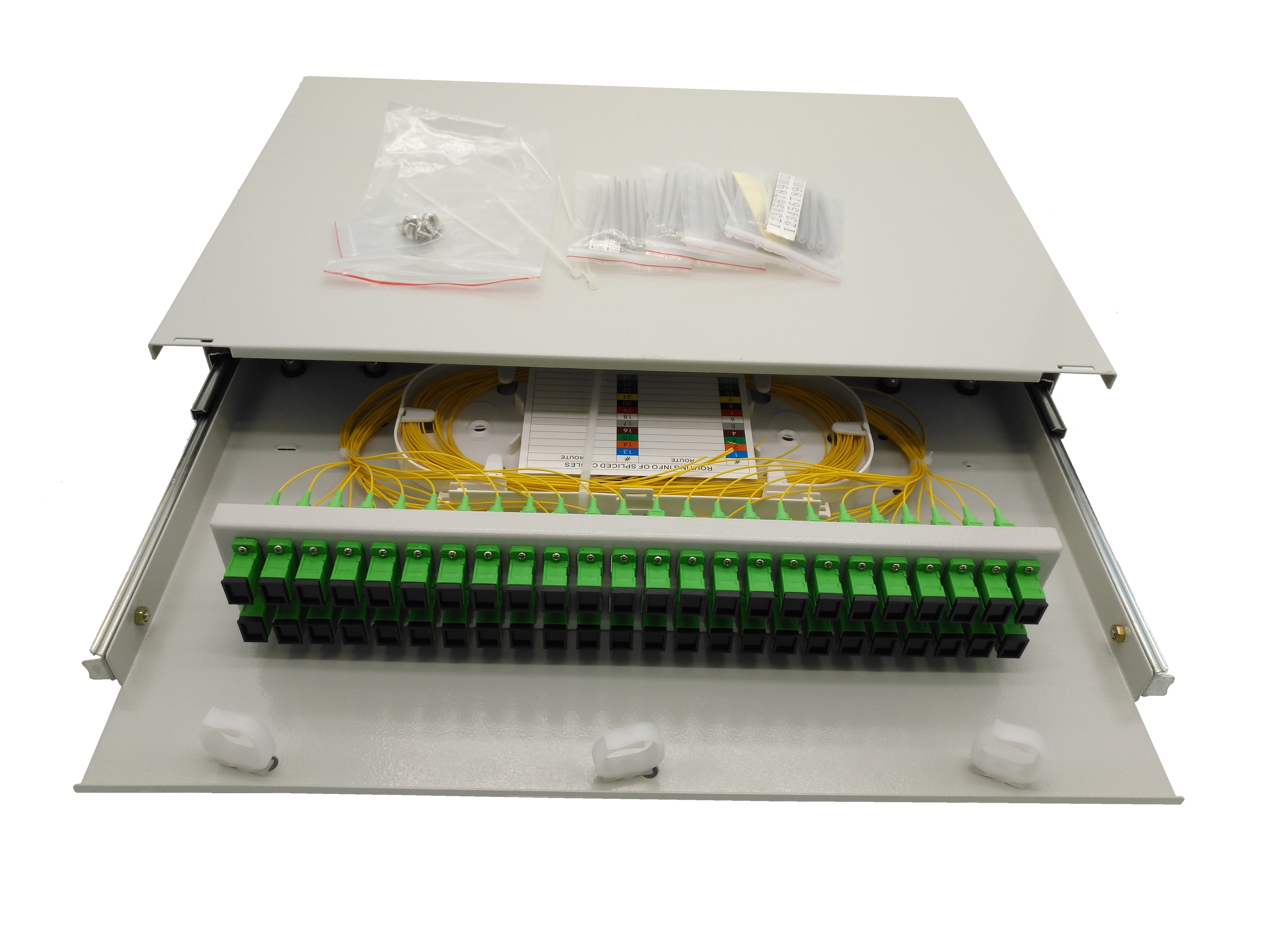

Metal sliding tray of the splice tray and bottom, easier and faster operation without open the cover, and take out for fiber management;

Indoor Metal Slide 2U 48 Port Patch Panel Rack Mount 2

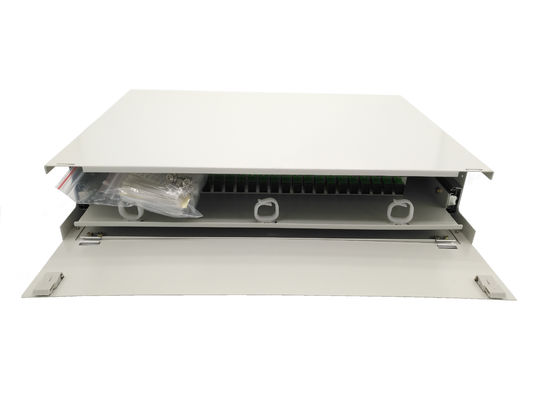

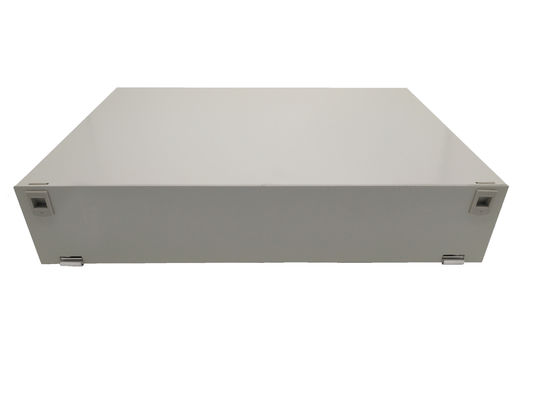

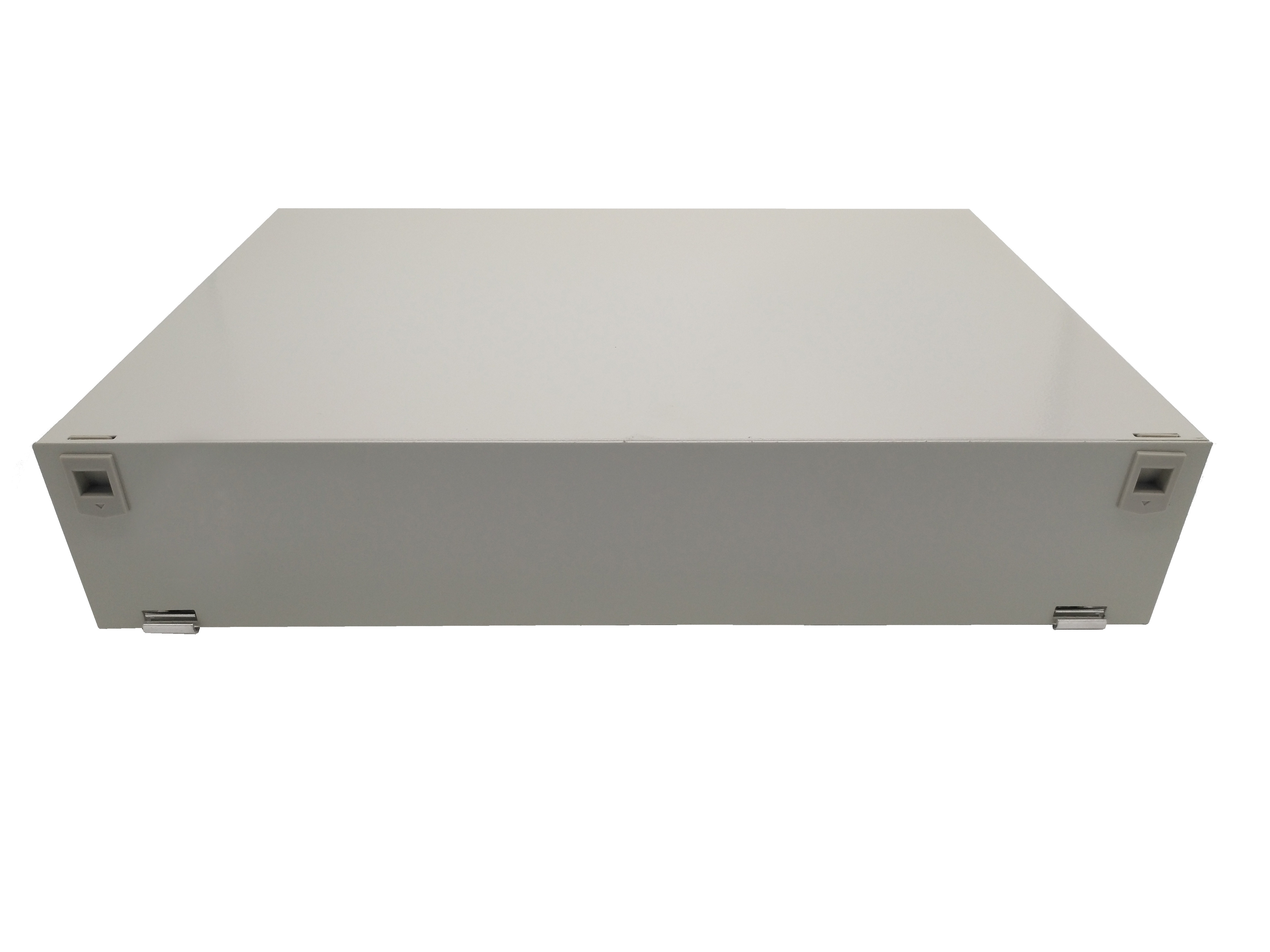

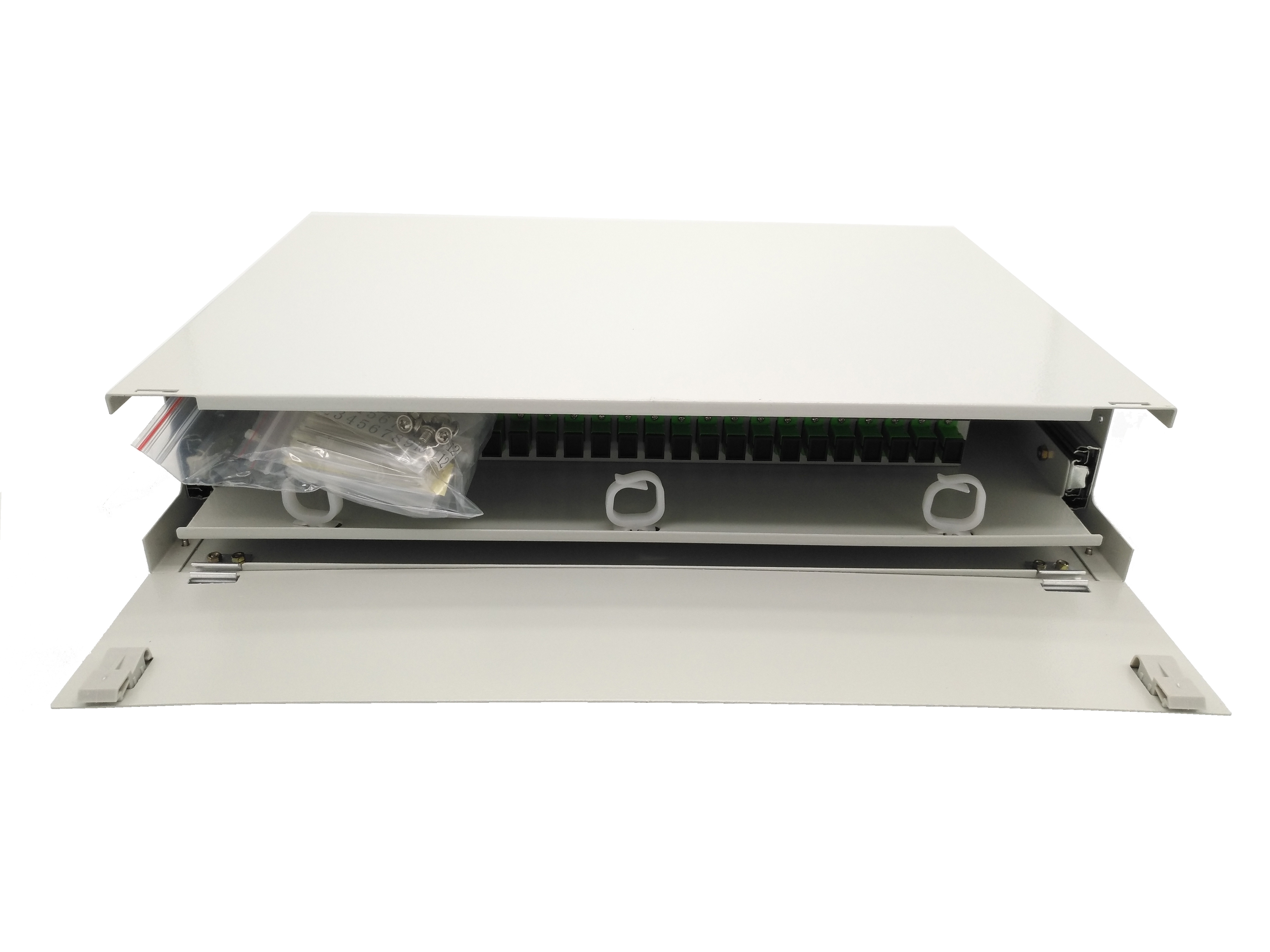

1.2mm Cold rolled steel sheet, with electrostatic spraying, outer apperance is smooth; you can open the box at front cover, it is clip design, dust proof.

Indoor Metal Slide 2U 48 Port Patch Panel Rack Mount 3



4 cable entry ports at back with rubber seal to prevent dust, each port with cable clamps and protection devices, the metal parts are stianless steel or galvanized iron, guarantee service life and indoor application.

Indoor Metal Slide 2U 48 Port Patch Panel Rack Mount 4

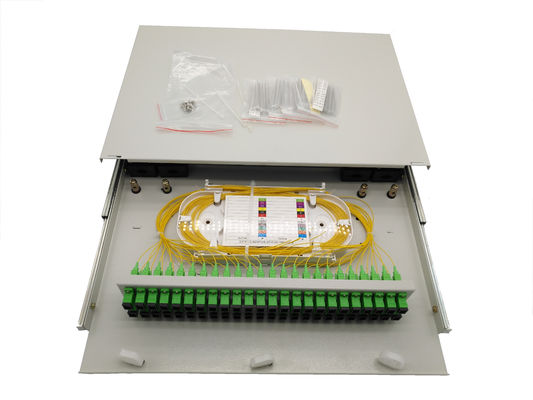

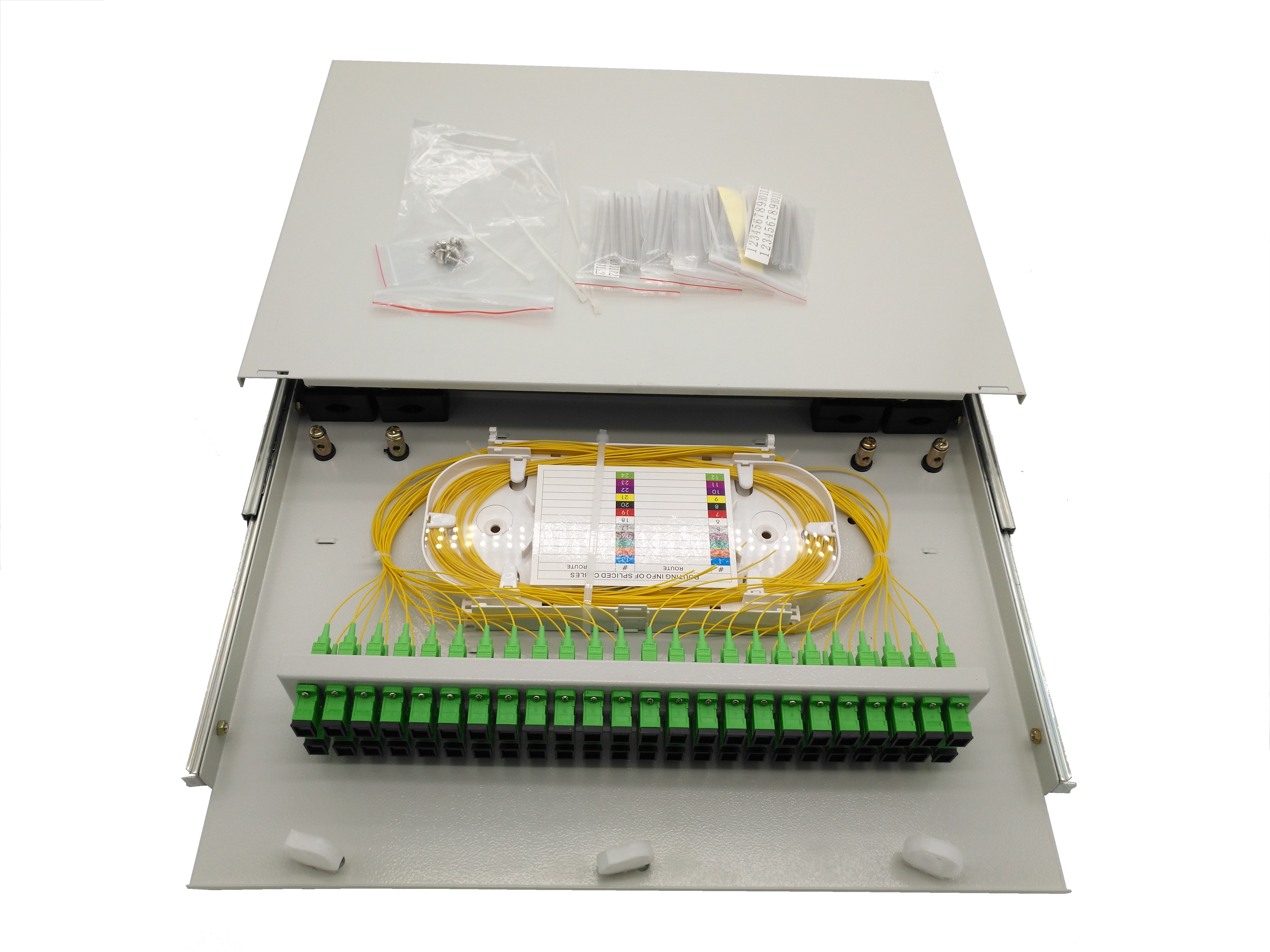

Each fiber optic fusion splice tray will be 24cores single fiber slots, which can use 40mm 45mm ot 60mm protection tubes, it is big size and large space for fiber management. The pre-loaded pigtails will be fixed and keep in place by nylon tie to prevent it from fiber breaking or a mess.

Indoor Metal Slide 2U 48 Port Patch Panel Rack Mount 5





Pack information

Quantity/carton box Carton size Weight/carton box
4pcs 47*35*55cm 26.35kg
