12 Ports 19 Inch Rack Mount Slding Fiber Optic Patch Panel 1U LC UPC Duplex 24 Cores

12 Ports 19 Inch Rack Mount Slding Fiber Optic Patch Panel 1U LC UPC Duplex 24 Cores
12 Ports 19 Inch Rack Mount Slding Fiber Optic Patch Panel 1U LC UPC Duplex 24 Cores 12 Ports 19 Inch Rack Mount Slding Fiber Optic Patch Panel 1U LC UPC Duplex 24 Cores 12 Ports 19 Inch Rack Mount Slding Fiber Optic Patch Panel 1U LC UPC Duplex 24 Cores 12 Ports 19 Inch Rack Mount Slding Fiber Optic Patch Panel 1U LC UPC Duplex 24 Cores

Large Image :  12 Ports 19 Inch Rack Mount Slding Fiber Optic Patch Panel 1U LC UPC Duplex 24 Cores

Product Details:
Place of Origin: china
Brand Name: YINGDA
Certification: ISO,CE
Model Number: GPSR-2LC12
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: Negotiable
Packaging Details: 1 pc / box, 5 pcs / carton box

12 Ports 19 Inch Rack Mount Slding Fiber Optic Patch Panel 1U LC UPC Duplex 24 Cores

Description
Material: Cold Rolled Steel Thickness: 1.2mm SPCC
Capacity: 24 Cores Single Fiber Pigtails Connector Port: LC Duplex Adapter Port
Application: 19inch Optical Distribution Frame (ODF) Installatino Method: Rack Mount Patch Panel
Color: Black Dimension: 480*300*1U Mm
High Light:

rack mount odf

,

sliding patch panel

12 Ports 19 Inch Rack Mount Slding Fiber Optic Patch Panel 1U LC UPC Duplex 24 Cores



Rack  Mount patch panel is mainly used for connetion and storage between optical f iber cable and pigtail in equipment. It can be wal mounted and floor-standing installation. The box body is made of high quality cold rolled steel, electrostatic sparying, the appearance is beautiful and the operation is convenient.



Yingda sliding fiber optic patch panel can install SC LC FC ST adpaters, and maxmim can be 12cores, 24cores, 48cores, 72cores 96cores 144cores on customer request by 1U 2U 3U 4U 6U etc. Adapter panel can be simplex, duplex by hozitontal or oblique design with mounting brakcets to fix on rak mount frame. It is smart design to supply from protection for optical cable terminal connection and optical fiber adapter installation. It is a combine of termiantion, protection, connection and management of fiber cables.





12 Port Fiber Optic Patch Panel Features

  • Flexible standard 19” rack cabinet installation
  • Complete front operations with cable fixtures and management rods, large area, reasonable design
  • Sufficient spooling area for redundant fibers inside of patch panel
  • Spooling space available for fibers and pigtails to enhance protection for the fibers, pigtails and connections
  • Adapter mounting bar available to hold multiple types of adapters like FC SC ST LC and E2000, etc.
  • Complete bending radii protection
  • all parts in the box will be fix with screws on bottom
  • Main cable enter the box from back, and then distribution in front operation

12 Ports 19 Inch Rack Mount Slding Fiber Optic Patch Panel 1U LC UPC Duplex 24 Cores 0

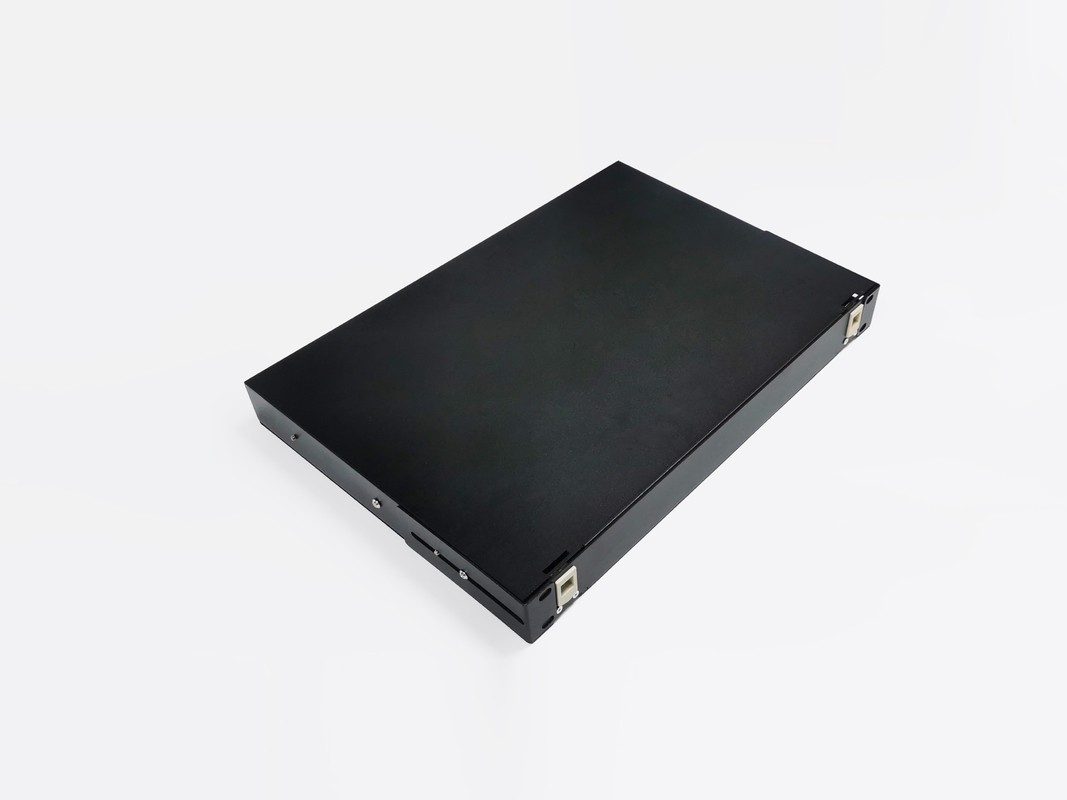

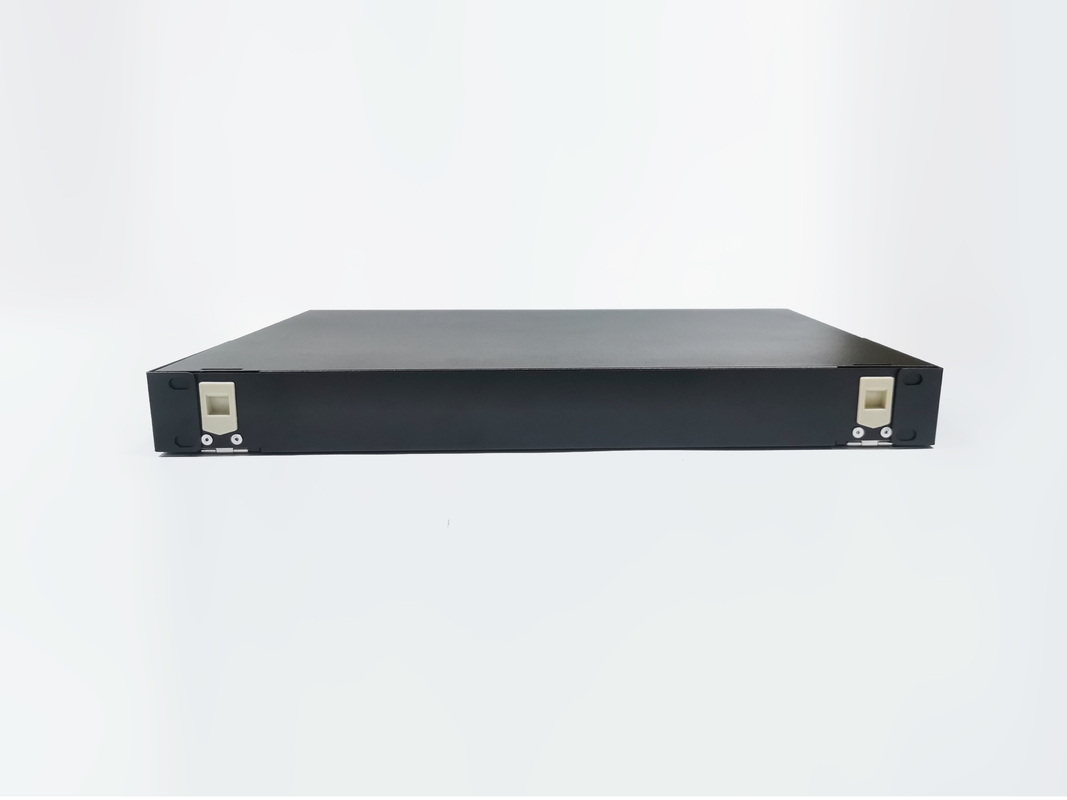

This 12port patch panel is deisng for 19inch rack, the mounting ears is fixed on both side of the box before delivery with screws, when construction, please unscrew it then turn around to fix it on the box to mount.


12 Ports 19 Inch Rack Mount Slding Fiber Optic Patch Panel 1U LC UPC Duplex 24 Cores 1

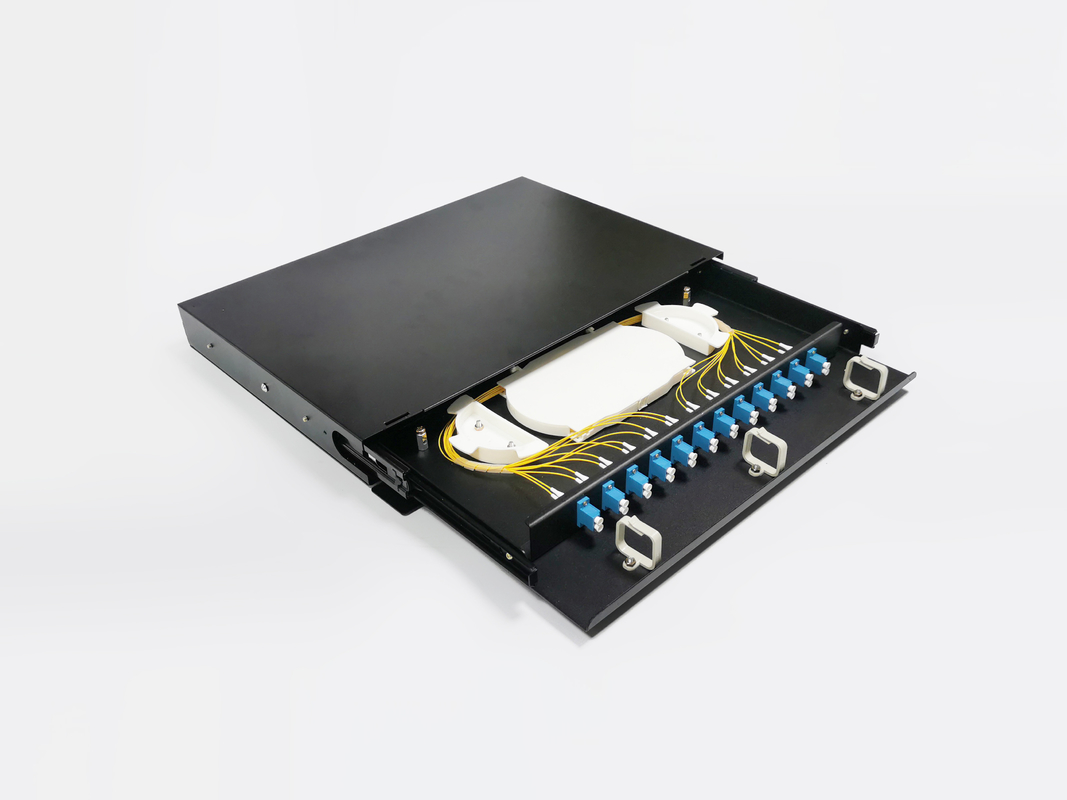

There is large fiber management area in front of the adapter plates, the distribution pigtails or cables can be out from left or right side, and with plastic clamps for cable winding to ensure each fiber not disturb each other.


12 Ports 19 Inch Rack Mount Slding Fiber Optic Patch Panel 1U LC UPC Duplex 24 Cores 2

This LC UPC patch panel use metal slide, Smooth dragging and convenient installation.

Only pull out of the bottom then can easily manage fiber , after done, pull back to lock it with front doors, dustproof design.


12 Ports 19 Inch Rack Mount Slding Fiber Optic Patch Panel 1U LC UPC Duplex 24 Cores 3

  • 1U patch panel can put 2pcs 12fiber trays, each tray fusion splice capacity is 12cores single fiber, if dual fiber, can maximum 24cores.
  • Meanwhile, the adapter plates in front 1U height can do maximum 24pcs SC duplex = 48cores, all adapters will fix with screws.
  • Silk print customer logo, brand, serial number, or other information on the box as your wish.

12 Ports 19 Inch Rack Mount Slding Fiber Optic Patch Panel 1U LC UPC Duplex 24 Cores 4

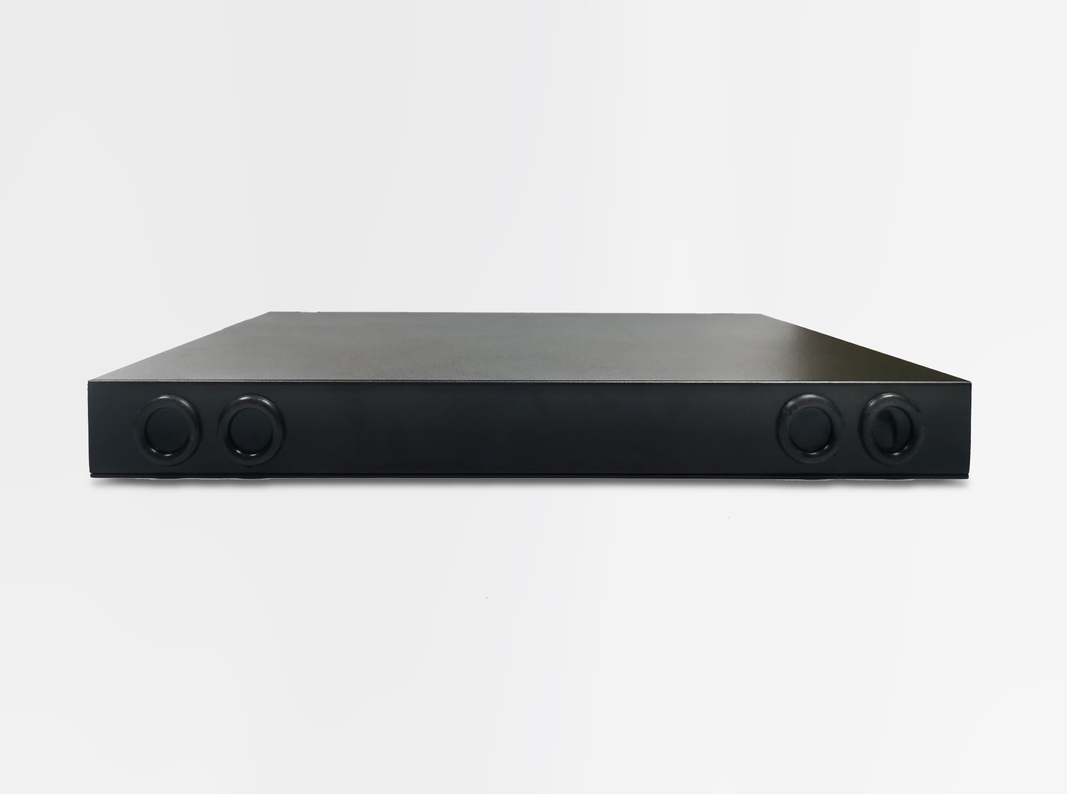

Yingda Patch panel cable ports opened at back, the quantity and cable diameter can be customized. If customer not specify, will do 4ports at back, 2pcs each side, cable diameter 20mm with rubber seal for dust proof.

Inside of the box will be metal cable fixture and plastic fixtures accordingly, which ensure all cable in place in long run and not mess.


Rack Mount Patch Panel Order information

Model

Dimension (mm)

Max Capacity (cores)

GPSR-SC12

480×200×1U

12

GPSR-SC24

480×200×1U

24

GPSR-SC48

480×200×2U

48

GPSR-FC12

480×200×1U

12

GPSR-FC24

480×200×1U

24

GPSR-FC48

480×200×2U

48

GPSR-ST12

480×200×1U

12

GPSR-ST24

480×200×1U

24

GPSR-ST48

480×200×2U

48



24 Cores Optical Fiber Patch Panel Technical specification

ambient temperature -25℃~+40℃
relative humidity ≤85%(+30℃)
atmospheric pressure 70kPa~106kPa
Insulation resistance

fiber optic cable terminal and cable metal strength member,

fiber optic cable metal components itself, fiber optic cable

metal components and the ground, the insulation resistance

should > 2 x 104MΩ.

Dielectric strength

fiber optic cable terminal and cable metal strength member,

fiber optic cable metal components itself, fiber optic cable

metal components and the ground, under 15kV voltage for

1min without breakdown, no arcing phenomena.






12 Ports 19 Inch Rack Mount Slding Fiber Optic Patch Panel 1U LC UPC Duplex 24 Cores 5

Standard accessory include: rack mount ears, splice tray, mounting kits, heat shrink protection sleeve, nylon tie, cable clamps



If need pre-terminated with pigtails and adapters, please talk with sales for details.

OEM or ODM is acceptable.
