E2000 SC 48 Port ODF 480mm Fiber Optic Patch Panel

E2000 SC 48 Port ODF 480mm Fiber Optic Patch Panel

  • High Light

    480mm Fiber Optic Patch Panel

    ,

    ODF Fiber Optic Patch Panel

    ,

    480mm Optical Patch Panel

  • Material
    Cold Rolled Steel
  • Cable Entry
    4 Ports At Back Diameter 20mm
  • Cable Ouputs
    4 8port SC Adapter Simplex
  • Color
    Black
  • Size
    430*300*2U Mm, Max, 480mm
  • Type
    Rack Mount Patch Panel
  • Rack Size
    19 Inch Or 23inch
  • Adapter
    SC, LC, FC,ST, E2000, Etc
  • Box Open
    Front Clip
  • Tray Type
    Drawer Out Patch Panel
  • Splice Tray Quantity
    2pcs 24cores Tray
  • Features
    48port SC ODF
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO
  • Model Number
    GPSR-2U-SA48
  • Minimum Order Quantity
    100PCS
  • Price
    negotiable
  • Packaging Details
    1pc per box, 3pcs per carton box
  • Delivery Time
    1week
  • Payment Terms
    T/T, Western Union,paypal
  • Supply Ability
    10000pcs per month

E2000 SC 48 Port ODF 480mm Fiber Optic Patch Panel

E2000 SC 48 Port ODF 480mm Fiber Optic Patch Panel

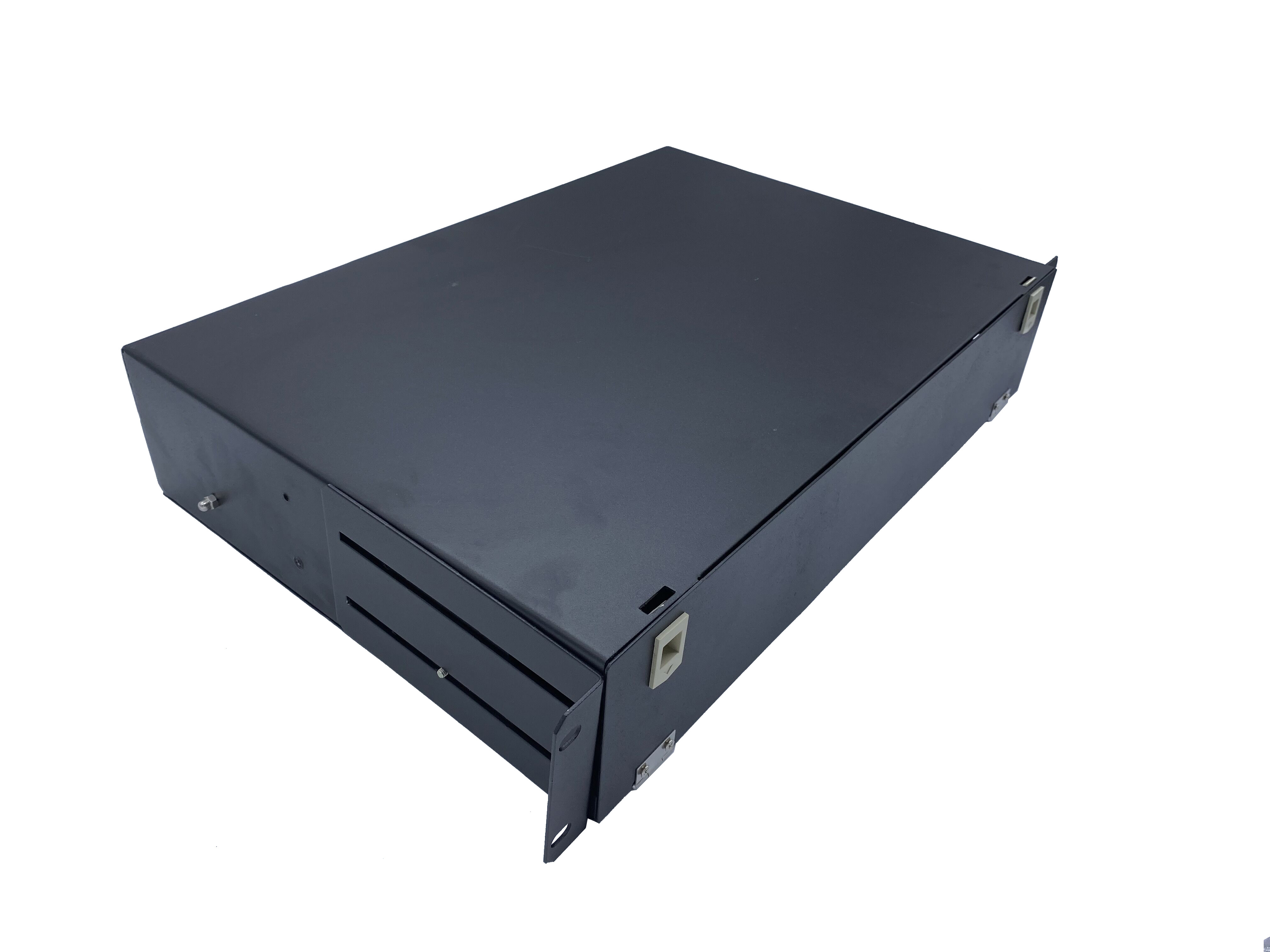

48 Port SC19 Black Metal Slide Drawer Fiber Optic Patch Panel Rack Mount ODF480mm





This fiber optic 19” ODF box is 19 inch standard size sliding drawer type rack mount patch panel, it is the auxiliary equipment for terminal wiring in optical fiber transmission communication network, and ssuitable for indoor optical cable splice directly and branch connection, and protection of the optical fiber.



Specification

MODELGPSR-2U-SA48
Dimension430*300*2U mm
Max capacity48 cores
Adapter portSC SIMPLEX
Adapter qty48 pcs SC/APC or LC duplex adapter
Thickness1.2mm
MaterialCold rolled steel sheet, with electrostatic spraying
ColorBlack, white
Cable entry4pcs φ20mm
Net weight6.2kg





Pack information



Quantity/carton boxCarton sizeWeight/carton box
4pcs470*350*550mm

26.35kg

E2000 SC 48 Port ODF 480mm Fiber Optic Patch Panel 0

Total box is closed with 2 clips and 2 hinges on front cover, open the front door, we can draw out of the internal whole part with splice tray, and cable clamps. The box can be rack mounted with the mounting ears at both sides on 19inch or 23 inch optical distribution frame, fix by screws, when delivery, the ears will ba pack around the box. The box use 1.2mm Cold rolled steel sheet, with electrostatic spraying;

E2000 SC 48 Port ODF 480mm Fiber Optic Patch Panel 1

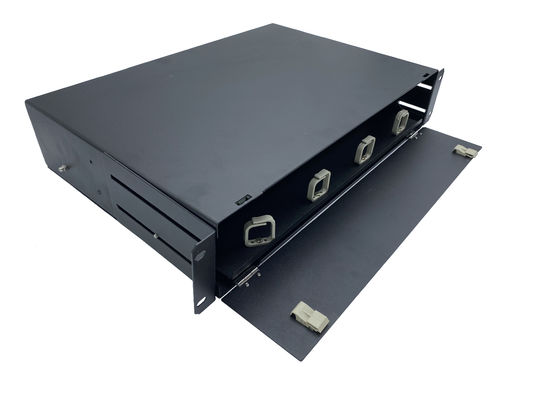

At back of the box, there are 4 pieces cable entry ports with rubber seal, the diameter can be customerized, the standard is 20mm.

Inside of the cable entry, there is plastic protection devices and metal clamps for cable fixting, which makes cable in place and stable.



E2000 SC 48 Port ODF 480mm Fiber Optic Patch Panel 2

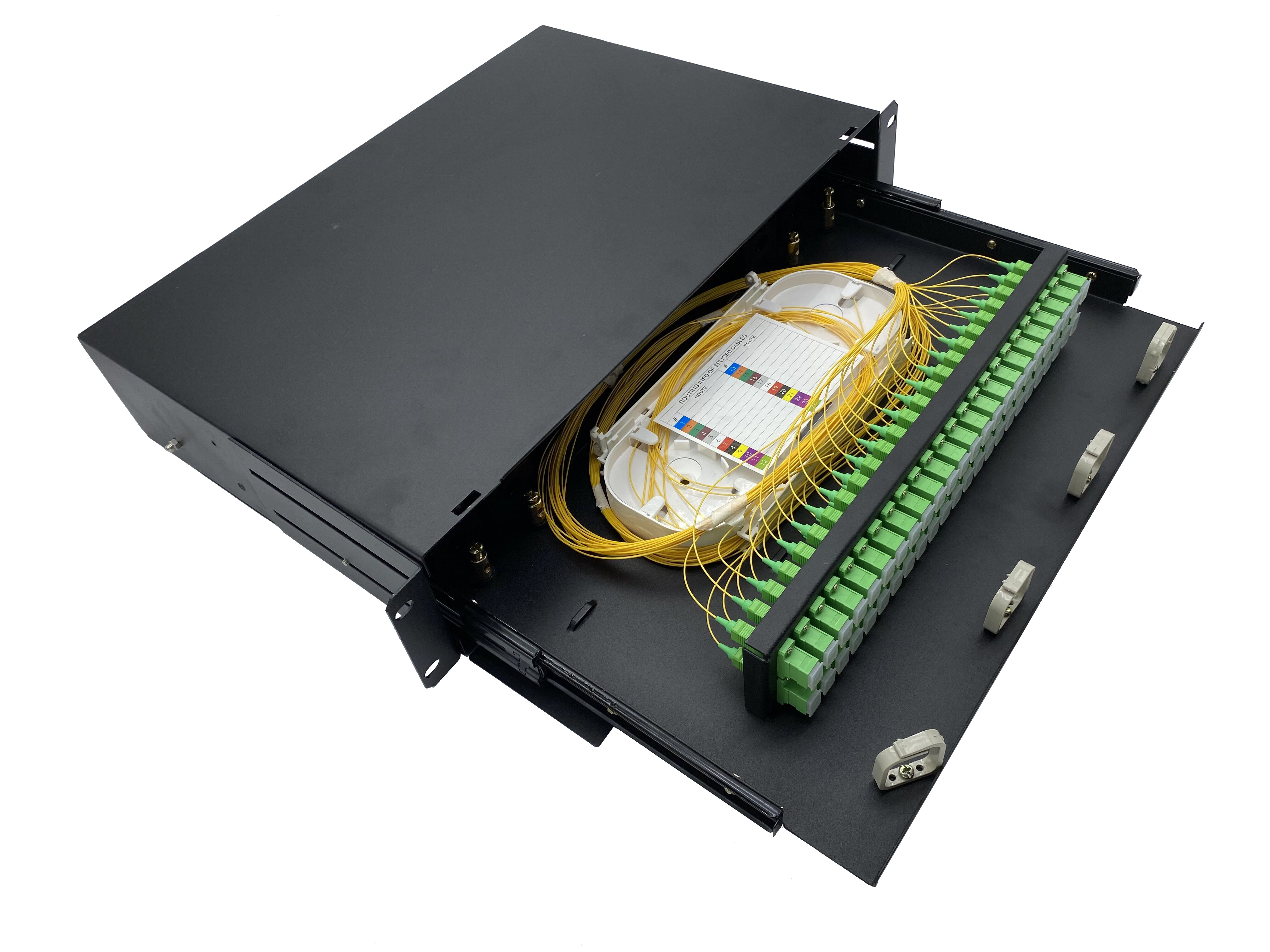

The patch panel adopts metal sliding tray for draw out of the fusion part and the bottom, asier and faster operation without open the cover, and take out for fiber management;

  • Suitable for FC,SC,ST,LC,E2000 adapters on request



E2000 SC 48 Port ODF 480mm Fiber Optic Patch Panel 3

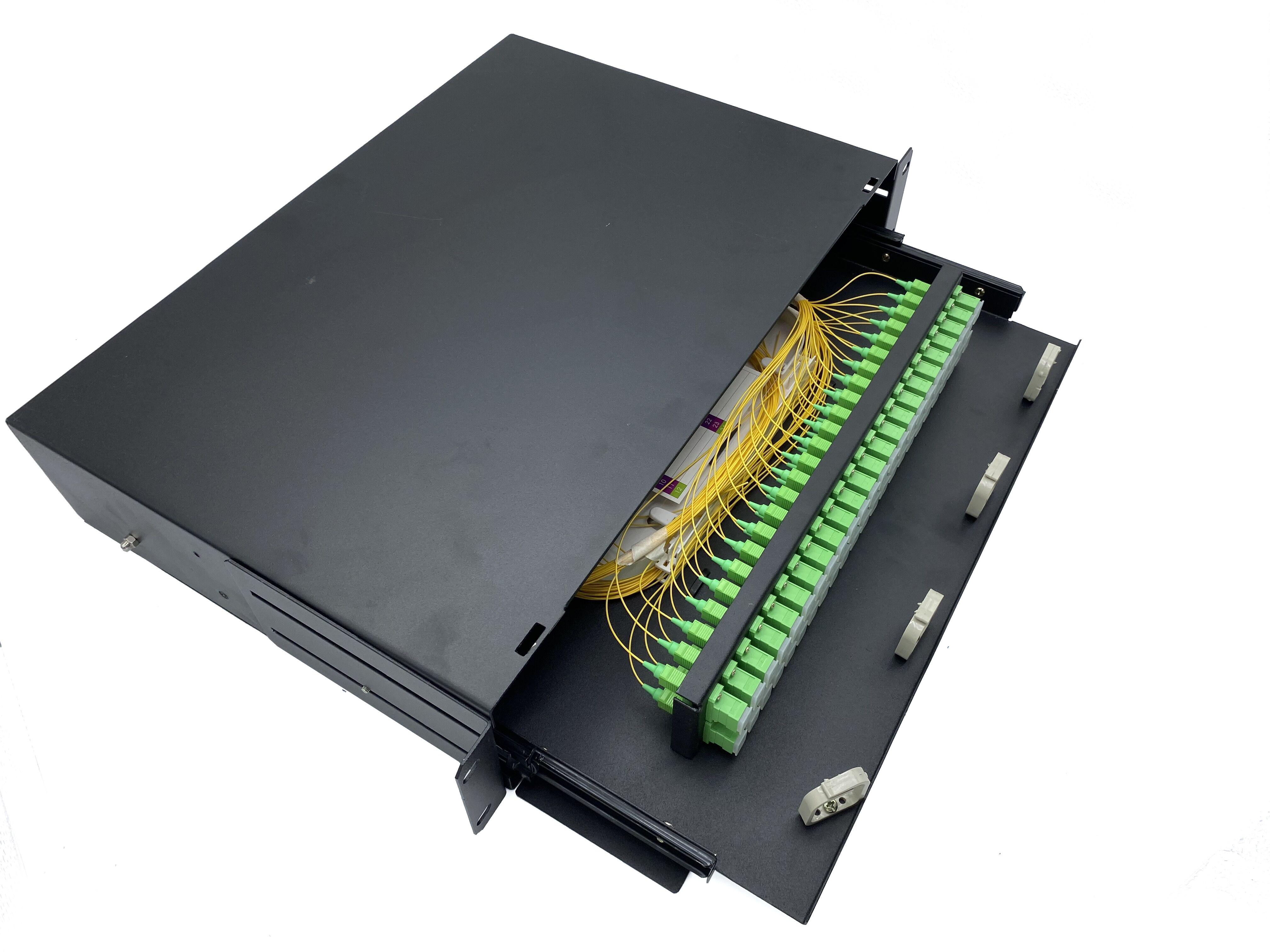

The adapter plate is fixed on the drawer plate by screws, the size and length can be customized. 2U maximum can hold 48cores SC simplex adapters. All the adapters are fixed by mini screws on the plate, will not move or come out after long time transporation. There are 4pcs plastic cable clamps at front of the adapter for cable exit and management, humanity design and good protection.



E2000 SC 48 Port ODF 480mm Fiber Optic Patch Panel 4

The 24cores fusion splice tray is plastic white, made of brand new ABS material, multi-trays can be stacked together, and fix on the box with screws. And there is 1.6meter long space area for fiber management or distribute.



E2000 SC 48 Port ODF 480mm Fiber Optic Patch Panel 5

We suggest to use transparent dust cap for adapters so as to test if the fiber is broken or not by human eyes easily. Also it is beautiful, but other dust cap is available on request.  Also this box can use E2000 SC LC ST FC adapters.





We can offer different type of ODF's like below, welcome inquiry:
