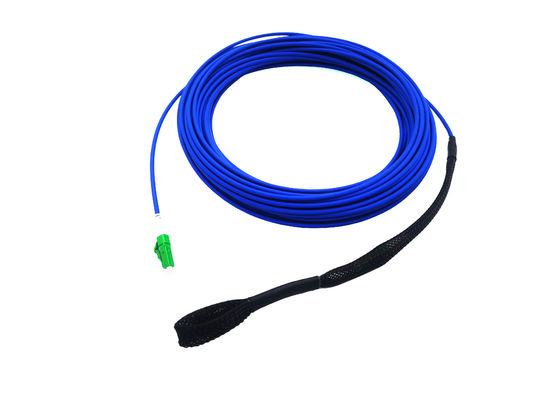

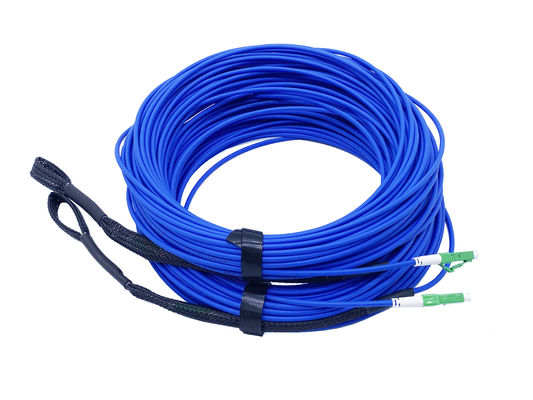

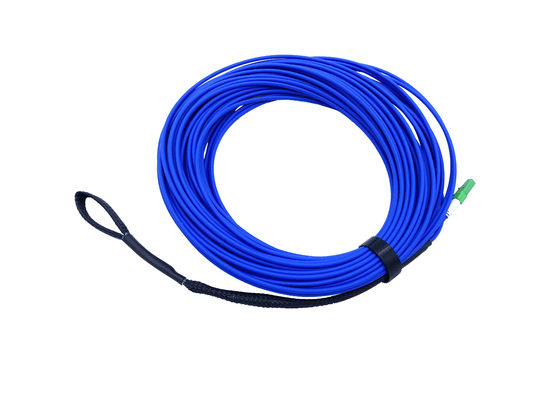

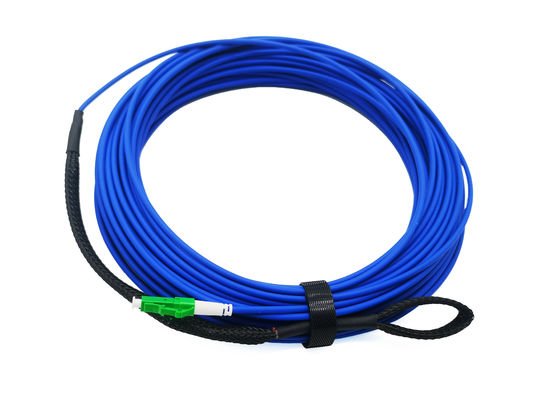

Pre Terminated FTTH Armoured Fiber Optic Patch Cord LC APC UL V0 Flame Retardant

MOQ: 500 pcs
Price: 0.36USD-30USD

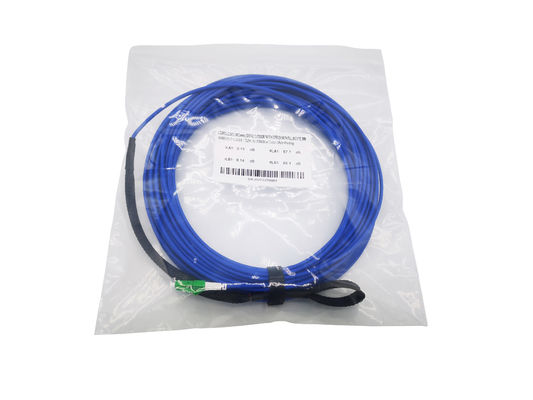

Standard Packaging: 1 pc/ bag, 100pcs / carton box
Delivery Period: 7-10 days after payment
Payment Method: Western Union, T/T, L/C
Supply Capacity: 200,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS ROHS
Model Number
YDPC-LALA-3020-SSX-A1
Connector:
LC/APC
Fiber Count:
1 Core
Insertion Loss:
<0.3dB
Cable Length:
20 Meter
Cable Diameter:
3.0mm
Fiber Type:
Singlemode SM 9/125um G657A1
Package:
Plastic Bag
Cable Color:
Blue
Cable Material:
LSZH
Flame Retardant:
UL V0 Non-flame
Product Name:
Fiber Cable,fiber Optic Patch Cables,fiber Optics Patch Cords,fiber Optic Jumpers,fiber Optic Jumper Cables,fiber Optik Patch Cord
Highlight:

Armoured Fiber Optic Patch Cord

,

FTTH Fiber Optic Patch Cord

,

FTTH single mode fiber patch cord

Product Description

Pre Terminated FTTH Armoured Fiber Optic Patch Cord LC APC UL V0 Flame Retardant


Armored fiber optic jumpers can be laid directly in the engine room and a variety of harsh environments, without protection sleeve, to save space, reduce construction cost, and greatly enhance the ease of network maintenance.


It uses a small flexible stainless steel sleeve to protect the optical fiber, and then the sleeve is coated with flame retardant PVC to achieve the functions of moisture release and fire prevention. At the same time, we have developed a special manufacturing process and unique structure to ensure that the casing and joint are firmly connected. This unique design makes the construction wiring of armored optical fiber jumper simple and convenient, reduces the loss in the construction process, improves the service life of optical fiber jumper, and improves the safety and stability of the whole system.

Pre Terminated FTTH Armoured Fiber Optic Patch Cord LC APC UL V0 Flame Retardant 0


Fiber Optic Patch Cables Specification

item Single mode Multi-mode
UPC APC
Connector FC/SC/ST/LC/MU... FC/SC/ST/LC/MU...
Insertion loss ≤0.2dB ≤0.3dB ≤0.3dB
Return loss ≥50dB ≥60dB ≥35dB
Repeat ability ≤0.1dB ≤0.1dB
Operating temperature -40℃～+75℃ -40℃～+75℃
Mechanical during(500times) ≤0.2dB ≤0.2dB
Tensile strength >90N >90N
Compressive strength >1500N/100mm >1500N/100mm



Pre Terminated FTTH Armoured Fiber Optic Patch Cord LC APC UL V0 Flame Retardant 1

Pre Terminated FTTH Armoured Fiber Optic Patch Cord LC APC UL V0 Flame Retardant 2
​

Fiber Optic Jumpers Features

  • Small-diameter, stainless steel sheath tube to protect
  • Can resist improper reversing or damage, high tensile strength,high compressive strength and rodent
  • Without worrying about the damage caused by the construction to the optical fiber and damage in future
  • Construction is more convenient,good safety and reduce future maintenance cost​
  • Cable with Armoured, and pulling eye, better to protection the fiber when installation.

Pre Terminated FTTH Armoured Fiber Optic Patch Cord LC APC UL V0 Flame Retardant 3

Fiber Optic Jumper Cable Application:
Communications room, FTTH, LAN,Test equipment, Defense readiness, Measuring instruments, Fiber optic sensors,Optical fiber communication systems, Antenna television system, Active optical devices and equipment,etc.
Pre Terminated FTTH Armoured Fiber Optic Patch Cord LC APC UL V0 Flame Retardant 4


Yingda produce all kinds of armoured patch cord cables with different types of connectors, OEM welcome.
Pre Terminated FTTH Armoured Fiber Optic Patch Cord LC APC UL V0 Flame Retardant 5

PRODUCTION PROCEDURE

Pre Terminated FTTH Armoured Fiber Optic Patch Cord LC APC UL V0 Flame Retardant 6
