Fiber Optic Splitter Box
Created with Pixso. White 16 Port Outdoor Fiber Optic Termination Box IP65 PC+ABS Plastic 1X16 Splitter Box

White 16 Port Outdoor Fiber Optic Termination Box IP65 PC+ABS Plastic 1X16 Splitter Box

Brand Name: YINGDA
Model Number: FDB0216G
MOQ: 100PCS
Price: 1.0USD-18.6USD
Delivery Time: 6days
Payment Terms: Western Union, MoneyGram, T/T
Detail Information
Place of Origin:
china
Certification:
ISO,SGS
Material:
ABS+PC
Color:
White
Ftth Drop Cable:
16 Pcs
Cable Ports:
2in 16out
Plc Splitter:
1x2,1x4,1x8,1x16
Adapter:
SC, LC Duplex
Max Splicing:
24 Fibers LC
Application:
Wall Mount Or Pole Mounting
Customer Logo:
Silk Print
Cable Entry:
Uncut Cable Port (express Port) Or Cable Gland
Packaging Details:
1pc in a box, 10 pcs per carton box
Supply Ability:
5000pcs/month
Highlight:

optical distribution box

,

splitter distribution box

Product Description

White 16 Port Outdoor Fiber Optic Termination Box IP65 PC+ABS Plastic 1X16 Splitter Box

Model: FDB0216G

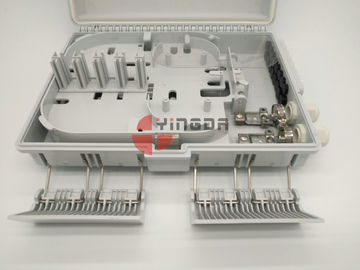

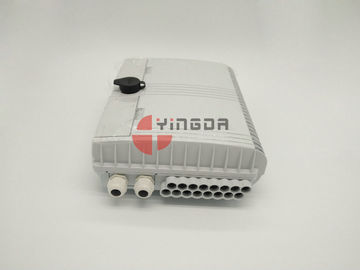

White 16 Port Outdoor Fiber Optic Termination Box IP65 PC+ABS Plastic 1X16 Splitter Box 0White 16 Port Outdoor Fiber Optic Termination Box IP65 PC+ABS Plastic 1X16 Splitter Box 1



Applicaiton

  1. Fiber to the building FTTB
  2. Fiber to the home FTTH
  3. CATV Neworks
  4. Data communications network
  5. For use in outdoor and indoor
  6. Wall mounted or pole mounted



Features

  • Waterproof design for outdoor use
  • Ant-uv ulra violet
  • Protection level:IP67
  • Lock provided for extra security
  • Double-layer design for easier installation and maintenance
  • Fiber bend radius control(more than 40mm) and cable routing paths provided
  • Suitable for the fusion splice or mechanical splice or fast connector
  • Accommodation of PLC splitter 1x8, 1x16 mini module 900um 1meter

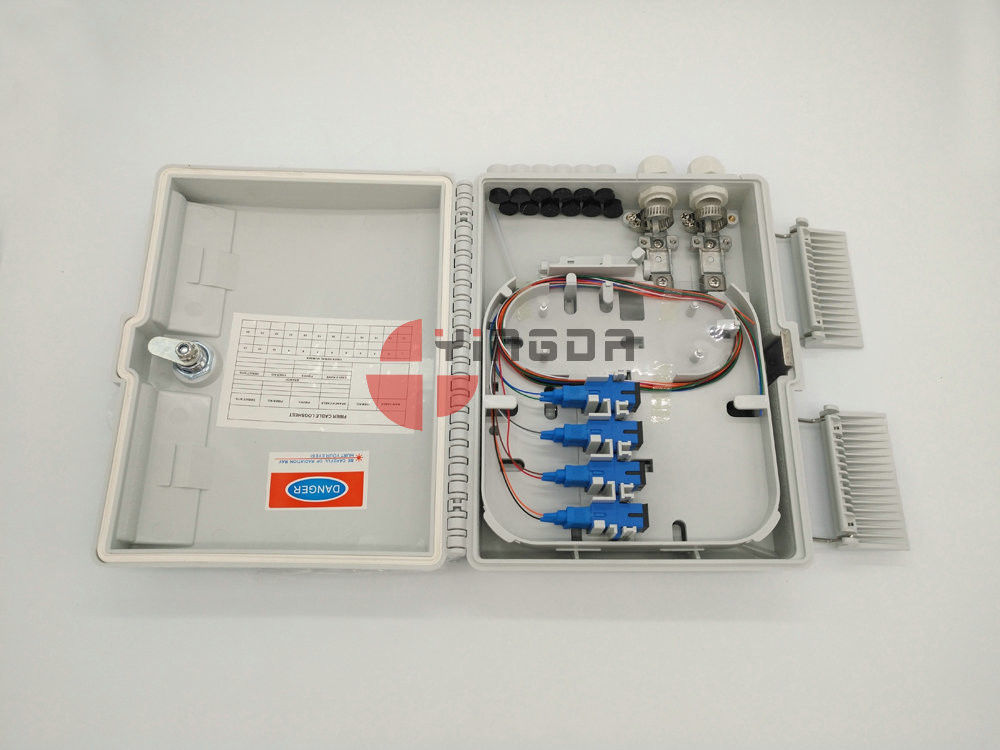

White 16 Port Outdoor Fiber Optic Termination Box IP65 PC+ABS Plastic 1X16 Splitter Box 2



Specification



Model Material Size Cable inport Cable outport Adapter qty Splice capacity PLC qty
FDB0216G ABS / PC 295*220*85mm 2pcs 16pcs drop cable 16pcs sc 24fibers 1x16,1x8



Technical data



Work temperature -40°C~+85°C
Reliable humidity ≤85% (+30°C)
Atmospheric pressure 70kPa~106kPa
Insertion loss ≤0.2dB
Return loss upc ≥50dB
Return loss apc ≥60dB
Insert and pull out life ≥1000times
insulation The grounding device is insulated with teh termination box, IR≥1000m Ω/500V (direct current)
Withstand voltage Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover,U≥3000V(direct current)



Standard configuration



Splice cassette,installation nuts,protection sleeves rubber plug for drop cables, cable fixtures,

cable ties, insulating tape, lock key



Optical configuration:



Pole mounting kits





More pictures

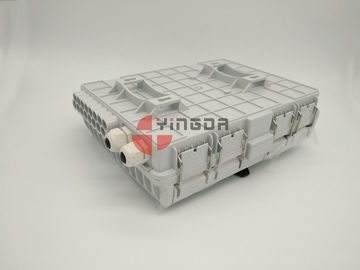

FDB0216G fiber terminal box is designed with waterproof anti-thief lock system.

White 16 Port Outdoor Fiber Optic Termination Box IP65 PC+ABS Plastic 1X16 Splitter Box 3White 16 Port Outdoor Fiber Optic Termination Box IP65 PC+ABS Plastic 1X16 Splitter Box 4



The fiber terminal box can be pole mount like below or wall mounted. It's made of PC+ABS materials, high strength engineering plastic.

White 16 Port Outdoor Fiber Optic Termination Box IP65 PC+ABS Plastic 1X16 Splitter Box 5White 16 Port Outdoor Fiber Optic Termination Box IP65 PC+ABS Plastic 1X16 Splitter Box 6



The adapter panel and splice tray on both sides of the same plate.

White 16 Port Outdoor Fiber Optic Termination Box IP65 PC+ABS Plastic 1X16 Splitter Box 7White 16 Port Outdoor Fiber Optic Termination Box IP65 PC+ABS Plastic 1X16 Splitter Box 8



Cable port and all box cover with rubber seal for better waterproof, and suitable for outdoor use.

White 16 Port Outdoor Fiber Optic Termination Box IP65 PC+ABS Plastic 1X16 Splitter Box 9White 16 Port Outdoor Fiber Optic Termination Box IP65 PC+ABS Plastic 1X16 Splitter Box 10



Order information



Model PLC SPLTITER Spitter qty Adapter Adapter qty Cable entry
FDB0216G 102=1X2 01=1pcs SA=SC/APC 01=1pcs A=cable gland
104=1X4 02=2pcs SU=SC/UPC 02=2pcs B=uncut cable
108=1X8 N=not include LU=LC/UPC 03=3pcs
116=1X16   LA=LC/APC ...
N=not include   N=not include 16=16pcs







YINGDA produce all kinds of fiber optic box, like:

fiber optic termination box, fiber optic distribution box, fiber optic terminal box,fiber optic splice box,fiber optic splitter box, fiber splice box, fiber splitter box,fiber distribution box, optical termination box, wall mount fiber termination box,ftth distribution box, ftth termination box, fibre optic splitter box, fibre optic splice box.

Any more question, pls inquiry us, thanks.
