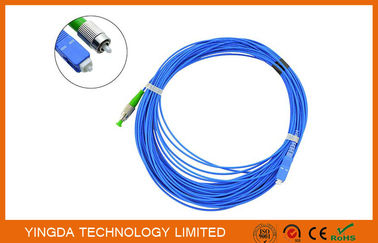

APC Fiber Optic Patch Cord , FC to SC Fiber Patch Cable Blue Singlemode 1.8mm LSZH

Place of Origin SHENZHEN,CHINA
Brand Name YINGDA
Certification ISO SGS ROHS
Model Number YDPC-SFA-SX-30
Minimum Order Quantity 500 pcs
Price negotiable
Packaging Details 1 pc / plastic bag
Delivery Time 5-8days after payment
Supply Ability 15,000 pcs / day
Product Details
Connector FC/APC, SC/UPC Fiber Count Simplex
Insertion Loss < 0.3 DB Return Loss >60 DB Apc; >55dB Upc
Fiber Length 20 Meter Cable Diameter 1.8 Mm
Cable Color Blue Connector Color SC - Blue, FC/APC - Green
High Light

fiber optic patch cable

,

multimode patch cord

Leave a Message
Product Description

SC to FC APC Fiber Optic Patch Cord, FC to SC Fiber Patch Cable Blue Singlemode 1.8mm LSZH





Fiber optic patch cord is one of most commonly used components in fiber optic network. fiber optic

patch cords sometimes is also called fiber optic jumper or fiber optic patch cables. generally there

are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic

patch cords. here the word mode means the transmitting mode of the fiber optic light in the fiber optic

cable core. usually single mode fiber optic patch cord are with 9/125 fiber glass and is yellow jacket

color, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiber glass and is orange color.



SC fiber optic patch cable is one of the earliest stype and one of the most commonly used fiber optic

cable, it is convenient to use and cost saving, SC fiber optic patch cord is widely uesed in fiber optic

networks. SC fiber patch cable is with zirconia sleeve and plastic housing.



The FC fiber optic patch cable is available in both singlemode and multimode versions, and is fully

intermateable with NTT-FC products. Both smf and mmf versions FC fiber optic patch cord come with

a zirconia ceramic ferrule with pre-polished PC profile and convex spherical end.



Features

  • Low insertion loss
  • Repeat ability
  • High return loss
  • Mutual Insert performance
  • Good temperature stability
  • Strong tensile property
  • Cheap multimode fiber price,short distance transmission
  • Wide transmission bandwidth



Application

  1. Fiber communication system
  2. Fiber access network
  3. Data transmission
  4. CATV
  5. LAN
  6. Test equipment
  7. Optical fiber sensor



Specification

Item

Standard,Master

Connector type

LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,

FC/APC,LC/APC.MU/APC

Duplex MTRJ/Female, MTRJ/Male

Fiber Type



9/125 SMF-28 or equivalent (Singlemade) OS1

50/125, 62.5/125 (Multimode) OM2&OM1

50/125, 10G  (Multimode) OM3

Cable Type

Simplex, Duplex (Zipcord)

Φ3.0mm, Φ2.0mm, Φ1.8mm

Φ1.6mm PVC or LSZH

Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH

Polishing Manner

UPC,SPC,APC (8°& 6°)

Insertion Loss

≤ 0.1dB (For Singlemode Master)

≤ 0.25dB (For Singlemode Standard)

≤ 0.25dB (For Multimode)

Tested by JDS RM 3750


Return Loss (For Singlemode)

UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750

Repeatability

 ±0.1dB

Operating temperature

-400C to 850C


Geometry Requirement

(For Singlemode)

Ferrule Endface Radius

7mm ≤ R ≤ 12mm (For APC)

10mm ≤ R ≤ 25mm (For Standard)

Apex Offset ≤ 30 μm (For Master)

Apex Offset ≤ 50 μm (For Standard)

Undercut -50nm ≤ U ≤ 50nm

Tested by DORC ZX-1



Ordering information



Boot (cable size)

Boot Color

Fiber Type

Cable number

Ferrule

Length

0.9mm

2.0mm

3.0mm

Black

Biege

Blue

Gray

White

Yellow

9/125um SM

50/125um MM

62.5/125um MM

OM3

OM4

Simplex

Duplex

Multi-fiber

PC

APC

Customized
