Fiber Cable Joint Box
Created with Pixso. Straight Through Fiber Cable Joint Box 6 Ports 295 * 202 * 81mm Dimension

Straight Through Fiber Cable Joint Box 6 Ports 295 * 202 * 81mm Dimension

Brand Name: YINGDA
Model Number: GJS-2011
MOQ: 100 PCS
Price: Negotiable
Delivery Time: 7days after get payment
Payment Terms: T/T, MoneyGram, Western Union
Detail Information
Place of Origin:
china
Certification:
ISO
Material:
PC
Color:
Black
Seal:
Mechanical Sealing
Cable Ports:
6 Ports For Cable, 8 Port For Drop Cable
Cable Diameter:
6 Ports: 8-20mm; 8 Ports: 2x3mm
PLC Splitter:
1x8, 1x4, 1x2 Bare PLC Splitter
Adapter:
SC/UPC Max. 8 Pcs

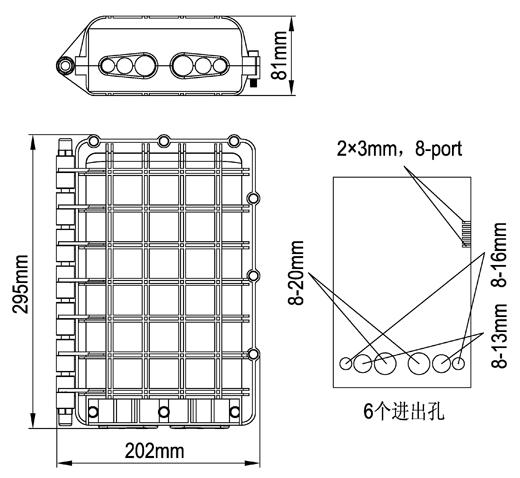

Dimension:
295*202*81mm
Packaging Details:
1pc / box, 6 pcs / carton box
Highlight:

fiber optic junction box

,

fiber optic cable junction box

Product Description

8 Pc Drop Cable Fiber Splice Closure, 6 Ports Fiber Optic Closure FTTH Splitter Distribution Box





GJS-2011 Splitting and Wiring fiber optical splice closure not only have the butt-joint and branching

function, but also have the function of optical cable splitting and wiring, suitable for the installation

of main optical cables and drop cables with different diameters.

Straight Through Fiber Cable Joint Box  6 Ports 295 * 202 * 81mm Dimension 0Straight Through Fiber Cable Joint Box  6 Ports 295 * 202 * 81mm Dimension 1



Straight Through Fiber Cable Joint Box  6 Ports 295 * 202 * 81mm Dimension 2Straight Through Fiber Cable Joint Box  6 Ports 295 * 202 * 81mm Dimension 3

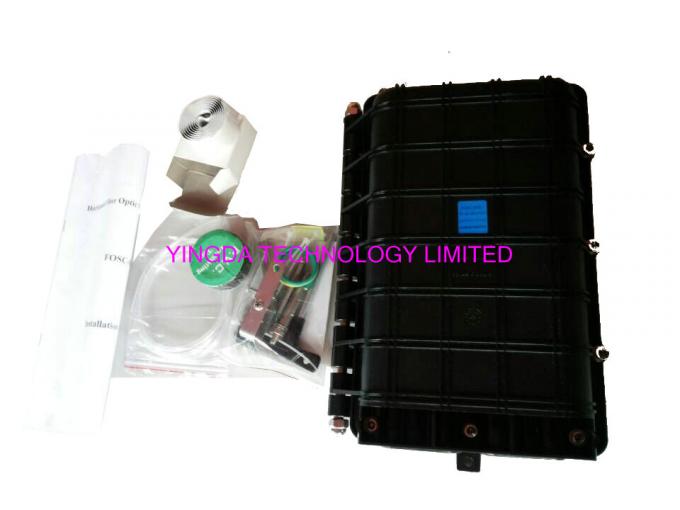

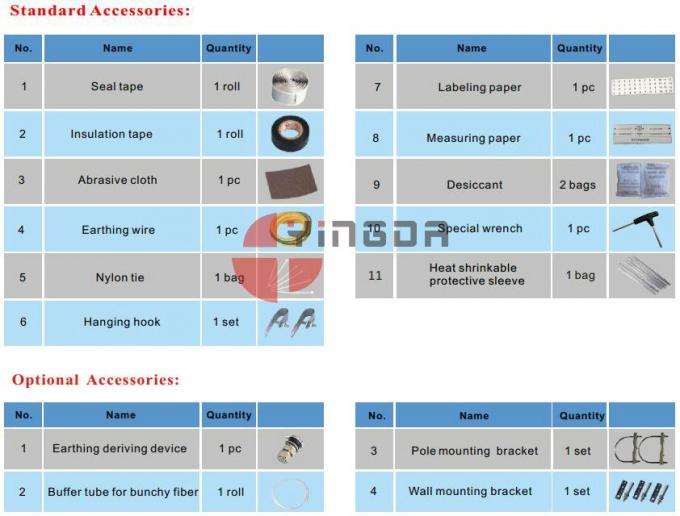

Package: 1 piece / box, with all wall mounting accessories and user manual



Straight Through Fiber Cable Joint Box  6 Ports 295 * 202 * 81mm Dimension 4Straight Through Fiber Cable Joint Box  6 Ports 295 * 202 * 81mm Dimension 5

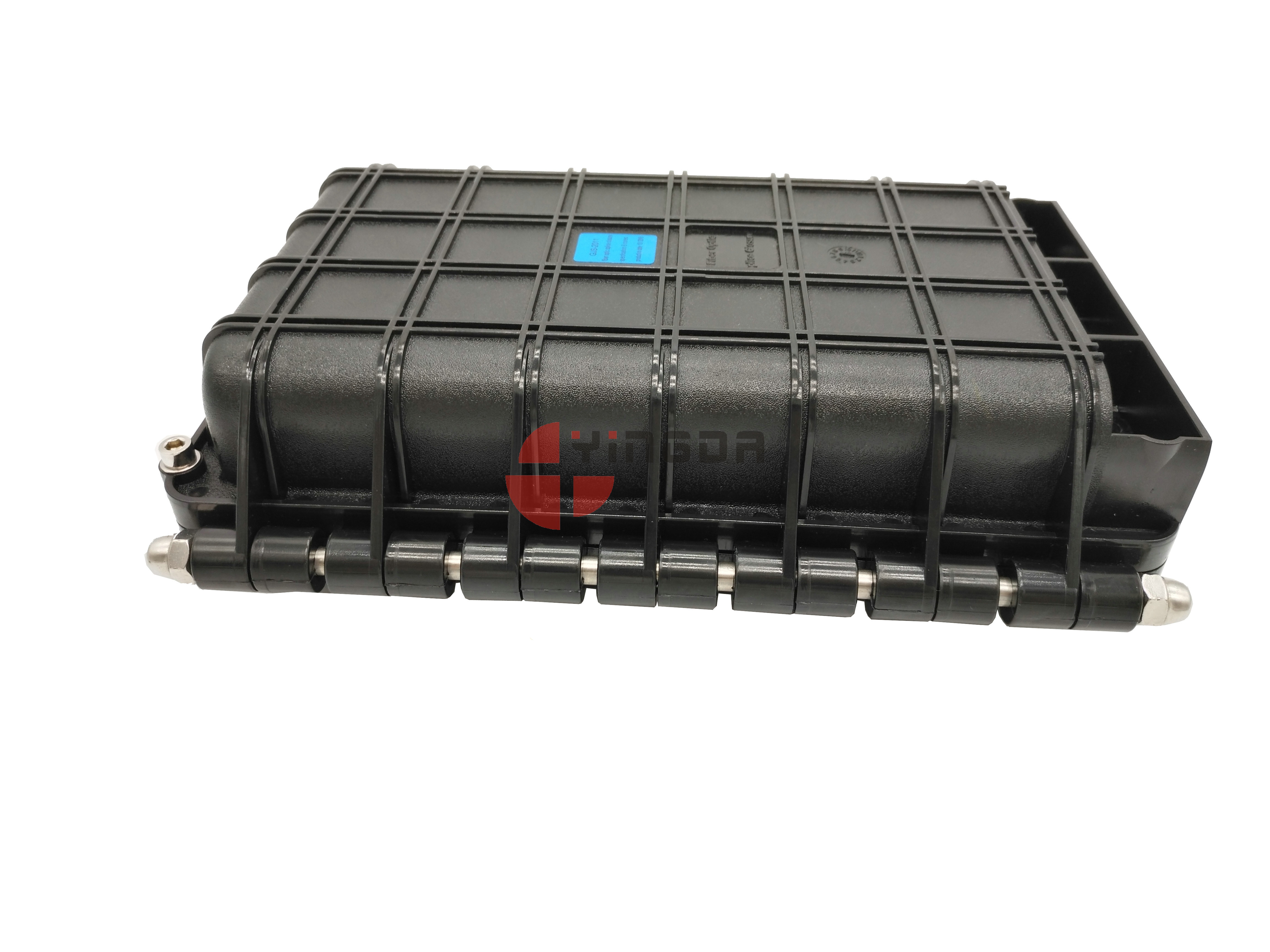

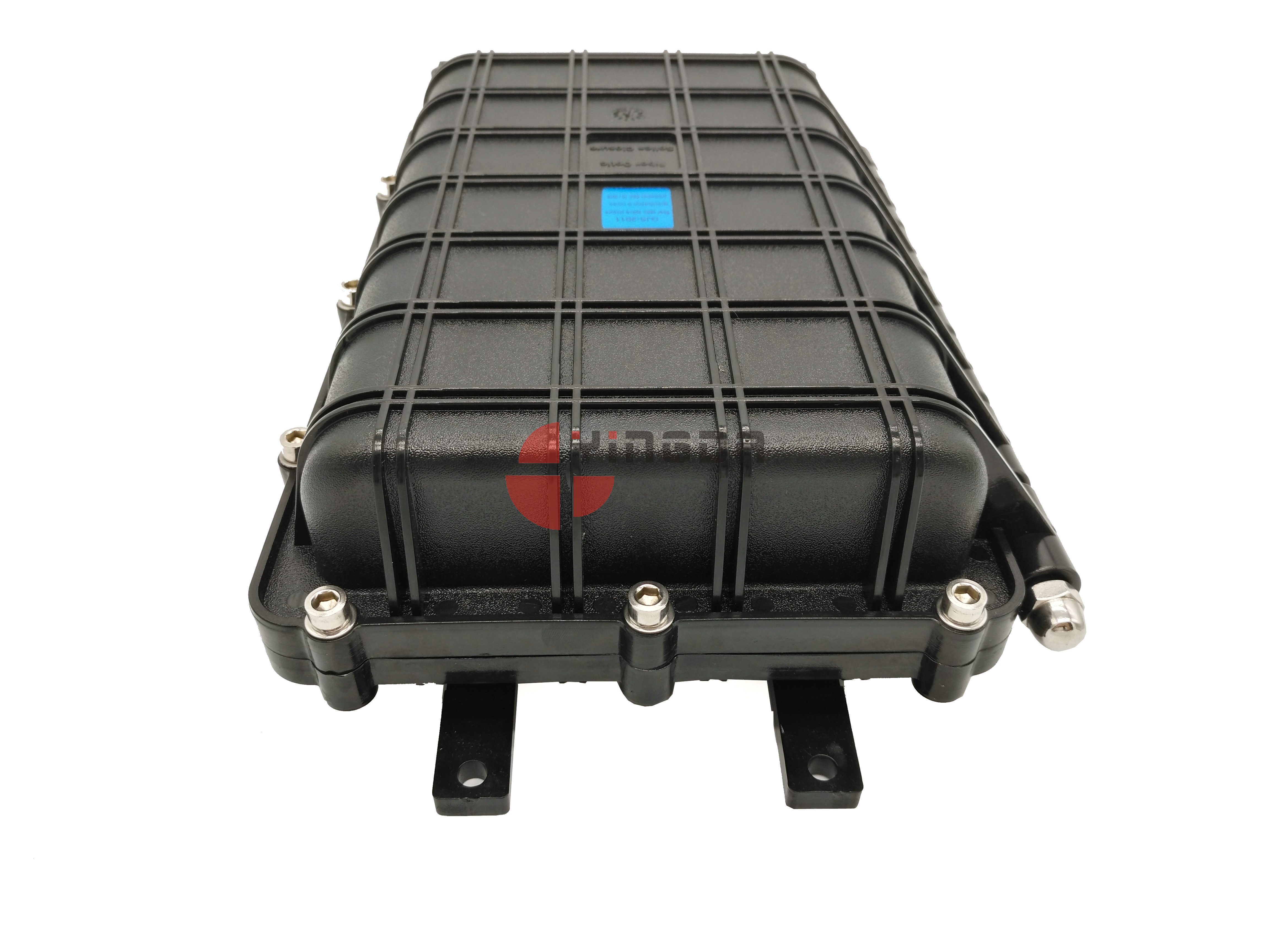

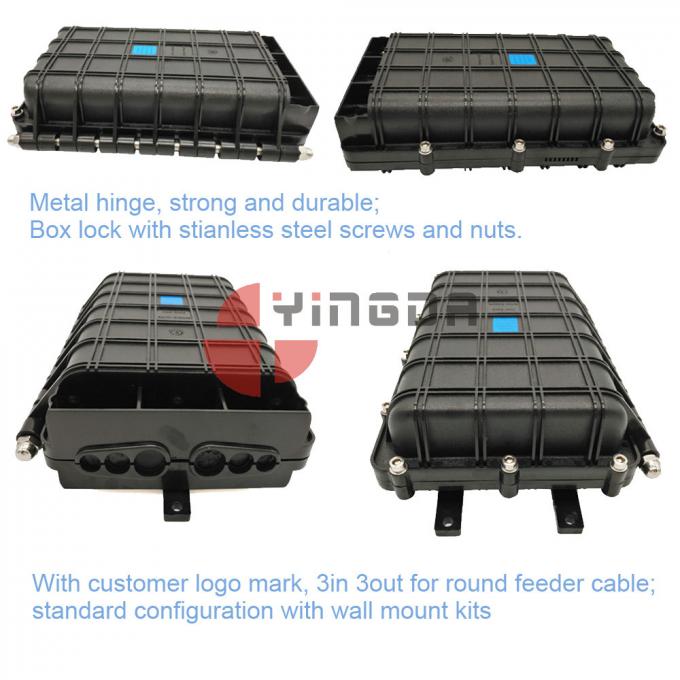

box is total enclosed design with screws and nuts, with waterproof rubber seal, IP65 protection grade;

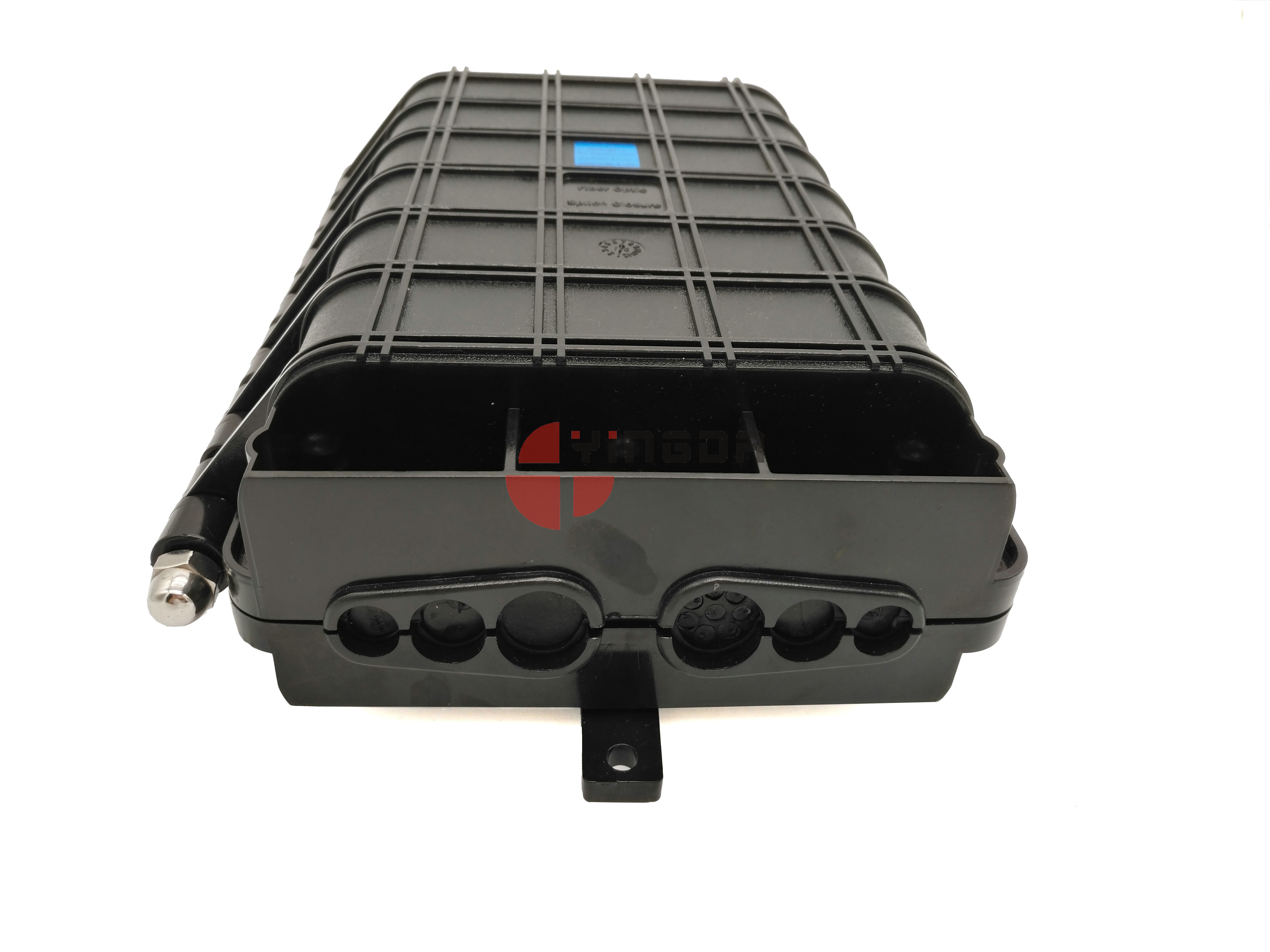

side is 8 port for ftth drop cable 2*3mm, and good for optical splitter distribution;



Straight Through Fiber Cable Joint Box  6 Ports 295 * 202 * 81mm Dimension 6Straight Through Fiber Cable Joint Box  6 Ports 295 * 202 * 81mm Dimension 7

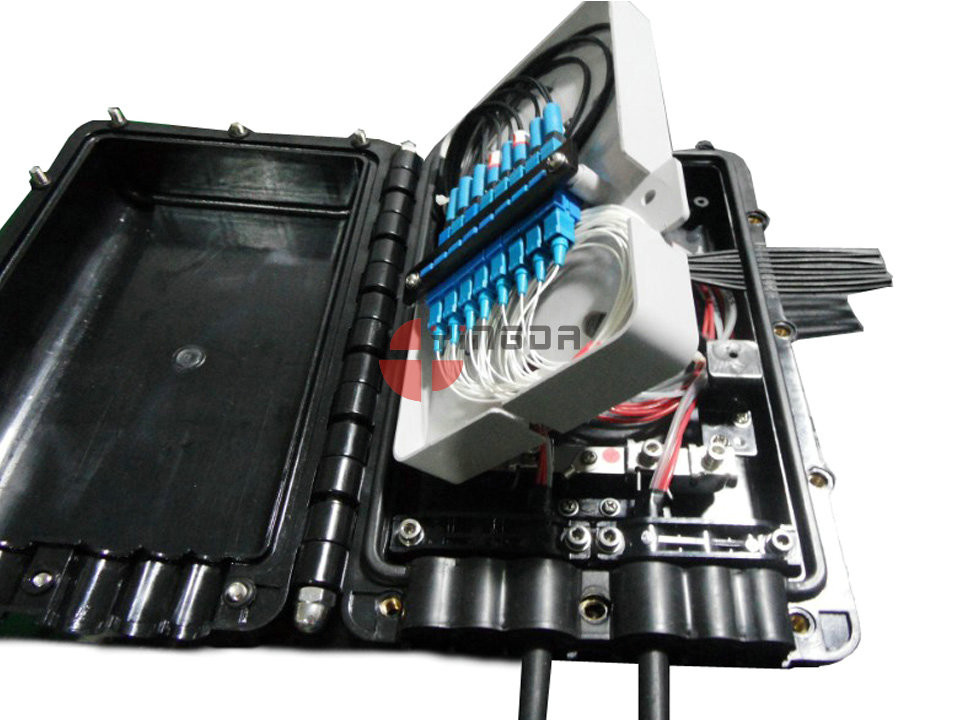

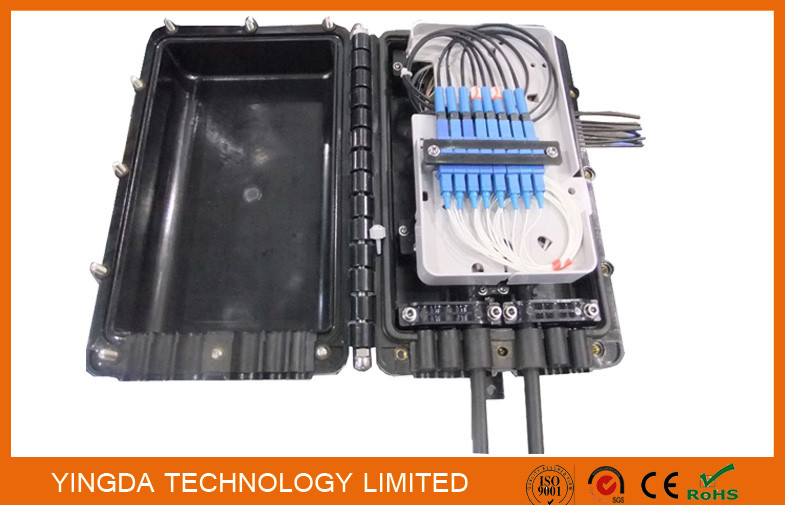

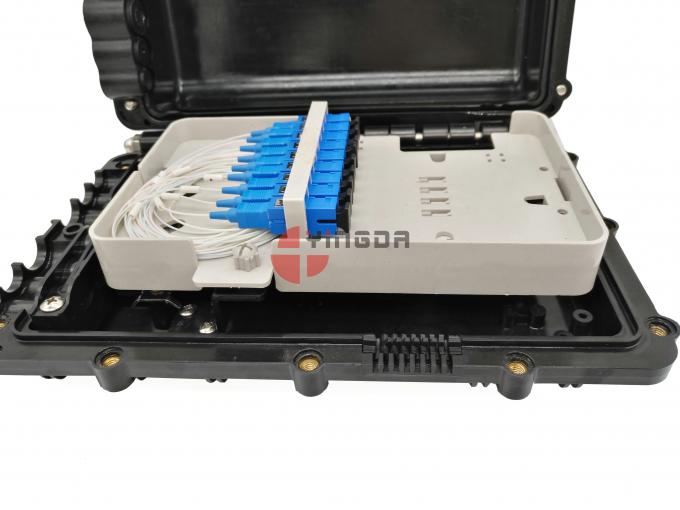

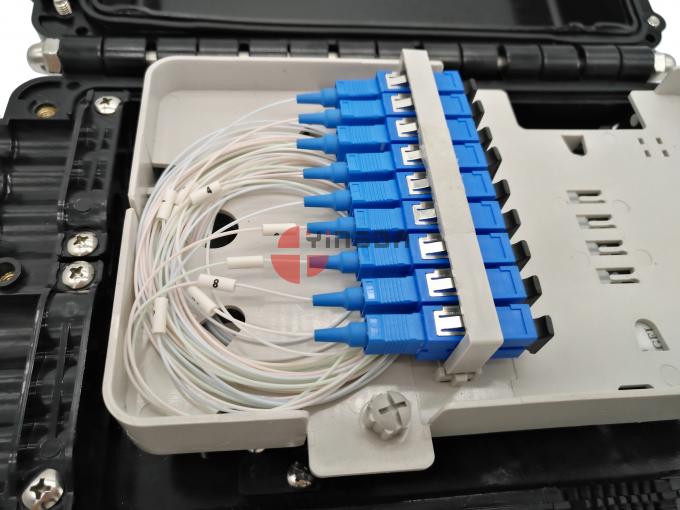

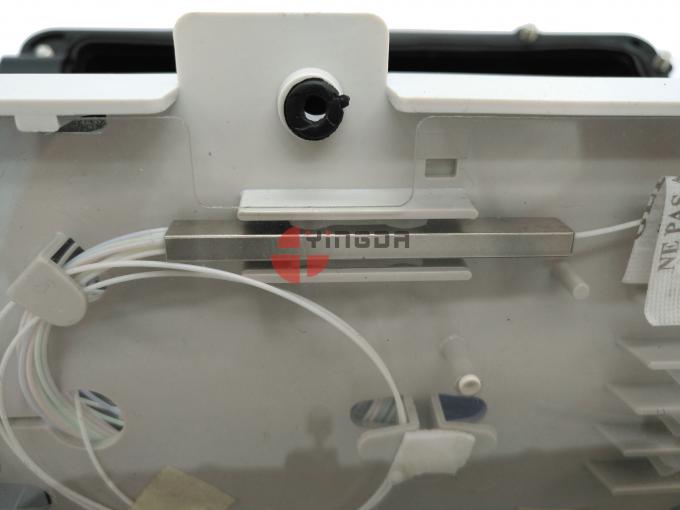

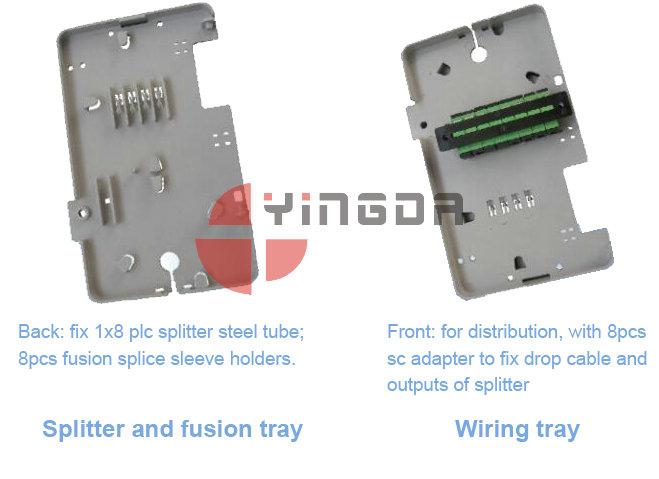

splitter tube is fix on the back of the tray. the tray top is the adapter plate, max. 9 pcs SC adapters



Straight Through Fiber Cable Joint Box  6 Ports 295 * 202 * 81mm Dimension 8Straight Through Fiber Cable Joint Box  6 Ports 295 * 202 * 81mm Dimension 9

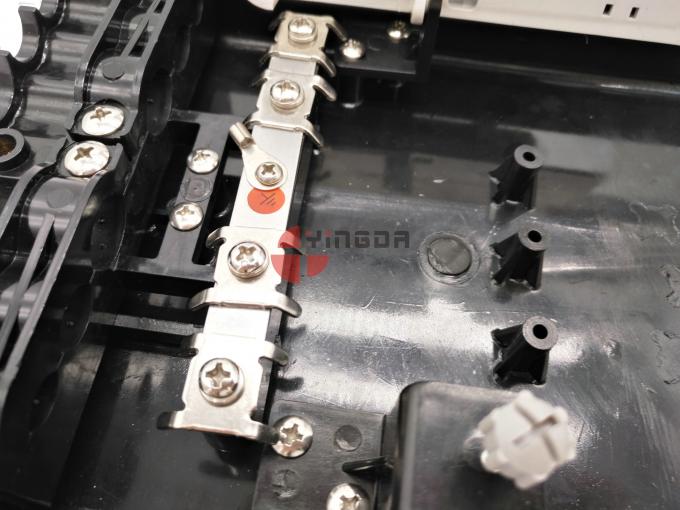

the cable entry and exit is with stainless steel rods, and grouding wire device; outputs can use drop cable rubber holes, drop cable can go in and out there too.





Straight Through Fiber Cable Joint Box  6 Ports 295 * 202 * 81mm Dimension 10Straight Through Fiber Cable Joint Box  6 Ports 295 * 202 * 81mm Dimension 11

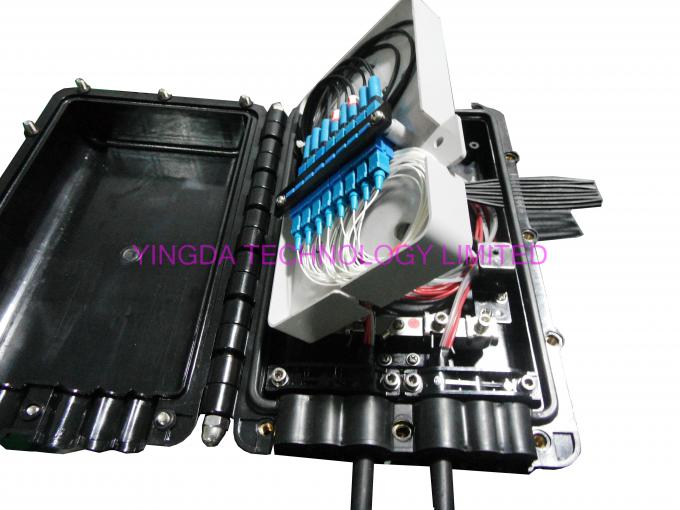

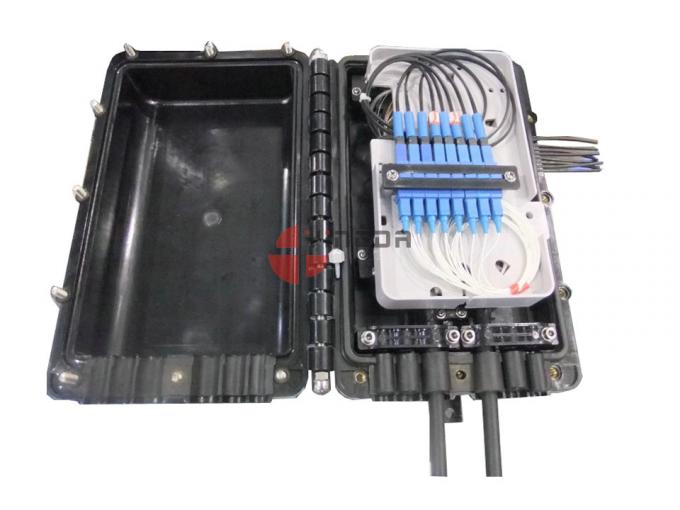

  • inline fiber optic splicing splitter box with 1x8 PLC splitte SC/UPC connectors, sc fast connectors connected with FTTH drop cables
  • with rubber sealing around the box and sealing kits for cable ports, so as to make is suitable for outdoor harsh enviornment, dustproof, waterproof
  • 1x english user manual is inside udner the splice tray for splitting.
  • The tray is fixed on the box with hand-use plastic screws, no need to use speical tool to take off the tray.

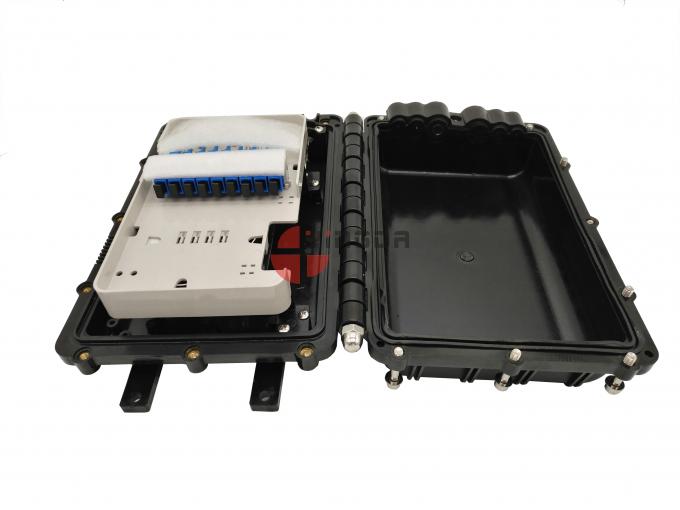

  • The splice tray speciallly deisgned can be taken off by hand. upward is the adapter panel for distribution, the backward is for cable splitting with micro optical plc splitter and reduandant fibers storage.
  • There is speical place for fix the PLC splitter tube, and clip it at the back of the splice tray.
  •  stick the splitter input cable and sc connectors on this side to keep it safe, when installation, please take carefully so as not to make the fiber broken.

Cable structure

Straight Through Fiber Cable Joint Box  6 Ports 295 * 202 * 81mm Dimension 12

Features

  • Advanced internal structure design.
  • Easy to re-enter, it never requires re-entry tool it.
  • The closure is spacious enough for winding and storing fibers.
  • Fiber Optic Splice Trays (FOSTs) are design in SLIDE-IN-LOCK and its opening angle is about 90°.
  • The curved diameter meets with international standard.
  • Easy and fast to increase and reduce FOSTs.
  • Straight-through for uncutting and branching for cutting the fiber.
  • There are 2*3 drop cable elements to be chosen Max. 16 pcs drop cable input/output.
  • It can be installed Max. one 1:8 blockless PLC splitter.
  • Lay adapters suit for FTTH and easy to operate.



Applications

  • Suitable for bunchy fibers
  • Aerial, underground, wall-mounting, hand hole-mounting, pole-mounting and duct-mounting
  • It’s especially applicable to FTTH optical fiber distribution

Straight Through Fiber Cable Joint Box  6 Ports 295 * 202 * 81mm Dimension 13

Straight Through Fiber Cable Joint Box  6 Ports 295 * 202 * 81mm Dimension 14
