IP65 Pre-terminated Mini Sc Adapter Terminal Box Ftth Fiber Optic Splitter Box 16 Cores Cajas Nap For FTTH Solution

The fiber splitter box is suitable for fiber terminal point to complete connection, distribution and scheduling between perimeter fiber cables and terminal equipment, especially suitable for mini-network terminal distribution. it is widely applied in FTTH indoor and outdoor terminal applications.

FDB0216R is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features

Box is with key + 2brackets, cable entry can be waterproof gland or uncut port

FTTH outdoor wall mount or pole mount

Box with waterproof circle, protection class IP65

High quality ABS+PC plastic, all metal parts stainless steel

Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance

2splice tray with transparent cover, each tray can fusion 8cores with 1 steel tube fix slot. 1x16 splitter tube can be choose

Cable clamp and fixture for entry and exit, and large redundant fiber storage space, reasonable bend radius

Output is Huawei Opti-tap SC adapter, with number mark to distinguish each easily.

Laser mark, customer logo or cable port indication can be print on lid

Application

• FTTH access network
• Telecommunication network
• CATV networks
• Data communications network
• Local area networks

Products photos:

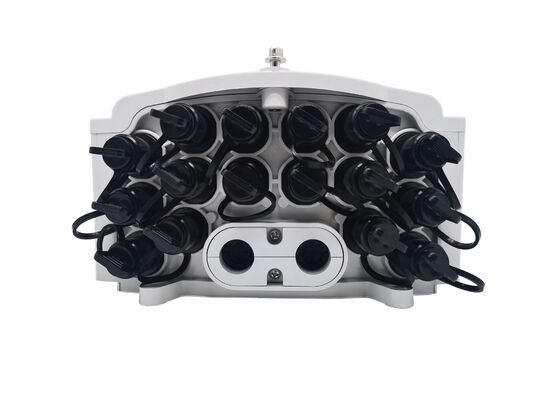

The Caja Nap box  with key and 2*buckles, round shape at back, light weight, compact size;

2inlet ports, 16pcs outlet ports for normal cables or drop cables.

2 splice tray with cover, each tray 12pcs,bottom for 2pcs 1X8 and 1pc 1x16 steel tube PLC splitter fixting, top for max. 24cores fusion;

Connecting two types fiber cable flat drop cable 2*5mm and round distribution cable 5mm Round Distribution Cable 5mm

Type 1: Huawei Opti-Tap Mini SC Adapter + Flat Drop Cable 2*5mm

Type 2: Huawei Opti-Tap Mini SC Adapter + Round Distribution Cable 5mm

Specification

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Standard Accessory

expansion screws, metal key, nylon tie, sleeve, buffer tube
