Performance Armored Fiber Optic Patch Cord 1core 2cores With SC LC Connector

MOQ: 10pcs
Price: 0.36USD-30USD
Standard Packaging: 1pc/bag
Delivery Period: 5-7 working days
Payment Method: TT 100%
Supply Capacity: 10000per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YINGDA
Certification
ISO
Features:
High Performance In IL&RL
Cable Material:
LSZH
Waterproof Connector:
NSN, ODVA, Optional
Fiber Count:
Simplex/Duplex
Manufacturer:
Yes
Connector:
SC APC
Products Name:
Fiber Optic Patch Cord
Cable Jacket:
Black LSZH
Product Name:
Fiber Cable,fiber Optic Patch Cables,fiber Optics Patch Cords,fiber Optic Jumpers,fiber Optic Jumper Cables,fiber Optik Patch Cord
Highlight:

2cores Armored Fiber Optic Patch Cord

,

1core Armored Fiber Optic Patch Cord

Product Description

Product Description:

The armored fiber optic cable which can be freely used like electrical wire, this item is protected by flexible stainless steel tube. Compare with the regular fiber cable,it have advantage performance of High compression & impact resistance,anti-bug. With fixed standard 3mm fiber optic connector,it widely used in various terrible environment.



Features:

  • Good mechanical and environmental characteristics;
  • Soft, flexible, solid, easy to splice, especially applied to optical long-distance, field, building wiring, trunking connectors;
  • Flame retardant characteristics and the meet the requirements of relevant standards;
  • Can be use for all kinds of optical connectors SC LC ST FC etc;
  • Single mode fiber, multimode fiber both ok;
  • Widely used in optical communication equipment rooms and optical distribution frames.


Technical Parameters:

Connector SC/LC/ST
Operating wavelength 1260-1650nm
Fiber type G652D, G657A1
Cable jacket LSZH, PVC
Cable type Simplex Φ3mm
Polish manner PC(8°)
Cable color Yellow, white, blue
Fiber radius of curvature ≥ 30 mm (G.652D); ≥ 15 mm (G.657A1)
Insertion Loss ≤ 0.3dB (Standard)
Return Loss APC ≥ 60dB (typ.65dB)--Single mode
Repeat ability ±0.1dB
Operating temperature -40 ° C to 85 ° C


Single Fiber Armored Indoor Cable Specification

Out Diameter Tight buffer
Diameter		 Weight Minimum allowable Tensile Strength
(N)		 minimum allowable Crush Load
(N/100mm)		 Minimum Bending Radius
(MM)		 Storage
temperature
(MM) (MM) (KG) short term long term short term long term short term long term (℃)
2.8 0.6 18.00 1000 300 1000 500 20D 10D -20+60
3.0 0.6 18.00 1000 300 1000 500 20D 10D -20+60


Customization:

Suport LC SC ST FC connector

Support customization by your requirement

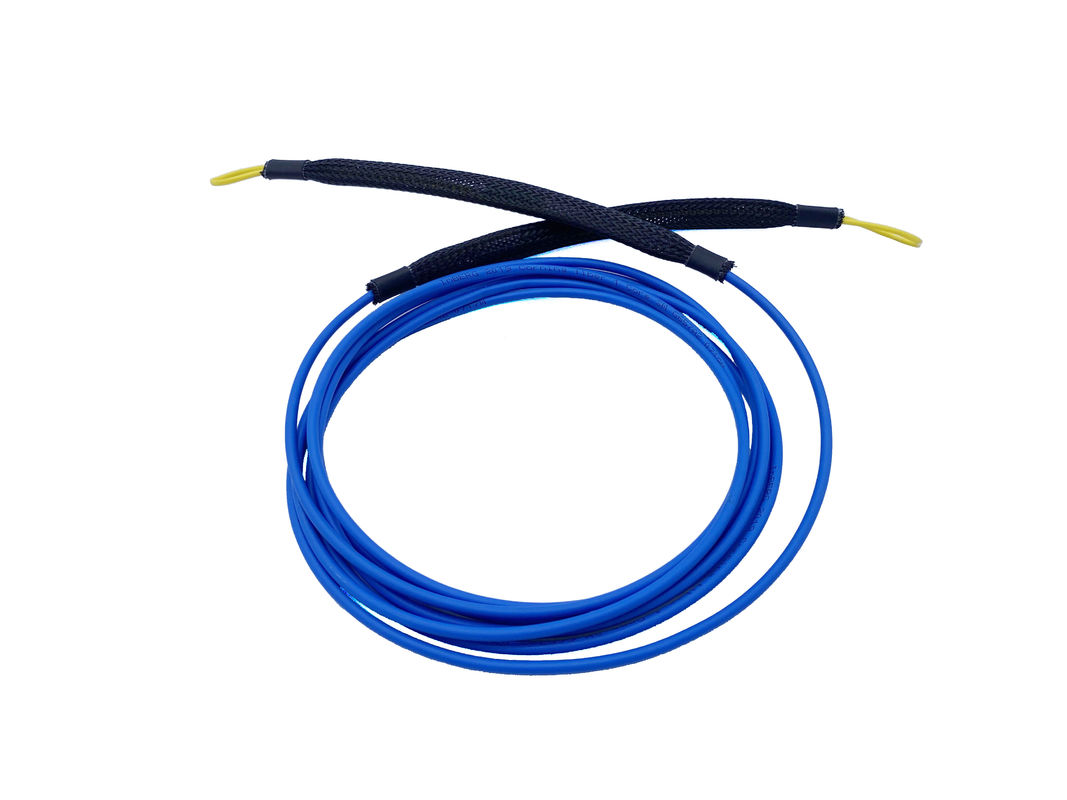

Performance Armored Fiber Optic Patch Cord 1core 2cores With SC LC Connector 0

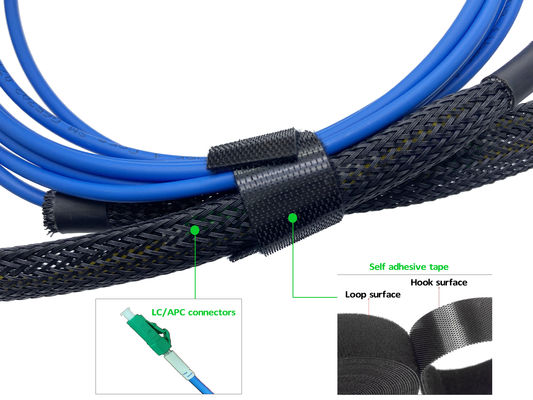

Performance Armored Fiber Optic Patch Cord 1core 2cores With SC LC Connector 1

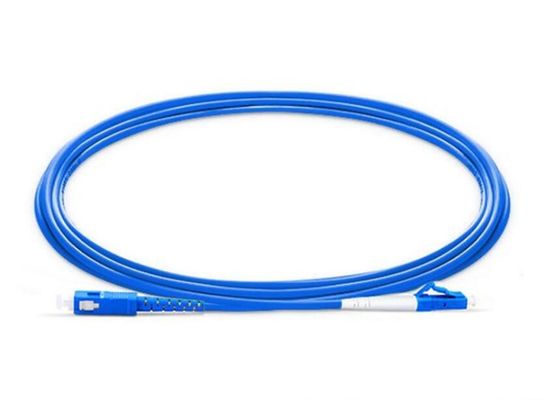

Performance Armored Fiber Optic Patch Cord 1core 2cores With SC LC Connector 2



Wide application:

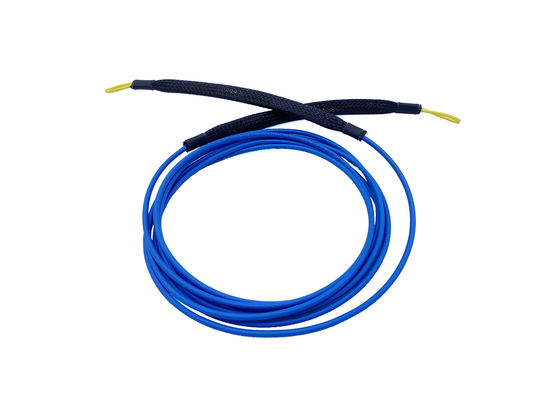

Performance Armored Fiber Optic Patch Cord 1core 2cores With SC LC Connector 3
