Fast Connector SC APC IL 0.3dB With Pusher Fiber Optic Fast Quick Connector For 3mm Round Ftth Drop Cable

MOQ: 10000pc
Price: 0.19USD-0.4USD
Standard Packaging: 10pc / blister box
Delivery Period: 7 working days
Payment Method: T/T,Western Union
Supply Capacity: 1000000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
ESC925T-P
Price:
0.20-0.35USD
Length:
53.5mm（without Soft Tail）
Insertion Loss:
<0.3dB Average, Max. 0.5dB
Return Loss:
>50dB
Ferrule Type:
Apc
Spare Parts:
Length Fix Tool, User Manual
Applicable:
Fiber To The Home, FTTH
Cable Applicable:
2.0*3.0mm Drop Cable, 0.9mm,2.0mm,3.0mm Round Cable
Tools Needed:
Fiber Cleaver, Cable Stripper, Alcohol Cloth, Miller Plier
Operation Time:
About 15S
Highlight:

SC APC fiber optic connector

,

FTTH drop cable connector

,

field installable fast connector

Product Description

Fast Connector SC APC IL 0.3dB With Pusher Fiber Optic Fast Quick Connector For 3mm Round Ftth Drop Cable


Specification:


ESC925T-P Fast Connector Specification
Mode
SM

MM
Polish
UPC
APC
PC
Insertion Loss
Typical ≤0.3dB
Maximum ≤0.5dB
≤0.25dB
Return Loss
≥50dB
≥45dB
≥35dB
Interchangeability
≤0.2dB
Repeatability
≤0.1dB
Durability
≤0.2dB (1000 times mating)
Tensile Strengh
> 10kg
Temperature
≤0.2dB (-40+85 sustain 100 hours)
Humidity
≤0.2dB (+25+65 93 R.H.100 hours)



Feature:

  • Factory-installed fiber stub, no epoxy and polishing required, inside with index-matching gel
  • Product Length: 53.5mm(without soft tail)
  • Cable: Mainly Suitable for 3.0*2.0mm Drop Cable, Ф 3.0mm, Ф 2.0mm Round Cable, Compatible with 2.0*1.6mm Drop Cable, Ф 0.9mm Round Cable
  • Fiber: G657A1, G657A2, G657B3, Fiber Diameter 125μm, Coating Diameter 250μm & 900μm
  • Operating Temperature: -25℃～+75℃
  • Easy and fast installation, 30 seconds to learn install, 90 seconds to operate in the field
  • No need of polishing or adhesive, ceramic ferrule with embedded fiber stub is pre-polished
  • Fiber aligned in v-groove through the ceramic ferrule
  • Low-volatile reliable matching liquid preserved by side cover
  • Unique bell-shaped boot maintains the mini fiber bend radius


Application:


1.Used to open the FTTH fiber terminal end.
2.Fiber Optic Distribution Frame, Patch Panel, ONU
3.In the box, cabinet, such as wiring into the box.
4.Maintenance or emergency restoration of fiber network
5.The construction of the fiber end user access and maintenance.
6.Optical fiber access of mobile base station.
7.For FTTH Drop Cable

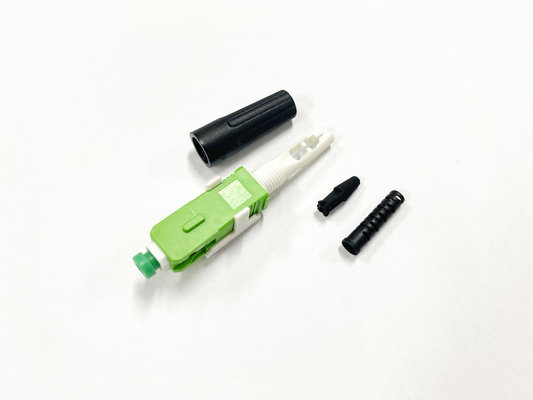

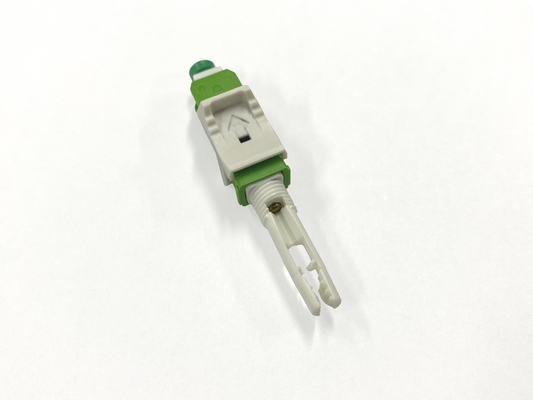

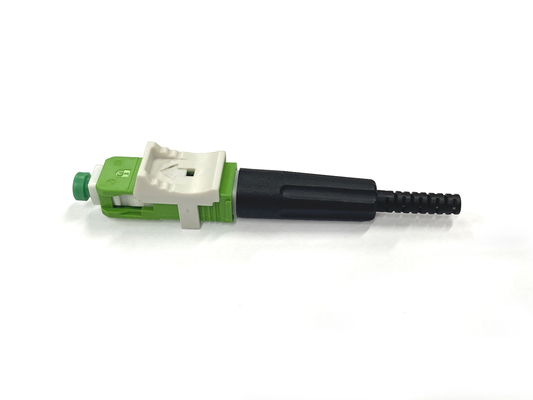

More detail pictures:

Fast Connector SC APC IL 0.3dB With Pusher Fiber Optic Fast Quick Connector For 3mm Round Ftth Drop Cable 0Fast Connector SC APC IL 0.3dB With Pusher Fiber Optic Fast Quick Connector For 3mm Round Ftth Drop Cable 1

Fast Connector SC APC IL 0.3dB With Pusher Fiber Optic Fast Quick Connector For 3mm Round Ftth Drop Cable 2Fast Connector SC APC IL 0.3dB With Pusher Fiber Optic Fast Quick Connector For 3mm Round Ftth Drop Cable 3
