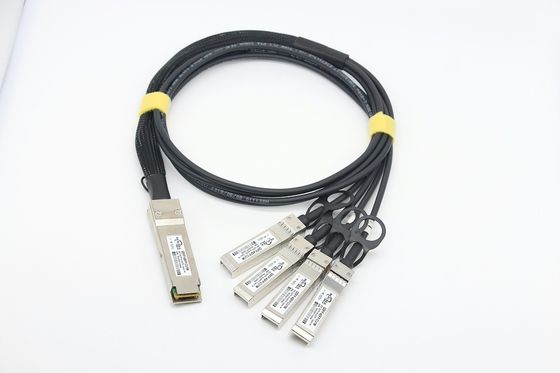

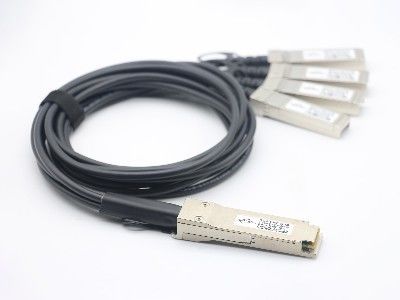

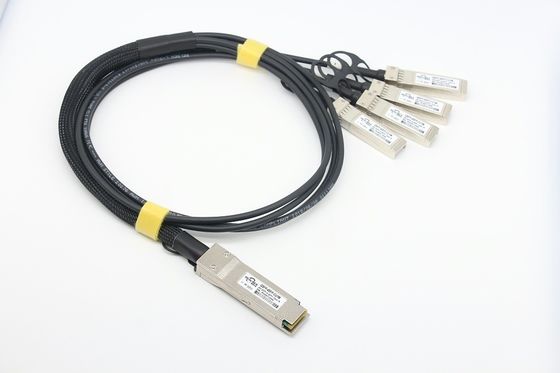

Optical Dac Cable Qsfp+ To 4x SFP+ 10g High Speed Twinax Copper Cable 5M

Name: Optical Dac Cable Qsfp+ To 4x SFP+ 10g High Speed Twinax Copper Cable 5M
Brand: YINGDA TECHNOLOGY LIMITED
SKU: QSFP+-4SFP10G-DAC
Price: 13.00 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	QSFP+-4SFP10G-DAC
MOQ:	1
Price:	US$7-20
Delivery Time:	3-7 working days
Payment Terms:	D/A,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Connector:

QSFP+ To SFP+

Operating Temperature:

0°C To 70°C

Cable Type:

30/24AWG

Compliance Standards:

RoHS/CE/FCC

Product Type:

Fiber Optic Transceivers

Type:

QSFP+ To SFP+

Data Transfer Rate:

40 Gbps

Distance:

1m 2m 3m 5m

Temp:

0~70

Supply Ability:

1000000per month

Highlight:

5M Optical Dac Cable

10g sfp+ passive direct attach copper twinax cable

High Speed Optical Dac Cable

Product Description

Description

The 40G QSFP+ to 10G SFP+ high-speed cable is applied in 40G Ethernet and 10G Ethernet LANs. This product is widely used in core routers and data center scenarios. It is 100% perfectly compatible with all series of brand switches, routers, PDH/SDH transmission equipment, EPON, GPON, WDM PON base stations and other full series of devices. The high-speed cable has advantages such as extremely high reliability, low cost and low power consumption.

Technical Parameter

Product Model	QSFP+-4SFP10G-DAC
Transmission rate	40G
Transmission distance	1-5M (optional)
Packaging form	QSFP+ to QSFP+
Cable Type	30AWG/24AWG
Brand	YINGDA
Compatible with brand	Extreme, Intel, Huawei, Cisco, HP, H3C, etc
Operating temperature	0~70℃
Warranty	3Years
Cable material	PVC
Power supply voltage	3.3V

Features

Supports hot-swappable QSFP+ form factor
4-channel full-duplex active copper transceiver
Maximum rate up to 41.25Gbps
Compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-CR4 standards
Compatible with Ethernet Fibre Channel and InfiniBand SDR/DDR/QDR standards
Connection length up to 5 meters via passive copper cable
Enhanced EMI/EMC performance
Available cable sizes from 30AWG to 24AWG
I2C-based two-wire serial interface with customizable EEPROM signature
Operating temperature: 0~70℃
RoHS 6.0 compliant

Optical Dac Cable Qsfp+ To 4x SFP+ 10g High Speed Twinax Copper Cable 5M 0

Widely Compatibility
To ensure the compatibility of our products.YINGDA products will be tested on the switch before shipment. Our modules are compatible with many
brands of switches, such as Cisco, Intel...

Optical Dac Cable Qsfp+ To 4x SFP+ 10g High Speed Twinax Copper Cable 5M 2

Wide Application

25G Ethernet

Data storage and communications industry switches/routers/hba

Enterprise Networking SAN

High Performance Computing Clusters

High-end servers

InfiniBand QDR and Base Station/ BBU/ RRU

More DAC cable for optional

			Item#
			Transmission rate
			Transmission distance
			Cable Type
			Packaging form

			SFP-10G-CUxM
			10G
			1-10M
			30/24AWG
			SFP+ to SFP+

			SFP28-25G-CUxM
			25G
			1-5M
			30/26AWG
			SFP28 to SFP28

			QSFP-40G-CUxM
			40G
			1-7M
			30/24AWG
			QSFP+ to QSFP+

			QSFP28-100G-CUxM
			100G
			1-5M
			30/26AWG
			QSFP28 to QSFP28

			QSFP-4x10G-CUxM
			40G
			1-7M
			30/24AWG
			QSFP+ to 4SFP+

			QSFP28-4x25G-CUxM
			100G
			1-5M
			30/26AWG
			QSFP28 to 4SFP28
