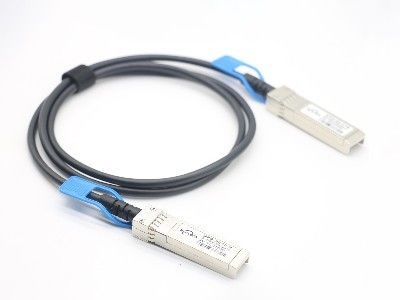

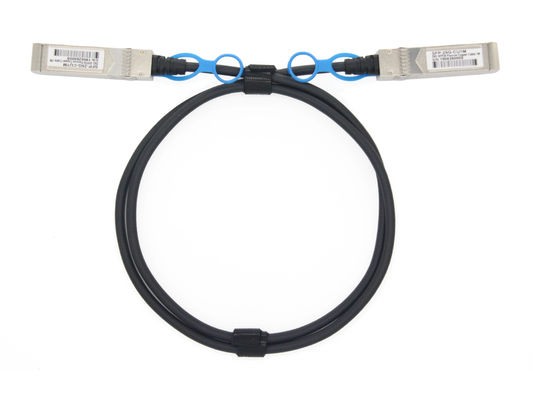

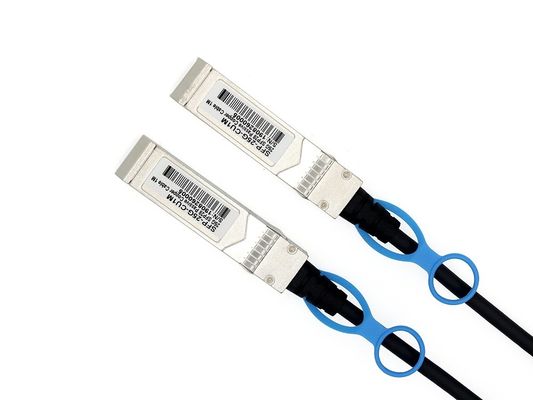

25G DAC Cable SFP28 To SFP28 Interface With Passive Copper Twinax Fiber Cable 5 Meter
  • name
  • name
  • name

25G DAC Cable SFP28 To SFP28 Interface With Passive Copper Twinax Fiber Cable 5 Meter

MOQ: 1
Price: US$7-20
Delivery Period: 3-7 working days
Payment Method: D/A,D/P,T/T
Supply Capacity: 1000000per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YINGDA
Certification
CE,ISO
Model Number
SFP H25Gb Cu5m
Connector:
SFP28 To SFP28
Operating Temperature:
0°C To 70°C
Cable Type:
30/24AWG
Compliance Standards:
RoHS/CE/FCC
Product Type:
Fiber Optic Transceivers
Type:
SFP28 To SFP28
Data Transfer Rate:
25 Gbps
Distance:
1m 2m 3m 5m
Temp:
0~70
Highlight:

SFP28 to SFP28 DAC cable

,

5 meter DAC cable

,

25G DAC cable

Product Description

Description

High-speed SFP28 Cable 25Gb DAC comply with IEEE P802.3by Ethernet standard and SFF-8402 SFP28 standard. It is a high-performance, cost-effective I/O solution for 25GB Ethernet and 25G Fiber Channel applications, which can achieve high port density, configurability and utilization at a very low cost and reduce power budget. Its transmission distance can reach 5 meters.



Technical Parameter


Product Model

SFP H25Gb Cu5m
Transmission rate 25G
Transmission distance 1-5M (optional)
Packaging form

SFP28 to SFP28
Cable Type 30AWG/24AWG
Brand YINGDA
Compatible with brand Extreme, Intel, Huawei, Cisco, HP, H3C, etc
Operating temperature 0~70℃
Warranty 3Years
Cable material PVC
Power supply voltage 3.3V



Features

  • Supports hot-swappable SFP28 form factor
  • Compliant with SFF-8431/SFF-8432
  • Compliant with SFP+ MSA and 10GSFP+Cu standards
  • Maximum rate up to 25.7815 Gbps
  • Connection length up to 5 meters via active copper cable
  • Enhanced EMI/EMC performance
  • Provide cable sizes from 30AWG to 28AWG
  • I2C-based two-wire serial interface with customizable EEPROM signature
  • Maximum power consumption 0.5W
  • Compliant with RoHS 6.0
  •  2-3 working days fast delivery if a standard products

25G DAC Cable SFP28 To SFP28 Interface With Passive Copper Twinax Fiber Cable 5 Meter 025G DAC Cable SFP28 To SFP28 Interface With Passive Copper Twinax Fiber Cable 5 Meter 1


Widely  Compatibility
To ensure the compatibility of our products.YINGDA products will be tested on the switch before shipment. Our modules are compatible with many
brands of switches, such as Cisco,  Intel...

25G DAC Cable SFP28 To SFP28 Interface With Passive Copper Twinax Fiber Cable 5 Meter 2


Wide Application


25G Ethernet
Data storage and communications industry switches/routers/hba
Enterprise Networking SAN
High Performance Computing Clusters
High-end servers
InfiniBand QDR and Base Station/ BBU/ RRU




More DAC cable for optional

Item# Transmission rate Transmission distance Cable Type Packaging form
SFP-10G-CUxM 10G 1-10M 30/24AWG SFP+ to SFP+
SFP28-25G-CUxM 25G 1-5M 30/26AWG SFP28 to SFP28
QSFP-40G-CUxM 40G 1-7M 30/24AWG QSFP+ to QSFP+
QSFP28-100G-CUxM 100G 1-5M 30/26AWG QSFP28 to QSFP28
QSFP-4x10G-CUxM 40G 1-7M 30/24AWG QSFP+ to 4SFP+
QSFP28-4x25G-CUxM 100G 1-5M 30/26AWG QSFP28 to 4SFP28
