DAC Cable
Created with Pixso. 1M Compatible 800G OSFP Finned Top to 2 x 400G OSFP Flat Top Ethernet Passive Direct Attach Copper Breakout Cable

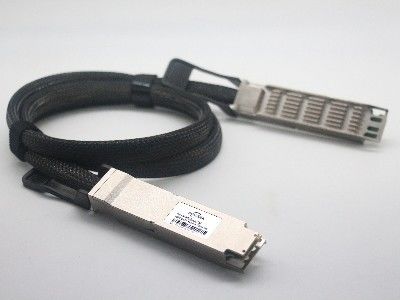

1M Compatible 800G OSFP Finned Top to 2 x 400G OSFP Flat Top Ethernet Passive Direct Attach Copper Breakout Cable

Brand Name: YINGDA
Model Number: OSFP-800G-DAC
MOQ: 1
Price: US$7-20
Delivery Time: 3-7 working days
Payment Terms: D/A,D/P,T/T
Detail Information
Place of Origin:
China
Certification:
CE,ISO
Connector:
OSFP To OSFP
Operating Temperature:
0°C To 70°C
Cable Type:
30/24AWG
Compliance Standards:
RoHS/CE/FCC
Product Type:
Fiber Optic Transceivers
Data Transfer Rate:
800 Gbps
Distance:
1m 2m 3m
Temp:
0~70
Supply Ability:
1000000per month
Highlight:

800G OSFP DAC Breakout Cable

,

Direct Attach Copper Breakout Cable

,

2 x 400G OSFP DAC Breakout Cable

Product Description

Description



800G OSFP112 passive direct-attach copper twinax cable is designed for 800GBASE Ethernet.  It provides a high-speed connection of an 800G OSFP port on one end and two 400G OSFP ports on the other end. Each end contains EEPROM coding that offers product identification and characteristics to the host system. It is power-efficient and suitable for cost-effective close-range interconnections within the equipment room of telecom operators or data centers, etc.



  • Max. Power Consumption 0.1W
  • Minimum Bend Radius 72mm for Flexible Routing
  • Support 2x 400G Breakout for Higher Port Density
  • Simplifies Patching and Offers a Cost-effective Way for Short Links
  • Hot Pluggable OSFP MSA Compliant
  • Low Insertion Loss and Ultra-low Crosstalk for Improved Performance
  • High-Speed Connectivity Compliant to IEEE 802.3ck and CMIS v4.0









Technical Parameter



Product Model OSFP800G-2X400G-DAC
Transmission rate 800G
Transmission distance 1-2M (optional)
Packaging form

OSFP to 2*QSFP112



Cable Type 30AWG/24AWG
Brand YINGDA
Compatible with brand Extreme, Intel, Huawei, Cisco, HP, H3C, etc
Operating temperature 0~70℃
Warranty 3Years
Cable material PVC
Power supply voltage 3.3V

Power Consumption

<0.1W







Features



  • The product complies with SFF-8636, OSFP_MSA
  • Ethernet-compliant with IEEE802.3ck
  • Supports 112G (PAM4) electrical data rate/channel
  • Supports I2C two-wire serial interface, easy to control
  • Hot plug support
  • Low crosstalk/low power consumption
  • Maximum link length: 2m
  • Complies with ROHS standards







Widely  Compatibility


To ensure the compatibility of our products.YINGDA products will be tested on the switch before shipment. Our modules are compatible with many brands of switches, such as Cisco,  Intel...

1M Compatible 800G OSFP Finned Top to 2 x 400G OSFP Flat Top Ethernet Passive Direct Attach Copper Breakout Cable 0



Wide Application



25G Ethernet
Data storage and communications industry switches/routers/hba
Enterprise Networking SAN
High Performance Computing Clusters
High-end servers
InfiniBand QDR and Base Station/ BBU/ RRU







More DAC cable for optional

Item# Transmission rate Transmission distance Cable Type Packaging form
SFP-10G-CUxM 10G 1-10M 30/24AWG SFP+ to SFP+
SFP28-25G-CUxM 25G 1-5M 30/26AWG SFP28 to SFP28
QSFP-40G-CUxM 40G 1-7M 30/24AWG QSFP+ to QSFP+
QSFP28-100G-CUxM 100G 1-5M 30/26AWG QSFP28 to QSFP28
QSFP-4x10G-CUxM 40G 1-7M 30/24AWG QSFP+ to 4SFP+
QSFP28-4x25G-CUxM 100G 1-5M 30/26AWG QSFP28 to 4SFP28
