400G QSFP112 Passive Direct Attach Copper Twinax Cable 2M Distance 1m 2m 3m Compliance Standards RoHS/CE/FCC
  • name
  • name

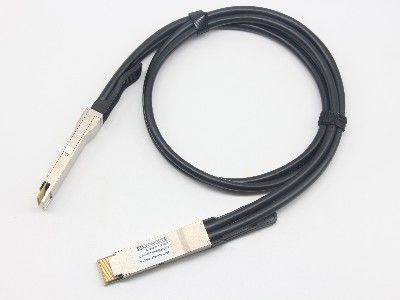

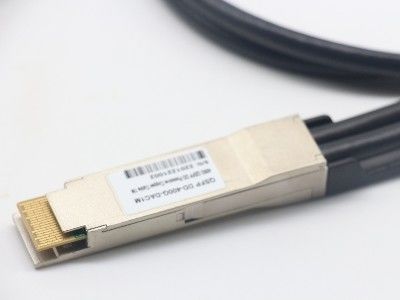

400G QSFP112 Passive Direct Attach Copper Twinax Cable 2M Distance 1m 2m 3m Compliance Standards RoHS/CE/FCC

MOQ: 1
Price: US$7-20
Delivery Period: 3-7 working days
Payment Method: D/A,D/P,T/T
Supply Capacity: 1000000per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YINGDA
Certification
CE,ISO
Model Number
QSFP-DD-400G-DAC
Connector:
QSFP-DD To QSFP-DD
Operating Temperature:
0°C To 70°C
Cable Type:
30/24AWG
Compliance Standards:
RoHS/CE/FCC
Product Type:
Fiber Optic Transceivers
Data Transfer Rate:
400 Gbps
Distance:
1m 2m 3m
Temp:
0~70
Highlight:

passive direct attach copper twinax cable

,

400G QSFP112 DAC Twinax Cable

,

DAC Twinax Cable 2m

Product Description

Description



400G QSFP DD is high speed parallel copper direct attach cable for storage, data center, and high performance computing connectivity. the aggregate data rate of 400Gbps over 2 meters transmission can be achieved with this product. FS currently offers 400G QSFP112 DAC in lengths of 0.5, 1, and 1.5 meters, ideal for SDN, ML, and Cloud Computing.



  • Max.power consumption 0.1W Per End, has near Zero-latency delays.
  • Simplified patching and offers a cost effective way for short links CMIS5.0 compliant
  • Hot pluggable QSFP112 MSA Compliant
  • Minimum bend radius 46mm for Flexible routing







Technical Parameter



Product Model QSFP-DD-400G-DAC
Transmission rate 400G
Transmission distance 1-3 (optional)
Packaging form

QSFP112 to QSFP112


Cable Type 30AWG/24AWG
Brand YINGDA
Compatible with brand Extreme, Intel, Huawei, Cisco, HP, H3C, etc
Operating temperature 0~70℃
Warranty 3Years
Cable material PVC
Power supply voltage 3.3V

Power Consumption

 ＜0.1W





Features

  • Supports hot-swappable QSFP-DD packages
  • Complies with QSFP112,SFF-8636, and SFF-8402 standards
  • Maximum rate up to 400 Gbps
  • Complies with IEEE 802.3bj 100GBASE-CR4 and 802.3by 25GBASE-CR standards
  • Cable length can be customized within 5 meters
  • Low insertion loss and low crosstalk, etc.
  • Operating temperature: 0 – 70℃
  • Power supply voltage: 3.3V
  • Complies with RoHS 6.0

400G QSFP112 Passive Direct Attach Copper Twinax Cable 2M Distance 1m 2m 3m Compliance Standards RoHS/CE/FCC 0400G QSFP112 Passive Direct Attach Copper Twinax Cable 2M Distance 1m 2m 3m Compliance Standards RoHS/CE/FCC 1







Widely  Compatibility


To ensure the compatibility of our products.YINGDA products will be tested on the switch before shipment. Our modules are compatible with many brands of switches, such as Cisco,  Intel...

400G QSFP112 Passive Direct Attach Copper Twinax Cable 2M Distance 1m 2m 3m Compliance Standards RoHS/CE/FCC 2



Wide Application



25G Ethernet
Data storage and communications industry switches/routers/hba
Enterprise Networking SAN
High Performance Computing Clusters
High-end servers
InfiniBand QDR and Base Station/ BBU/ RRU







More DAC cable for optional

Item# Transmission rate Transmission distance Cable Type Packaging form
SFP-10G-CUxM 10G 1-10M 30/24AWG SFP+ to SFP+
SFP28-25G-CUxM 25G 1-5M 30/26AWG SFP28 to SFP28
QSFP-40G-CUxM 40G 1-7M 30/24AWG QSFP+ to QSFP+
QSFP28-100G-CUxM 100G 1-5M 30/26AWG QSFP28 to QSFP28
QSFP-4x10G-CUxM 40G 1-7M 30/24AWG QSFP+ to 4SFP+
QSFP28-4x25G-CUxM 100G 1-5M 30/26AWG QSFP28 to 4SFP28
