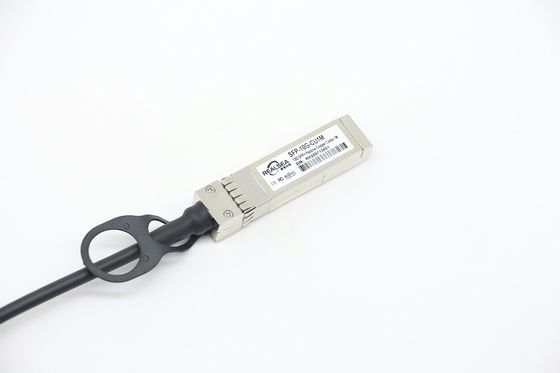

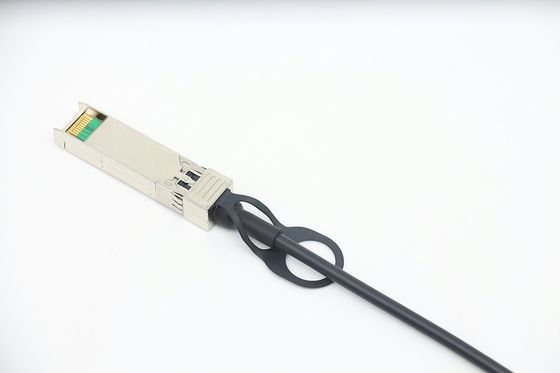

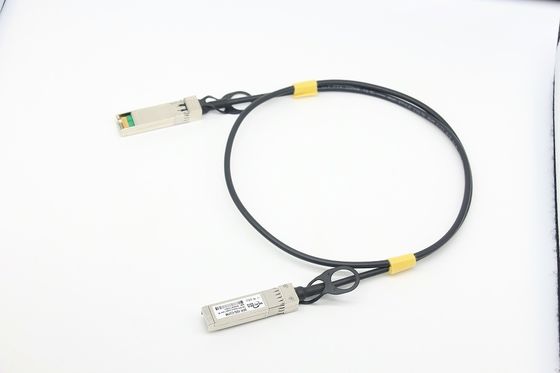

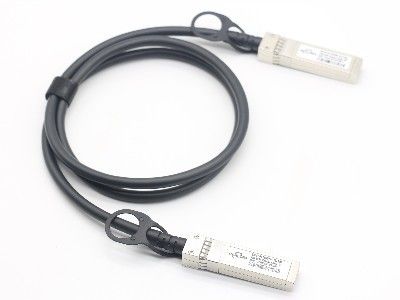

10 Gbps Data Transfer Rate DAC Cable 10G SFP+ Passive Direct Attach Copper Twinax Cable 1M

Name: 10 Gbps Data Transfer Rate DAC Cable 10G SFP+ Passive Direct Attach Copper Twinax Cable 1M
Brand: YINGDA TECHNOLOGY LIMITED
SKU: SFP-H10GB-CU1M
Price: 30.00 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	SFP-H10GB-CU1M
MOQ:	1
Price:	US$10-50
Delivery Time:	3-7 working days
Payment Terms:	D/A,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Applications:

FTTH FTTB FTTX Network

Connector:

SFP+ To SFP+

Operating Temperature:

0°C To 70°C

Cable Type:

30/24AWG

Compliance Standards:

RoHS/CE/FCC

Product Type:

Fiber Optic Transceivers

Type:

SFP+ To SFP+

Data Transfer Rate:

10 Gbps

Distance:

1m 2m 3m 5m 7m

Temp:

0~70

Supply Ability:

1000000per month

Highlight:

10G SFP+ Passive Direct Attach Copper Twinax Cable

10 Gbps DAC Cable

1M SFP+ DAC Cable

Product Description

Description

High-speed cables are suitable for short-distance transmission, and are economical and effective in establishing 100G links between 100G QSFP ports within a rack and across adjacent racks.

Each product will be tested for compatibility on a real machine and its connectivity for business transmission will be verified to ensure stable operation.

The cable offers hot-swappable capabilities for improved availability and serviceability. It complies with the industry-standard QSFP28 MSA, ensuring compatibility with a wide range of devices and systems.

Technical Parameter

Product Model	SFP-H10GB-CU1M
Transmission rate	10G
Transmission distance	1-7 (optional)
Packaging form	SFP+ to SFP+
Cable Type	30AWG/24AWG
Brand	YINGDA
Compatible with brand	Extreme, Intel, Huawei, Cisco, HP, H3C, etc
Operating temperature	0~70℃
Warranty	3Years
Cable material	PVC
Power supply voltage	3.3V

Features

Supports hot-swappable SFP+ form factor
Compliant with SFF-8431/SFF-8432
Compliant with SFP+ MSA and 10GSFP+Cu standards
Maximum rate up to 10.3125Gbps, backward compatible with 1Gbps
Connection length up to 7 meters via active copper cable
Enhanced EMI/EMC performance
Provide cable sizes from 30AWG to 24AWG
I2C-based two-wire serial interface with customizable EEPROM signature
Maximum power consumption 0.5W
Compliant with RoHS 6.0
2-3 working days fast delivery if a standard products

Widely Compatibility
To ensure the compatibility of our products.YINGDA products will be tested on the switch before shipment. Our modules are compatible with many
brands of switches, such as Cisco, Intel...

10 Gbps Data Transfer Rate DAC Cable 10G SFP+ Passive Direct Attach Copper Twinax Cable 1M 0

*Suitable for devices of the above brands with built-in SFP interfaces

Wide Application

• Switch / router / HBA / SAN, NIC card

• Servers and storage devices

• Data center network

• 4G and 8G Fiber Channel

• InfiniBand FDR/EDR

• 100Gbs Ethernet



More DAC cable for optional


Item#
Transmission rate
Transmission distance
Cable Type
Packaging form

SFP-10G-CUxM
10G
1-10M
30/24AWG
SFP+ to SFP+

SFP28-25G-CUxM
25G
1-5M
30/26AWG
SFP28 to SFP28

QSFP-40G-CUxM
40G
1-7M
30/24AWG
QSFP+ to QSFP+

QSFP28-100G-CUxM
100G
1-5M
30/26AWG
QSFP28 to QSFP28

QSFP-4x10G-CUxM
40G
1-7M
30/24AWG
QSFP+ to 4SFP+

QSFP28-4x25G-CUxM
100G
1-5M
30/26AWG
QSFP28 to 4SFP28
